DSO pocket oscilloscope V1

[Sub Woofin 10+ year member]

product:

(1) DSO pocket digital oscilloscope

specs:

Display 2.8″ Color TFT LCD

Display Resolution 320×240

Display Color 65K

Analog bandwidth 0 - 1MHz

Max sample rate 1Msps 12Bits

Sample memory depth 4096 Point

Horizontal sensitivity 1uS/Div～10S/Div (1-2-5 Step)

Horizontal position adjustable with indicator

Vertical sensitivity 10mV/Div～10V/Div (with ×1 probe)

0.5V/Div～100V/Div (with ×10 probe)

Vertical position adjustable with indicator

Input impedance >500KΩ

Max input voltage 80Vpp (by ×1 probe)

Coupling DC

Trig modes Auto, Norma, Single, None and Scan

Functionalities: Automatic measurement: frequency, cycle, duty, Vpp, Vram, Vavg and DC voltage

Precise vertical measurement with markers

Precise horizontal measurement with markers

Rising/falling edge trigger

Trig level adjustable with indicator

Trig sensitivity adjustable with indicator

Hold/run feature

Test signal Built-in 10Hz～1MHz (1-2-5 Step)

Waveform storage SD card

PC connection via USB as SD card reader

Upgrade by bootloader via USB

Power supply 3.7V Chargeable Lithium battery / USB

Dimension (w/o probe) 105mm X 53mm X 8mm

Description/Condition:

Used only twice to set gains on amplifiers. no scratches. never took off screen protector

Price:

$50 + shipping

Misc.

Paypal preferred

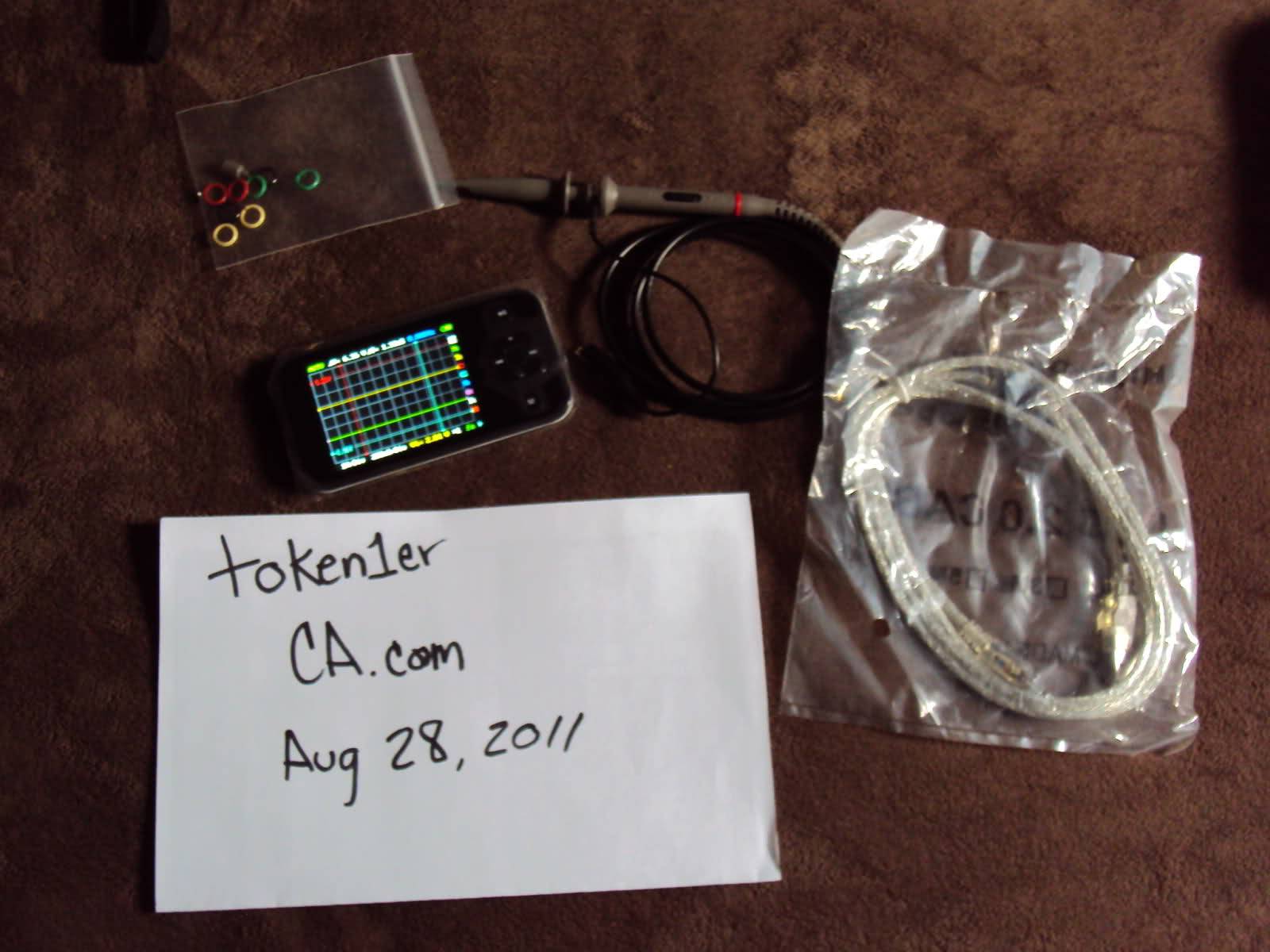

Pictures:

comes with soft padded case and instructions

Feedback:

signature

Click to read more...



[kmanian 5,000+ posts]

$45 shipped I can pp now



[Sub Woofin 10+ year member]

no thanks



[kmanian 5,000+ posts]

$45 shipped I can pp now

no thanks

Pfff, not even a counter offer. must not wanna sell very badly.

GLWS



[Sub Woofin 10+ year member]

Pfff, not even a counter offer. must not wanna sell very badly.
GLWS

zipcode plz.



[Sub Woofin 10+ year member]

Pfff, not even a counter offer. must not wanna sell very badly.
GLWS

zipcode plz. then i'll make you a counter offer



[Kangaroux 5,000+ posts]

lulz



[kmanian 5,000+ posts]

30188 for what it's worth,

small flat rate is $5

and

medium flat rate is just over $10



[Sub Woofin 10+ year member]

30188 for what it's worth,
small flat rate is $5

and

medium flat rate is just over $10

how about 50 shipped? i'll print out the shipping label tomorrow morning at work. send it to the post office after i do my 8 hours



[kmanian 5,000+ posts]

Ok



[Sub Woofin 10+ year member]

$50 shipped



[dbjunior 10+ year member]

K was first to respond to the thread ill let him take it



[Sub Woofin 10+ year member]

K was first to respond to the thread ill let him take it

he still hasnt paid up. probably went to sleep.



[kmanian 5,000+ posts]

I'm here, just honestly was buying it for sh its and giggles, but I am gonna pass, as I don't like the way you do business. no offence, but it doesnt sit well with me.

I said I would take it for the price you offered, I get no PM with payment info, and 7min later you first come first serving me.

I'll pass, thanks though



[Sub Woofin 10+ year member]

I'm here, just honestly was buying it for sh its and giggles, but I am gonna pass, as I don't like the way you do business. no offence, but it doesnt sit well with me.
I said I would take it for the price you offered, I get no PM with payment info, and 7min later you first come first serving me.

I'll pass, thanks though

sorry man, first time selling.
