Carver KLW xa 22

[Sayhello]

KLW XA22

Hello Everyone.

Is there anyone who can help me?

I search for a couple of pictures ( 2 - 3 ) from the print of the remote controle from the KLW XA 22.

I have also a KLW XA22 but no remote controle.

So if i have these pictures , mayby i can make a remote by myself....

You where very helpfull if you can.

Kind of regards from Holland

Click to read more...



[pickup1 5,000+ posts]

I will take a few before i send mine...well Daves off...give me a few....



[Sayhello]

Tnx it will really help me to make a remote. I now it's only a potentiometer and a switch........



[pickup1 5,000+ posts]

i wonder if an audio control knob would work...



[Sayhello]

A couple of mounths ago i buy a KLW XA 22. But the guy send me only the baseunit of the KLW XA 22. I send many emails to him but with no responce.

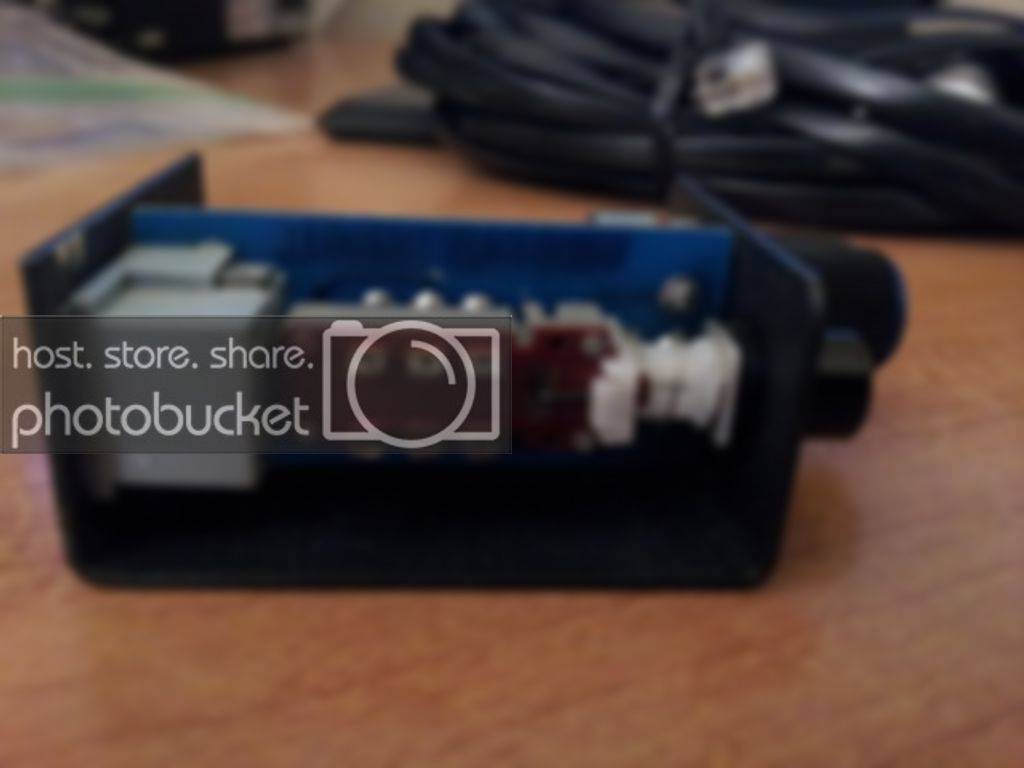

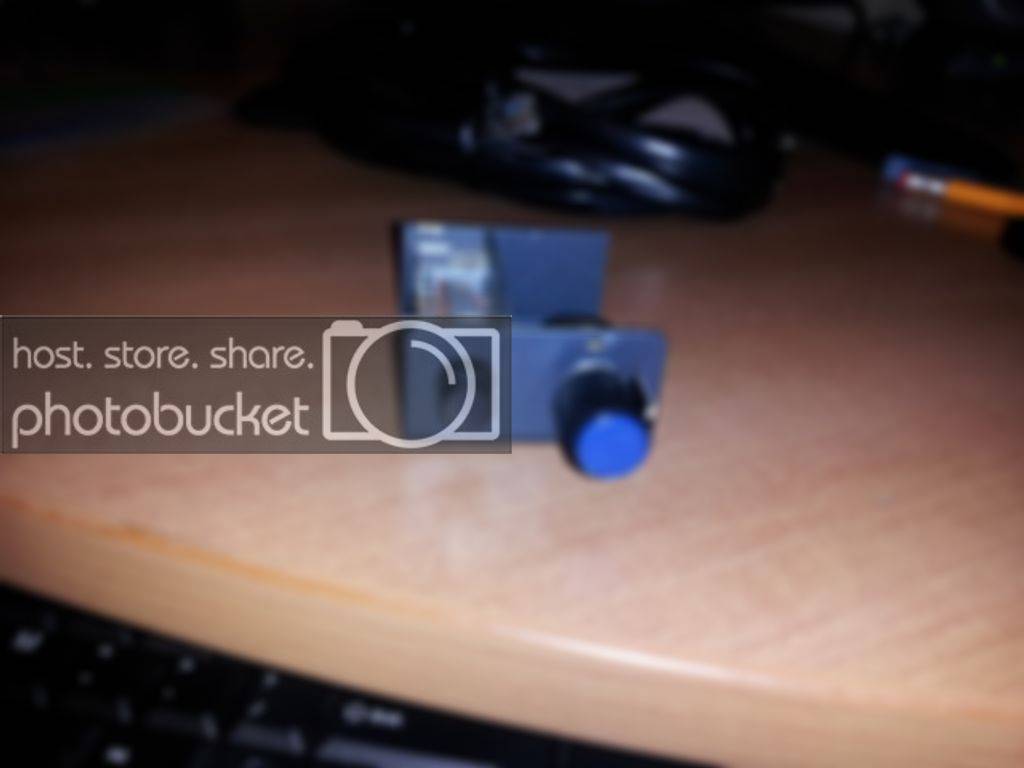

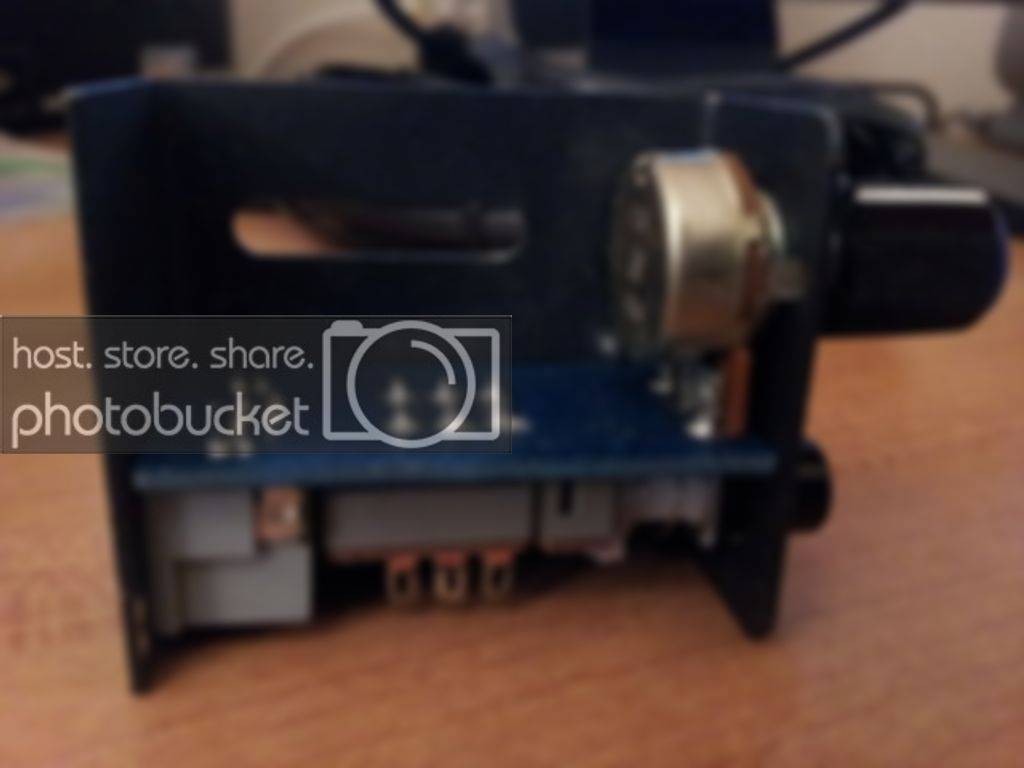

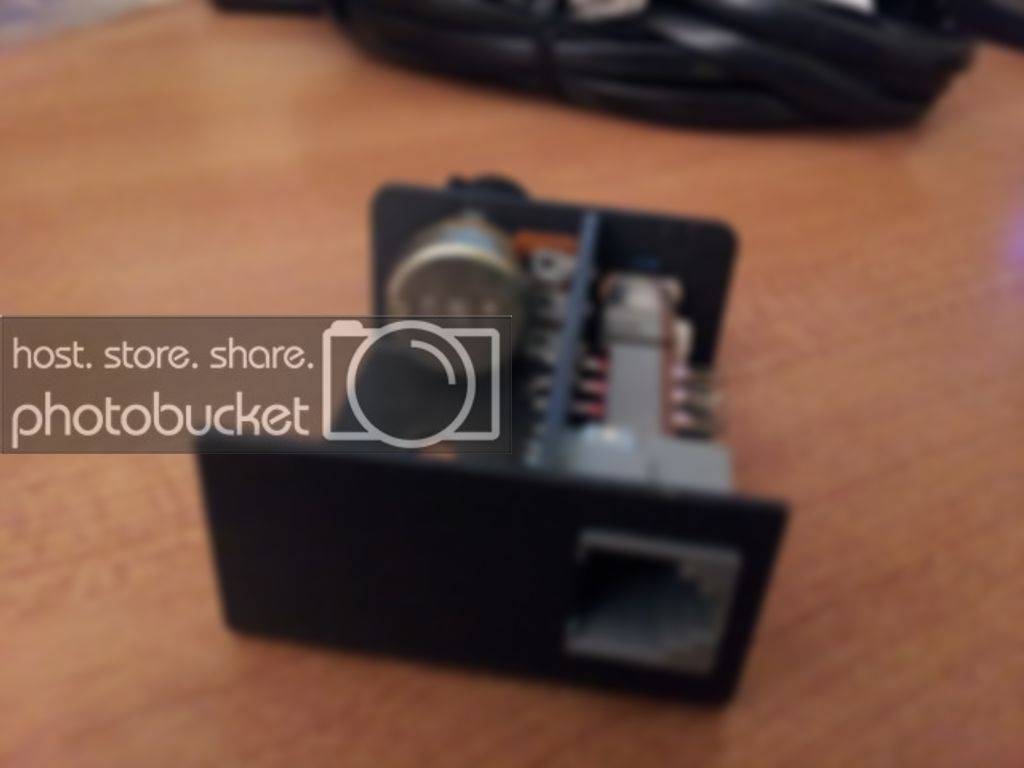

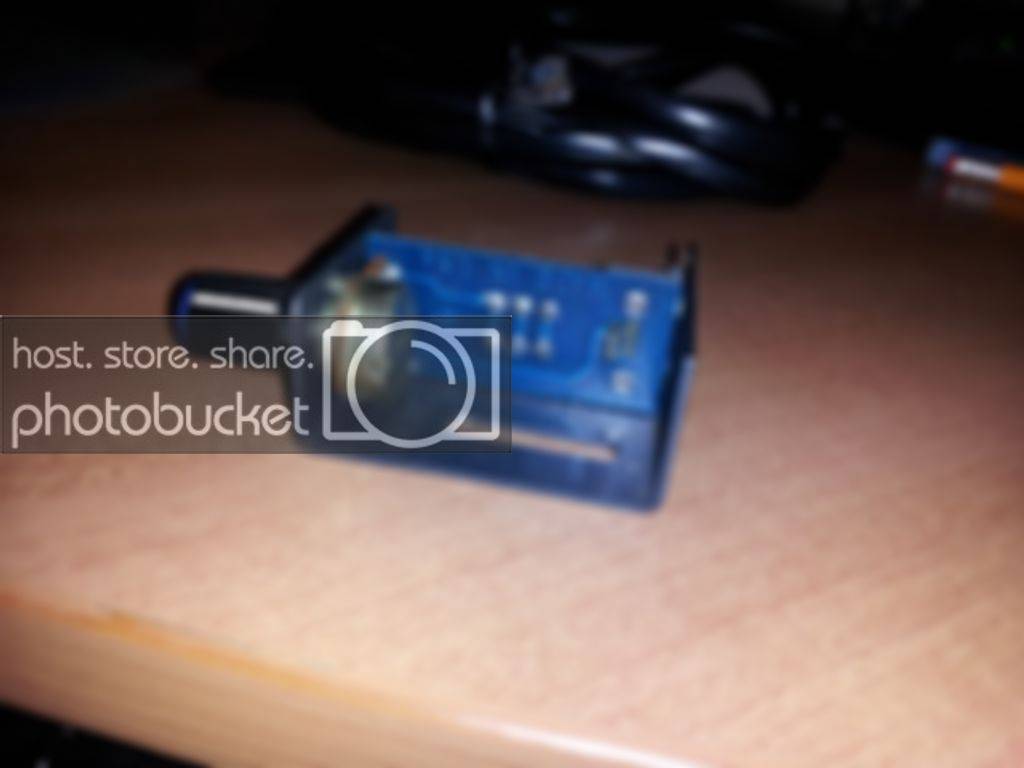

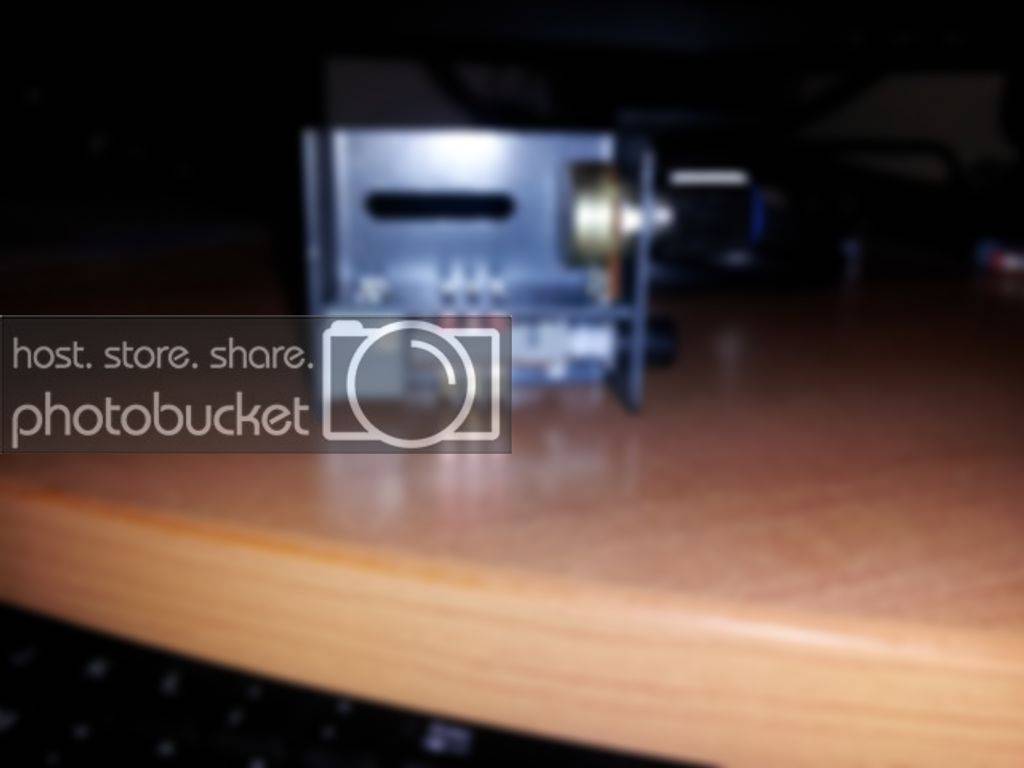

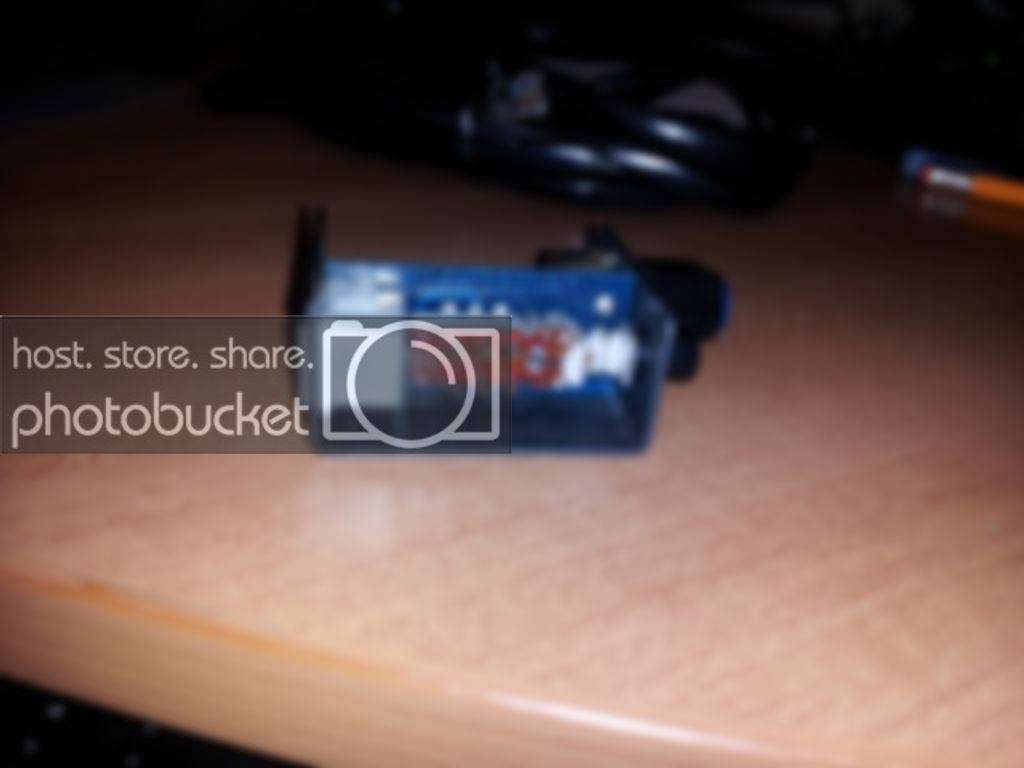

I look at the pictures on the internet from your post, so i think the remote is nothing more than a potentiometer (knob) and a switch ....... and a cable to contect both parts together...... //content.invisioncic.com/y282845/emoticons/idea.gif.5acb6a39a9b92425414c316dda202bad.gif



[pickup1 5,000+ posts]



[Sayhello]

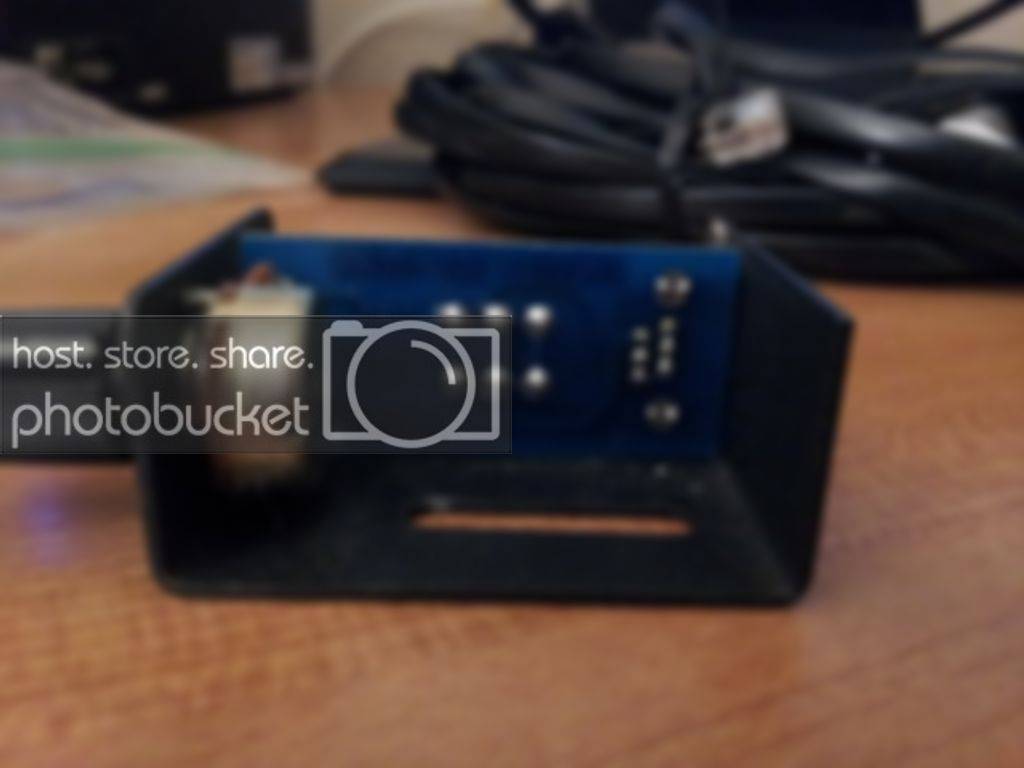

Many thanks, i will try it, Good pictures!!

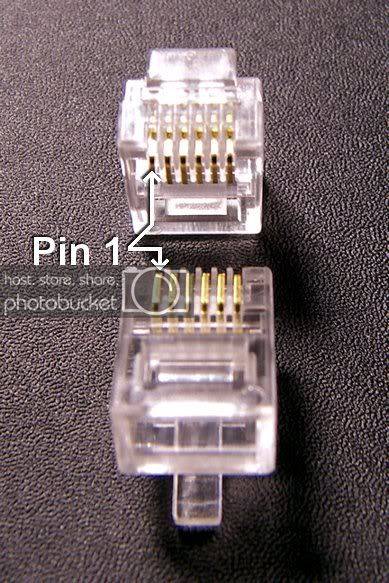

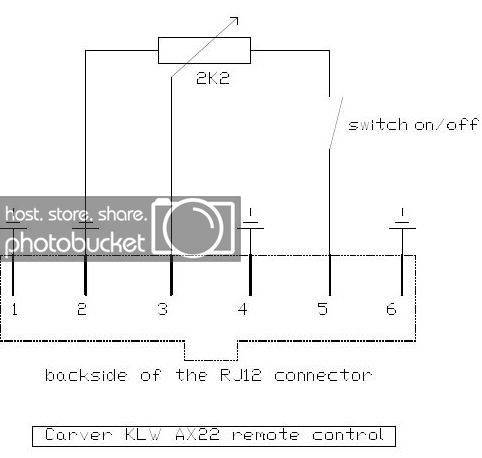

I see from rj 12 connector a wire to middle connector of potentiometer > from left connector of potentiometer to front connector of the switch. And middle connector of the switch to rj12 connector. And a potentiometer from 2K Ohm

Kind of regards, from Holland



[pickup1 5,000+ posts]

Glad i could help...



[Sayhello]

Great job, It's works. I shame to ask you if it's possible to send/post the manual also????? Strange thing is that only 1 channel works as bass resistor and 1 channel works as normal bass.

Greatingzzz



[pickup1 5,000+ posts]

the manuals shown were for the cross overs...did not come with any...



[Sayhello]

It works, there was a little problem, with a short circuit in the KLW unit.

Many thanks to Pickup 1 for the pictures.

Pickup 1 is it right that the print on the potentiometer is B2K and not 82K?

Kind of regards ......



[pickup1 5,000+ posts]

B2K

1EW

Thats what's on the back..



[Sayhello]

Okê tnx, then are the info on the schematic correct.
