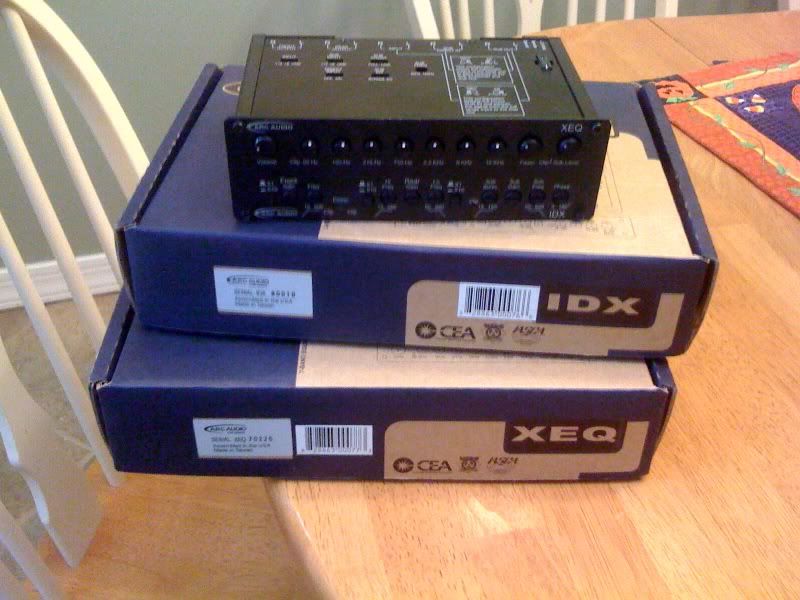

everything is brand new in the box and bought authorized.
as new condition,mounted to the combo plate...
350$ obo.
trades welcome.....

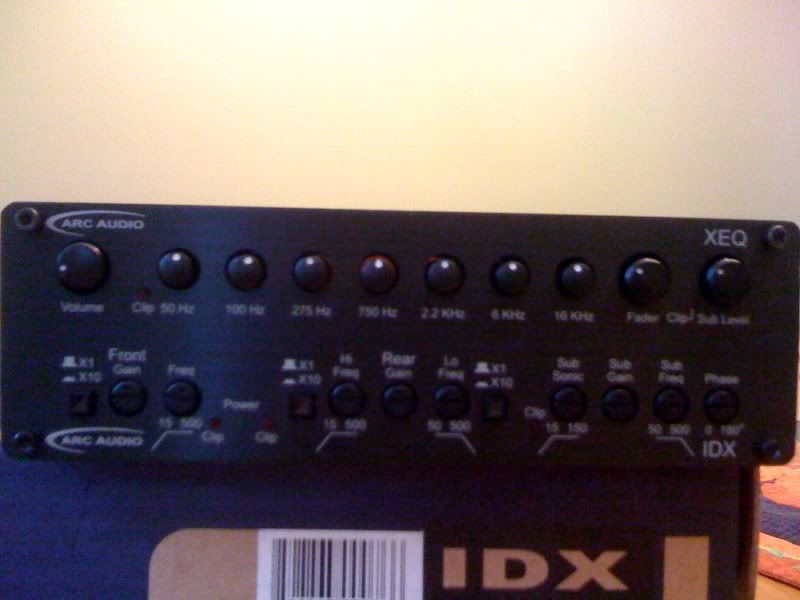

each is a half din unit,full din when mounted to the combo plate as pictured.
manual:
http://www.arcaudio.com/product-pdf/IDX-XEQ.pdf
IDX DESCRIPTION
•2/3 way active electronic crossover
•in-dash mounting option
•Front and Rear channel inputs
•Built in signal clip indicator
•Fully adjustable sub sonic filter
•0 - 180 degree variable sub phase control
•Front panel adjustable gains
•24dB sub crossover
SPECIFICATIONSCrossover Frequency Range Front High Pass 55Hz - 5.5 KHz, Rear High Pass, Low Pass or Band Pass 55Hz - 5.5KHz, Subwoofer 55Hz - 200Hz Sub Sonic Filter 15Hz - 150Hz
Crossover Slope 12dB (24dB Sub option is mono)
Dimension Half Din Standard
Frequency Response 10Hz - 30KHz
Input Impedance 10K ohms
Max voltage output 9v
Output Impedance 1K ohms
S/N Ratio 100dB
THD .005%
XEQ DESCRIPTION
•7 band equalizer with 12dB Boost/Cut
•Independent subwoofer output level control
•Adjustable subwoofer crossover
•In-Dash mounting option
•Independent front panel mount master volume control
•Built in clip detection circuit w/clip light indicator
•up to 9 volts Maximum output
SPECIFICATIONSBoost/Cut 12dB
Dimensions Half Din Standard
Frequency Centers 50Hz, 125Hz, 315Hz, 750Hz, 2.2KHz, 6KHz, 16Khz
Frequency Response 10Hz - 30Hz
Input Impedance 10k ohm
Max Output Voltage 9v
Output impedance 1k ohm
S/N Ratio 110dB
THD .005%
as new condition,mounted to the combo plate...
350$ obo.
trades welcome.....
each is a half din unit,full din when mounted to the combo plate as pictured.
manual:
http://www.arcaudio.com/product-pdf/IDX-XEQ.pdf
IDX DESCRIPTION
•2/3 way active electronic crossover
•in-dash mounting option
•Front and Rear channel inputs
•Built in signal clip indicator
•Fully adjustable sub sonic filter
•0 - 180 degree variable sub phase control
•Front panel adjustable gains
•24dB sub crossover
SPECIFICATIONSCrossover Frequency Range Front High Pass 55Hz - 5.5 KHz, Rear High Pass, Low Pass or Band Pass 55Hz - 5.5KHz, Subwoofer 55Hz - 200Hz Sub Sonic Filter 15Hz - 150Hz
Crossover Slope 12dB (24dB Sub option is mono)
Dimension Half Din Standard
Frequency Response 10Hz - 30KHz
Input Impedance 10K ohms
Max voltage output 9v
Output Impedance 1K ohms
S/N Ratio 100dB
THD .005%
XEQ DESCRIPTION
•7 band equalizer with 12dB Boost/Cut
•Independent subwoofer output level control
•Adjustable subwoofer crossover
•In-Dash mounting option
•Independent front panel mount master volume control
•Built in clip detection circuit w/clip light indicator
•up to 9 volts Maximum output
SPECIFICATIONSBoost/Cut 12dB
Dimensions Half Din Standard
Frequency Centers 50Hz, 125Hz, 315Hz, 750Hz, 2.2KHz, 6KHz, 16Khz
Frequency Response 10Hz - 30Hz
Input Impedance 10k ohm
Max Output Voltage 9v
Output impedance 1k ohm
S/N Ratio 110dB
THD .005%
