2005 Scion tC SQ Hertz Audison Pioneer Build Log

[keep_hope_alive Premium Member]

Beginning subwoofer box construction. we are making the enclosure to fit in the same place as the foam insert next to the spare tire. we'll get the recommended 0.6 gross cu. ft. with using 3/4" MDF. we'll be using US Composites B-440 resin and 3/4oz chopped mat to reinforce each seam and joint. we may glass the bottom to save 3/4" in height.

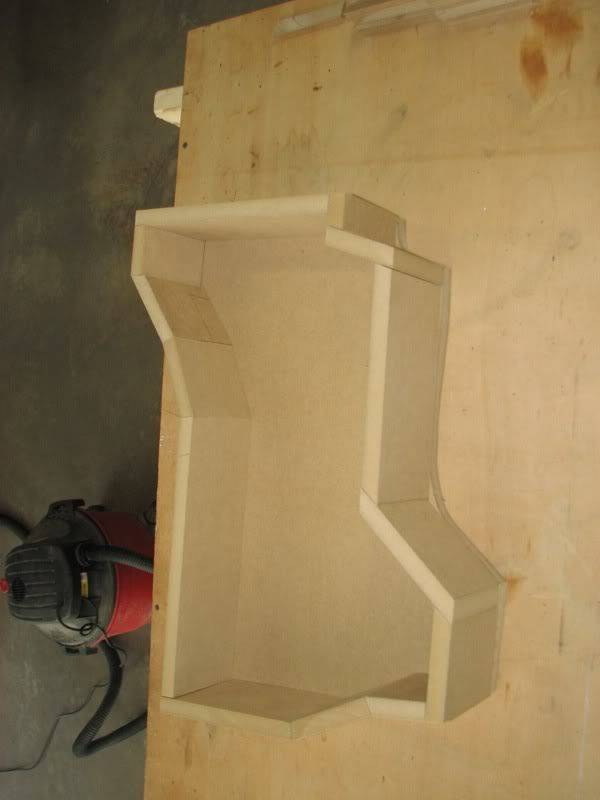

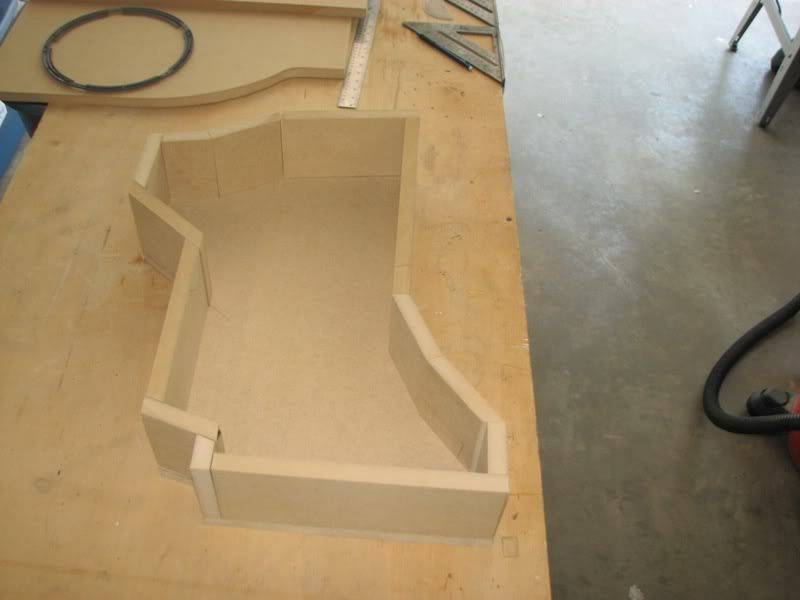

there are 13 sides. i pre-cut out strips of MDF that were the height we needed. then i used my table saw to cut the necessary angles, working my around the enclosure (so each saw angle was used twice).

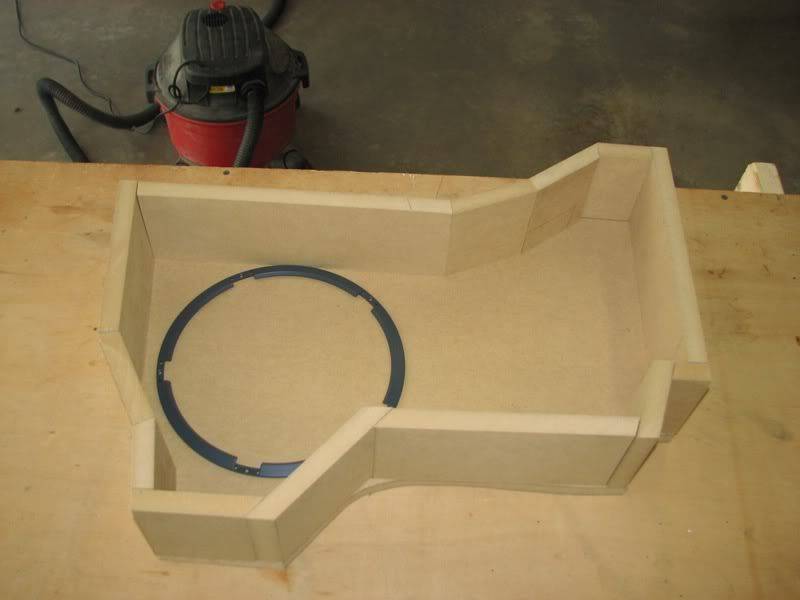

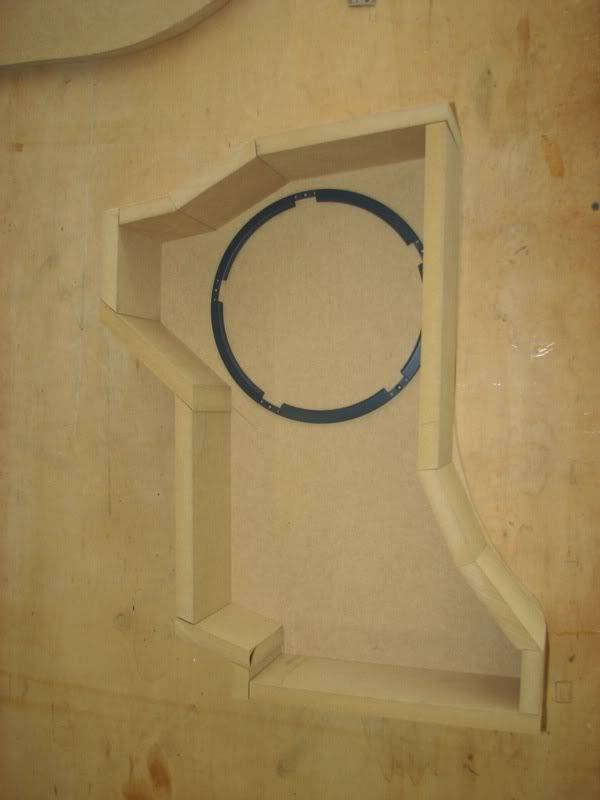

with the Hertz ML2500 trim ring in place

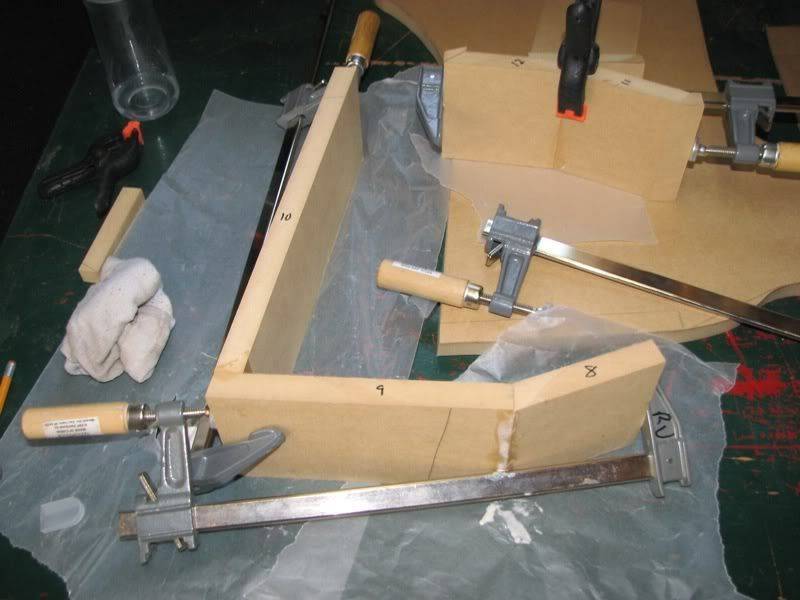

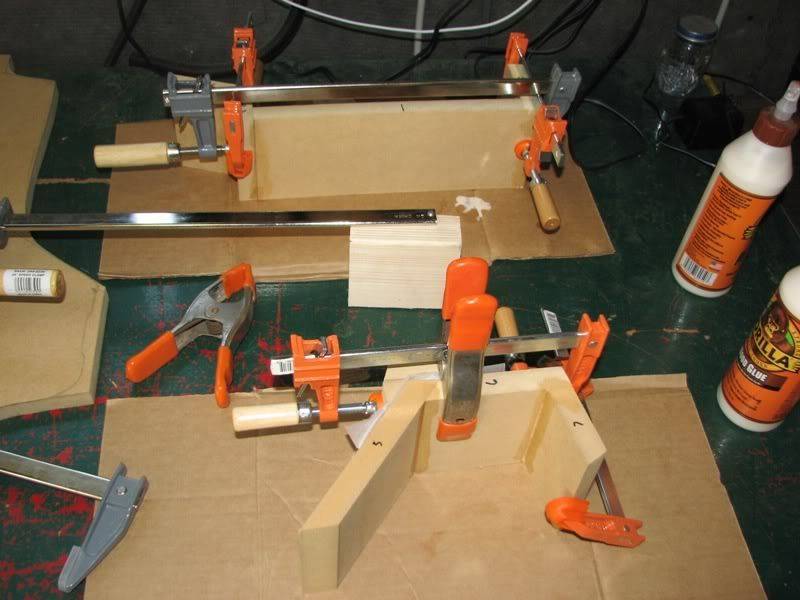

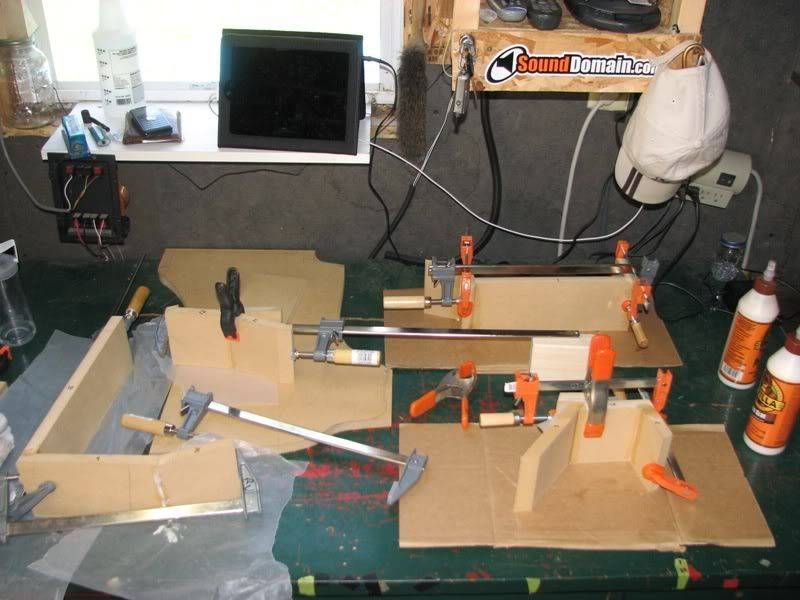

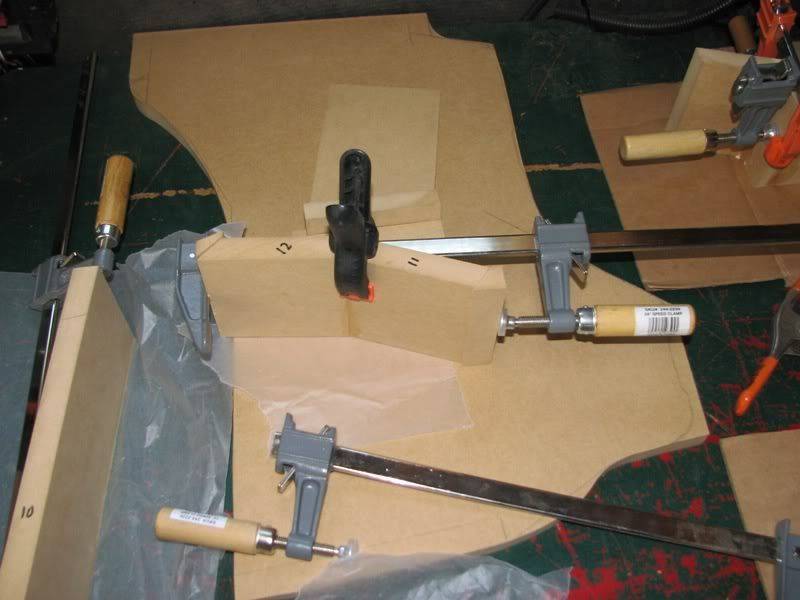

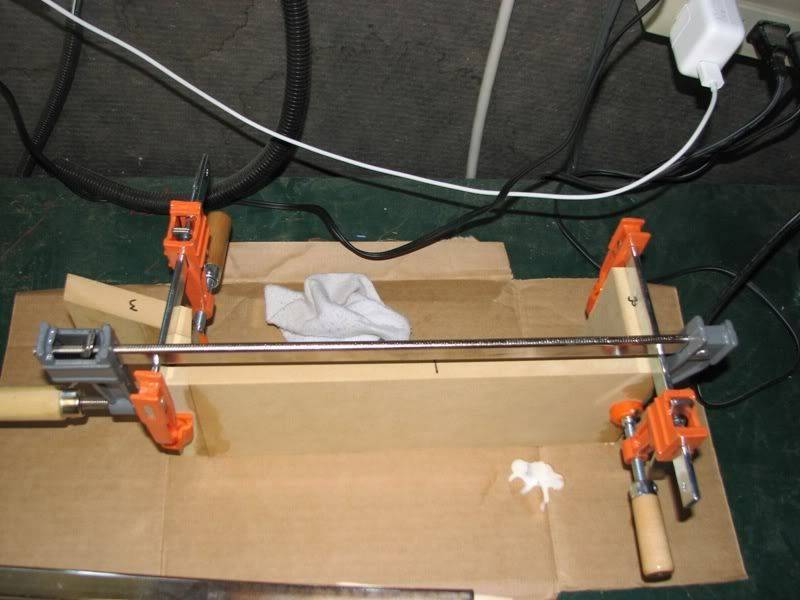

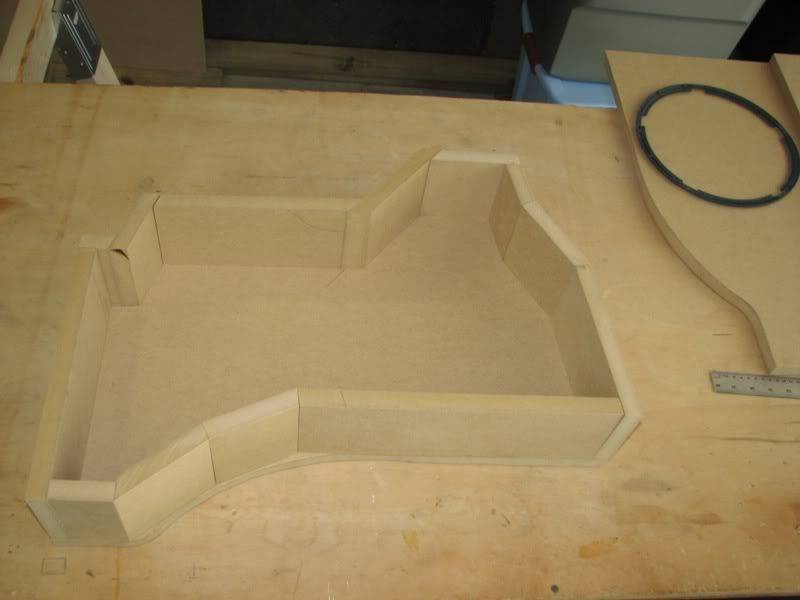

the sides needed to be glued in sections, then we'll glue the sections together. i numbered each piece so i could remember orientation and order.



[keep_hope_alive Premium Member]

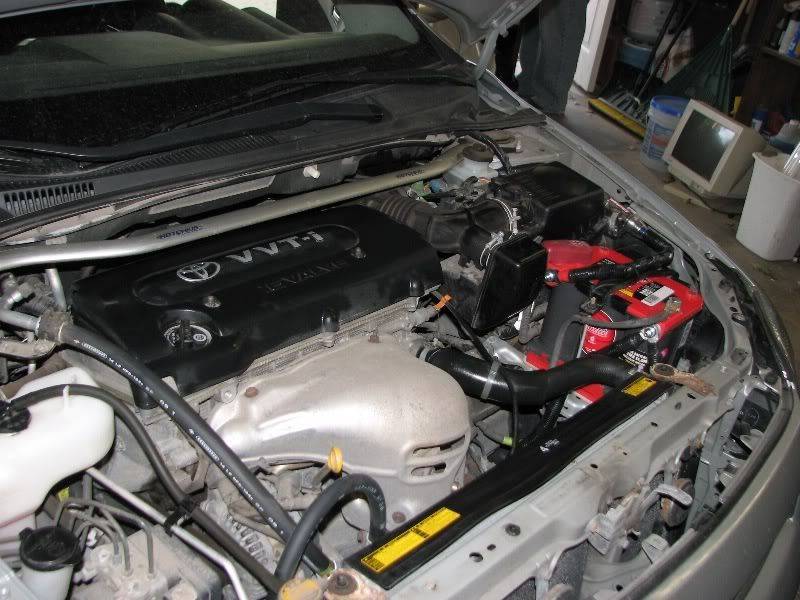

battery replacement, grounding for the big 3, fuse holder mounting

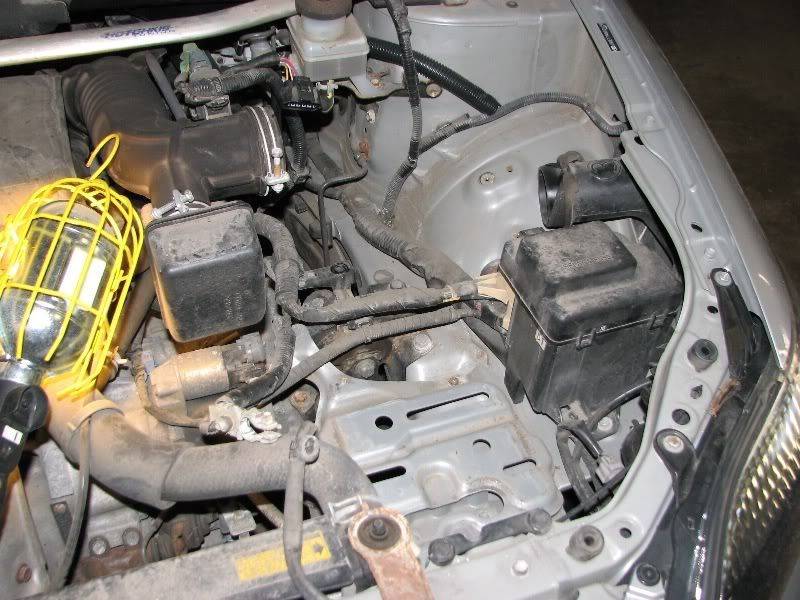

factory grounds - under battery and just below the starter

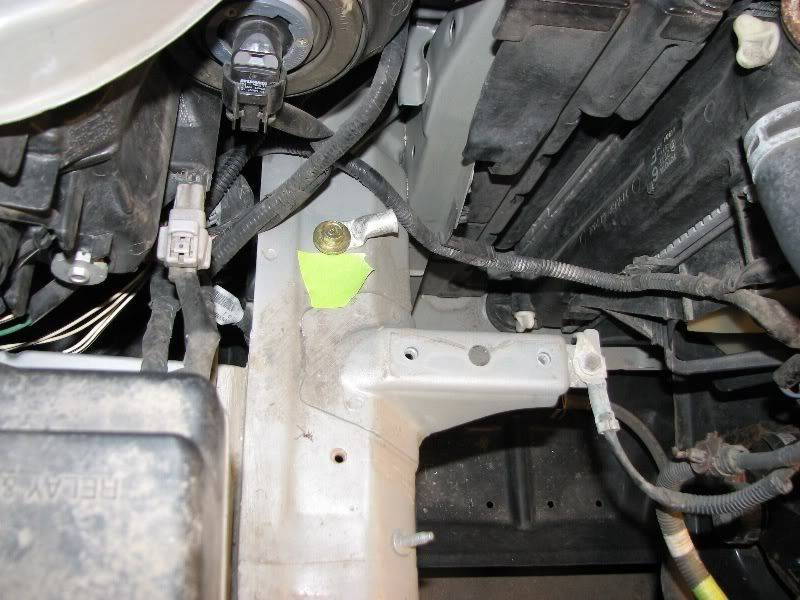

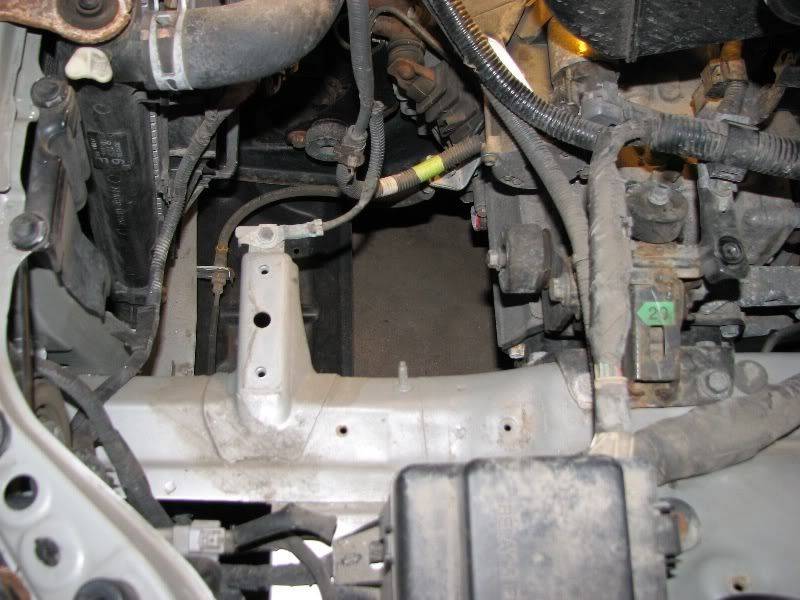

green tape identifies an empty threaded M10 - 1.5 location for a engine block ground

chassis ground to frame just under battery

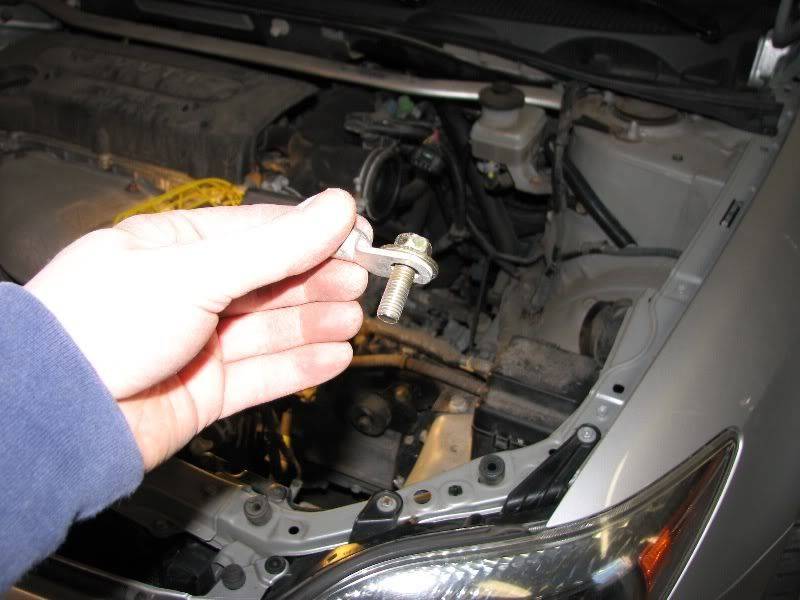

Grade 8 bolts used for grounding

paint sanded away

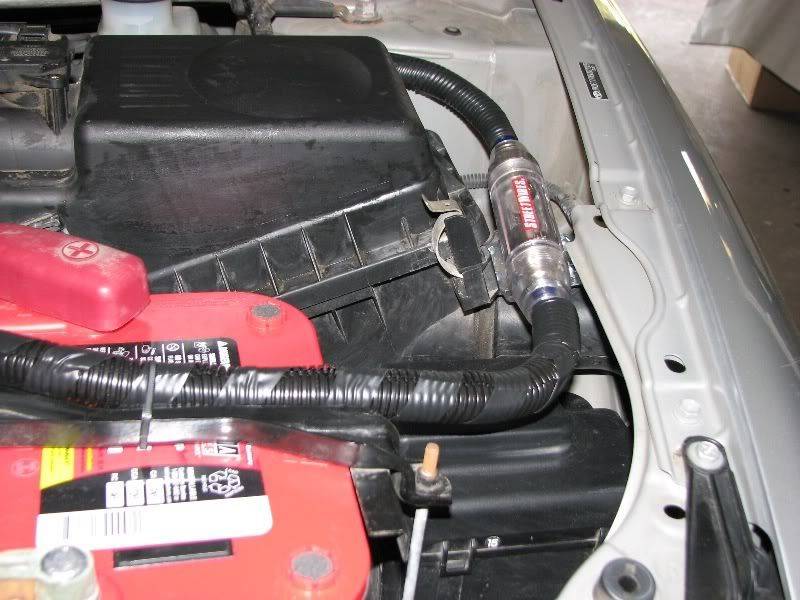

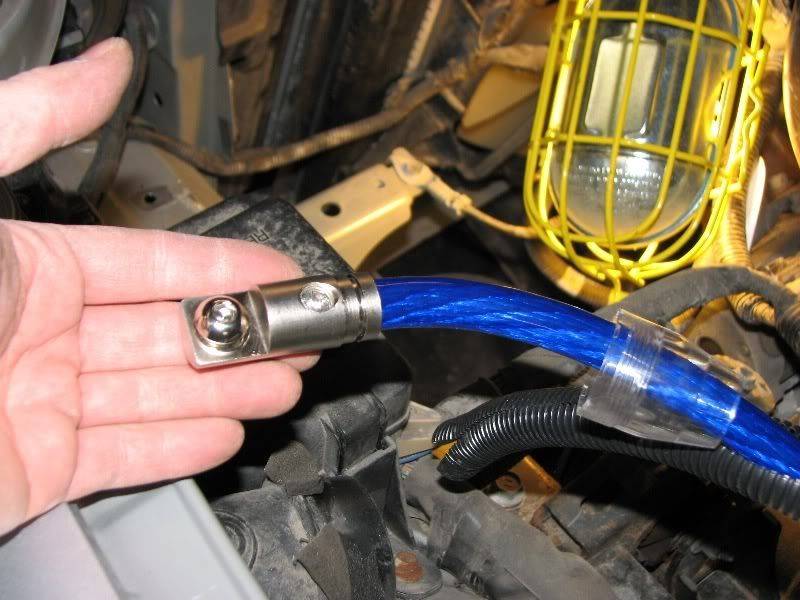

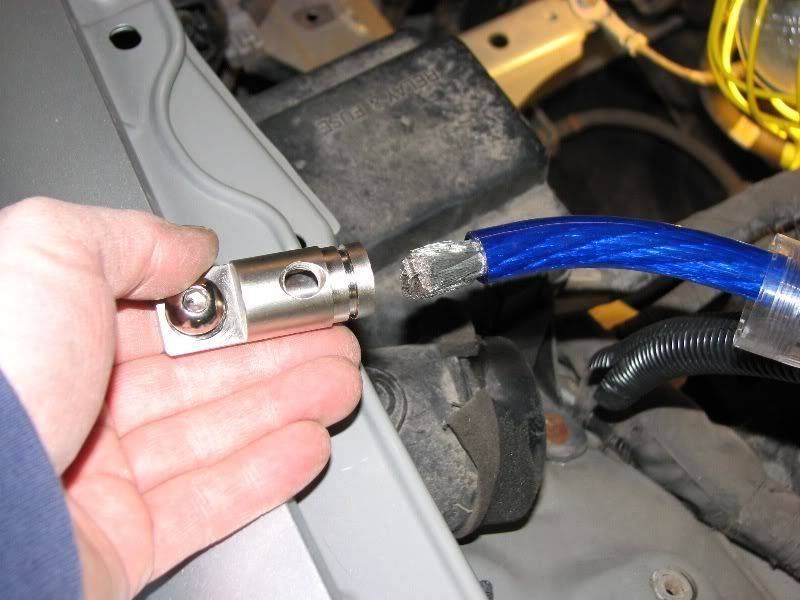

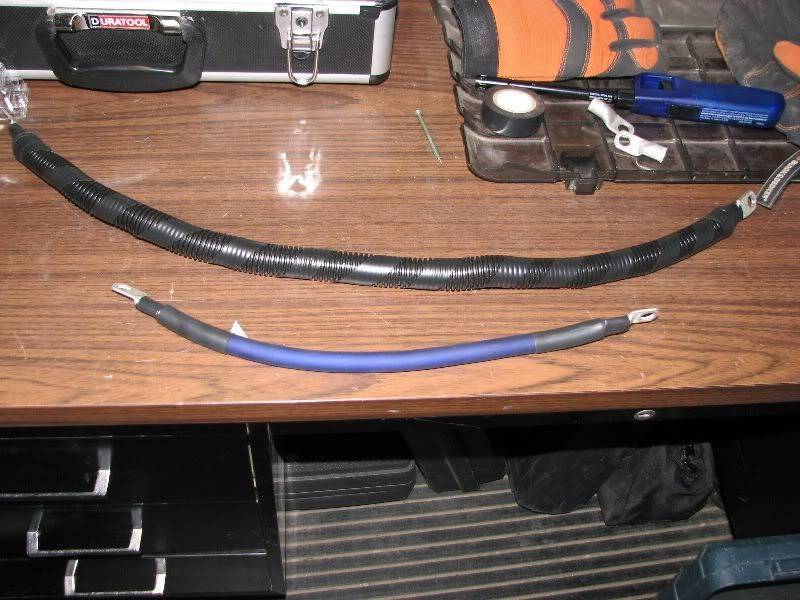

working on power wire fuse - Streetwires 1/0

I like Streetwires fuse holders



[keep_hope_alive Premium Member]

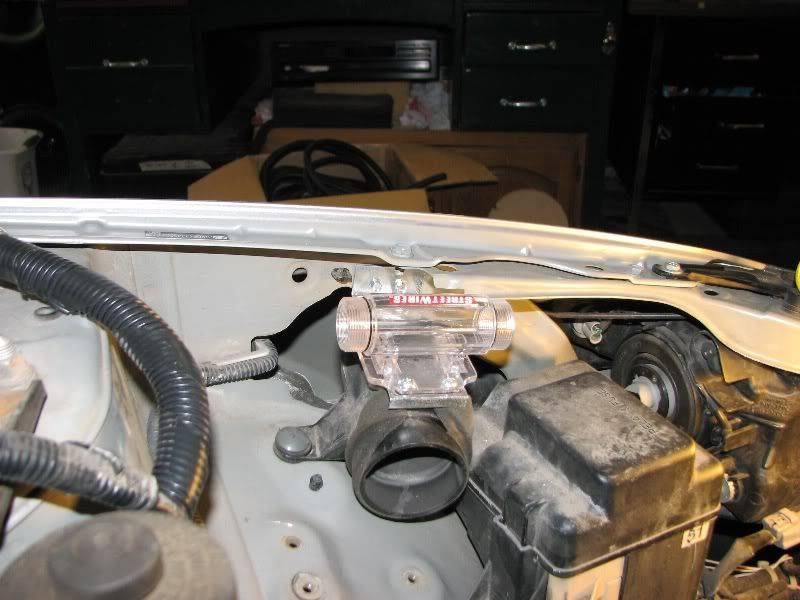

i made a custom bracket for the fuse holder

grounds getting marine grade ring terminals, heat shrink, then split loom

finished
