Z Edition Class D Amplifier 2400 Watts

[PANSI Irwin]

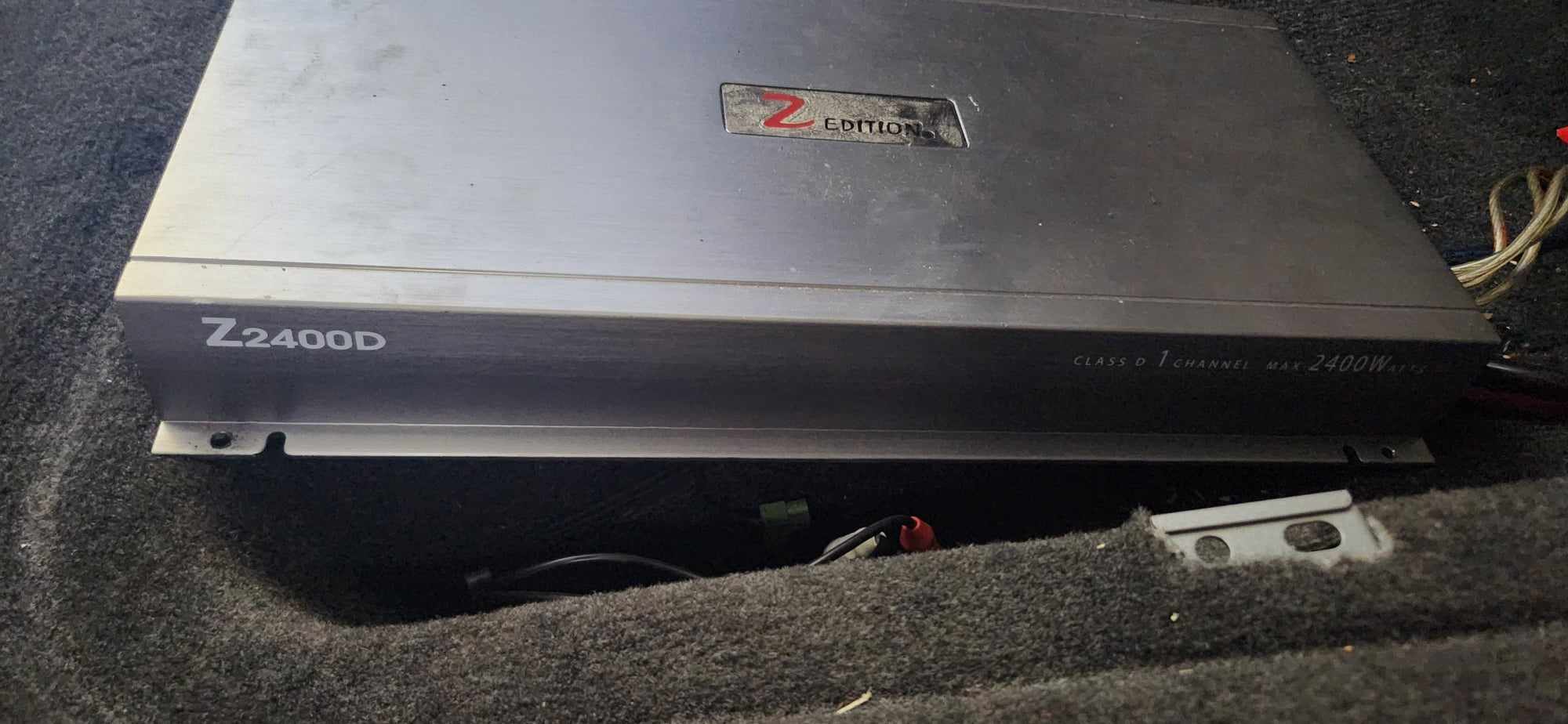

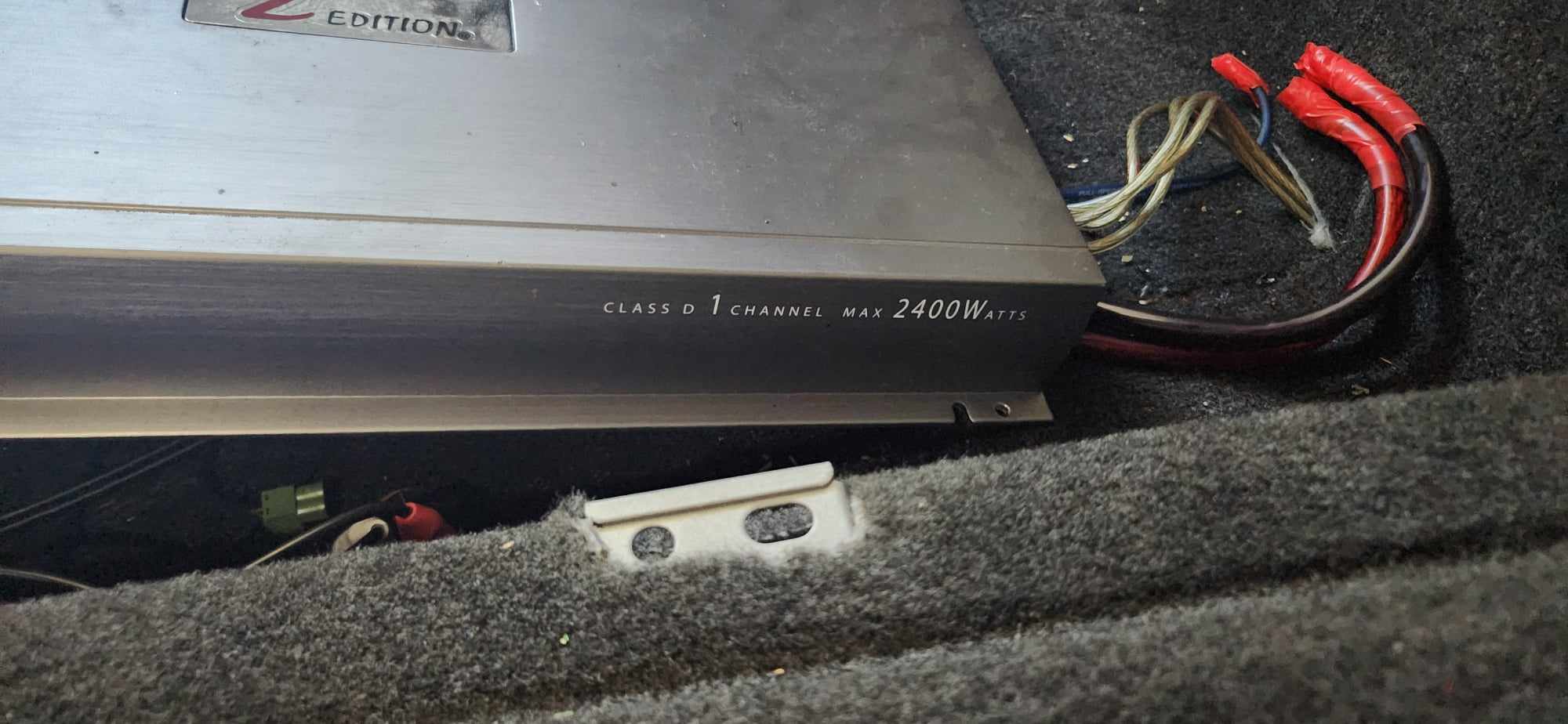

Hello everyone, can anyone can help me please ? i have that Z Edition Amplifier Class D 2400 Watts Max, and i would like to get its User manual, for the speakers differents wiring
here are the informations that i have ;
Power Output @ 14.4V

• 510w x 1 rms @ 4 ohms
• 900w x 1 rms @ 2 ohms
• 1500w x 1 rms @ 1 ohm
• 2400w x 1 max @ 1 ohm

But i will need the speakers wiring plan please, thanks a lot

Click to read more...



[chillin 10+ year member]

Take a pic of the side with the wires.



[PANSI Irwin]

Take a pic of the side with the wires.

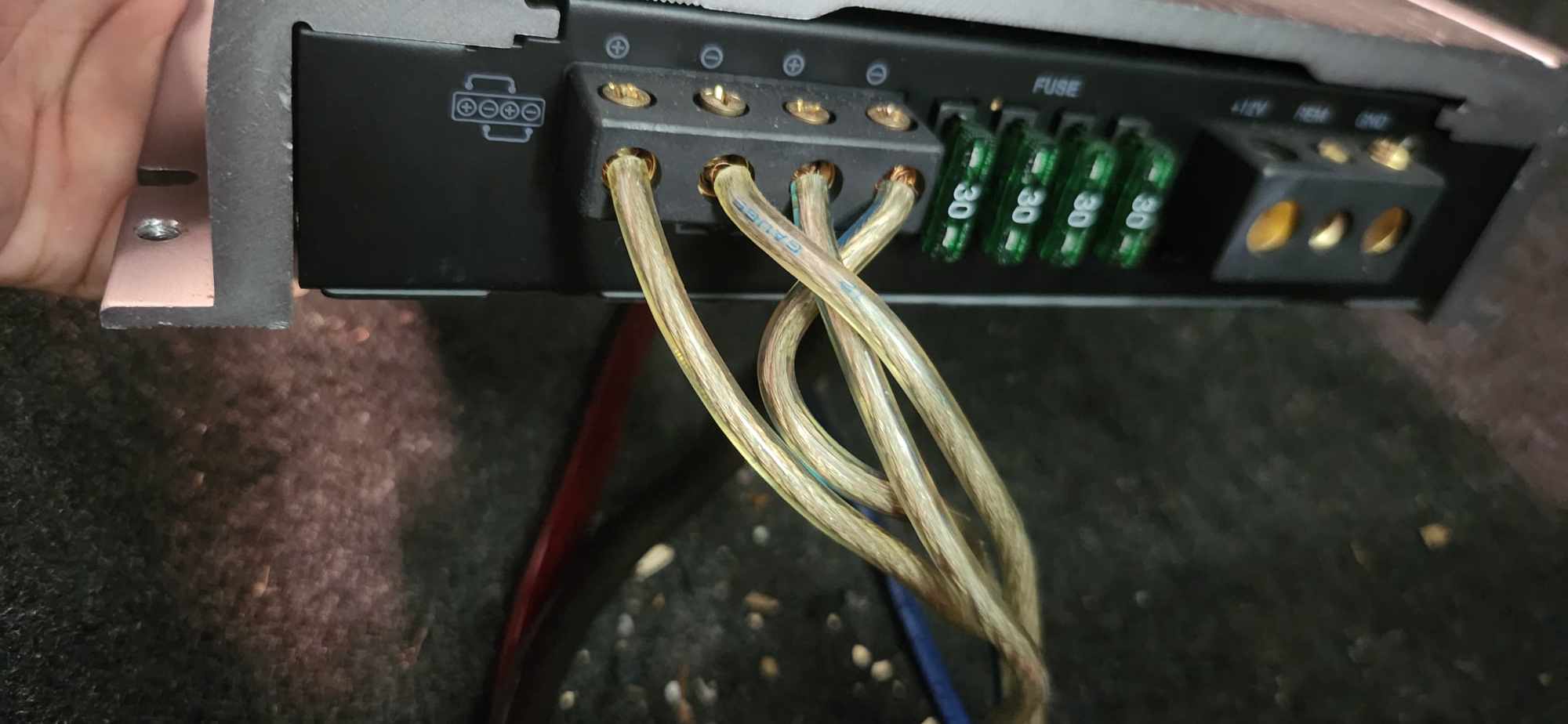

here is the side bro



[Doxquzme Premium Member]

View attachment 57498

This is pretty straight forward. These speakers inputs are summed, meaning both the + and the two - equal one +\- connection. The only reason there are two inputs for the speakers, is to make it easier to run dual wires from two subs or dual wires from a single dual vc sub. At the end of the day, whatever the total impedance is of the subs you wire using a single parallel connection or a dual connection summed parallel at the amp, it's the same.

If you can tell me which sub you intend to use (model/size. number of voice coils and the individual impedances'), I can tell you the wiring options you can use and how that impacts the amplifiers output.



[PANSI Irwin]

This is pretty straight forward. These speakers inputs are summed, meaning both the + and the two - equal one +\- connection. The only reason there are two inputs for the speakers, is to make it easier to run dual wires from two subs or dual wires from a single dual vc sub. At the end of the day, whatever the total impedance is of the subs you wire using a single parallel connection or a dual connection summed parallel at the amp, it's the same.

If you can tell me which sub you intend to use (model/size. number of voice coils and the individual impedances'), I can tell you the wiring options you can use and how that impacts the amplifiers output.

Thanks a lot for your help bro, i really appreciate .
Ok i will be using a Kicker 10" CompVX 4 Ohm 600 Watts RMS



[Doxquzme Premium Member]

Okay, is that a dual Voice Coil? If yes, what is the ohm rating for each voice coil? Looks like it has dual 4 ohm VC's.



[Doxquzme Premium Member]

Thanks a lot for your help bro, i really appreciate .
Ok i will be using a Kicker 10" CompVX 4 , so Ohm 600 Watts RMS

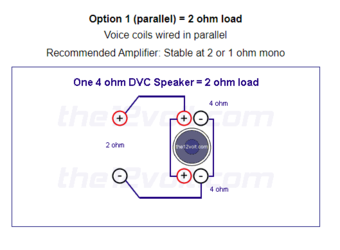

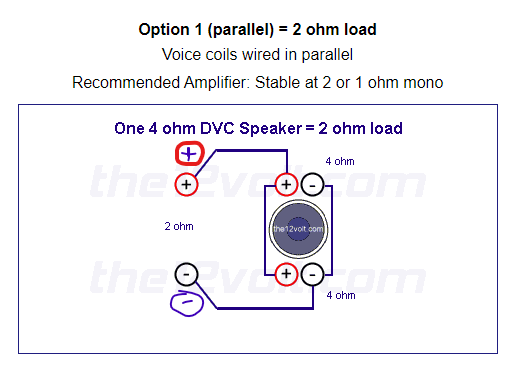

You have two wiring options - 2 ohms or 8 ohms so 2 ohms is the choice for your application.

The +/- I've added mimics the amplifiers input options. This configuration will give you 900 watts of power or 33% more than it's rated for. Be conservative when setting the gains so you don't overpower the woofer. This is the ideal setup for that amp and this driver.



[Doxquzme Premium Member]

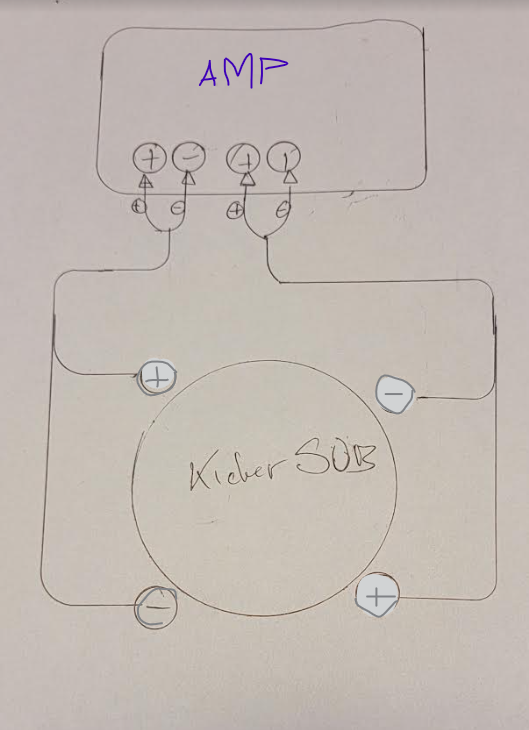

Here's another way to show the same thing but may be less confusing.



[PANSI Irwin]

Okay, is that a dual Voice Coil? If yes, what is the ohm rating for each voice coil? Looks like it has dual 4 ohm VC's.

Yes it's a dual 4 ohm VC



[PANSI Irwin]

You have two wiring options - 2 ohms or 8 ohms so 2 ohms is the choice for your application.

View attachment 57506

The +/- I've added mimics the amplifiers input options. This configuration will give you 900 watts of power or 33% more than it's rated for. Be conservative when setting the gains so you don't overpower the woofer. This is the ideal setup for that amp and this driver.

Ok, i will go on this option. Thanks a lot bro for the help, i really appreciate again,
Cheers
