Best class D amp brands

[Doxquzme Premium Member]

$800 for the sub(s), enclosure and the amp?



[Old_Slapper]

year, make and model of the truck? Do we need an amp wiring kit too?

Edit": sorry, just noticed that info - stay tuned...

A little more info, there will be a 2/0 cable from the hood going to another battery, closer to the amps, along with a 20 farad cap. The alternator will be just over 300 amps.



[Doxquzme Premium Member]

This 1500 watt stinger amp. run it off a dual 4 ohm sub wired in parallel (1000 watts at 2 ohms) keeps it cool AND loud.

$159

Amazon product ASIN B0BN2BG2M1
This dual 4 ohm VC sub - 1200 watts RMS: (ebay seller is SonicElectronicx clearance seller).

$150

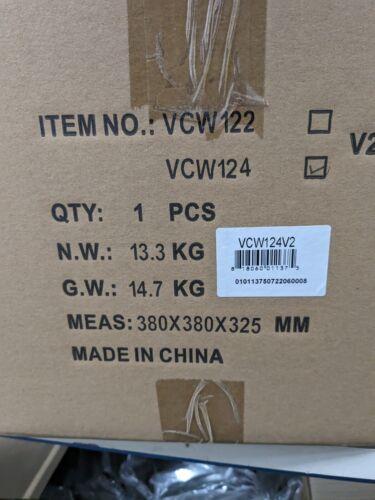

NVX VCW124 VC-Series 2000W 12" Dual 4-ohm Car Audio Subwoofer without Grille | eBay

12" Dual 4-Ohm VC-Series v2 Car Subwoofer. Triple stacked High Energy Y35 grade ferrite magnet with protective rubber boot. Impedance: Dual 4 ohms. Dual Progressive Roll Bolt-on Spiders with Integrated Flat Braided Tinsel Leads.

www.ebay.com

This or a comparable 1.85 cubic foot box ( i would tune those to around 30 hz:

Amazon product ASIN B084JFYQ3K

If you;re going to build a box, then a box with 1.85 cubic feet internal volume with a 4" round port 19" long, slamming loud, super good. I've taken into account the displacement for the driver and the port area. You may need to use an elbow joint on the port to get it to fit.

4 Gauge amp wiring kit:

$49.99

Amazon product ASIN B0C8V972Z7
LOC for converting channels, didn;t see wher or if you already have one in place. This one is very clean, accepts up to 45 watts from the factory HU and uses the high level HU speaker leads fo signal and and the remote turn-on, no additional remote lead run needed.

$19.99

Amazon product ASIN B00LIAHSM4
Pretty sure we're way under that $800 budget.



[HardofWhoring]

His budget is about $800 for the amps and subs. His truck is an extended cab, but he needs to keep his back two jump seats. And, if you have ever sat in those, there isn't much space. A cut through is not likely. 2-10s might be a better option, but I know 3-8" will move more air. I have been out of the car audio scene for 10 years, so I am not sure what is out there anymore.
Now thinking about it, 2-10" subs, at the price of 3-8" subs, might be the better route.

Toughts?

Whatever truck it is, there are most likely quite a few prefabbed enclosure options. If you're going to do something custom made, there is most likely a few humps and bends, and will require someone experienced that can do more than a cube. Are you just planning on making something?



[HardofWhoring]

2-10s might be a better option, but I know 3-8" will move more air.

8" (x3)
π × r² = π × 16 inch² ≈ 50.27 in²
50.27" x 3 = 150.81 sq in


10" (x2)
π × r² = π × 25 inch² ≈ 78.54 in²
78.54" x 157.08 sq in



[Old_Slapper]

I'm going to make the box. I will use fiberglass and wood to get all the space I can.



[Old_Slapper]

This 1500 watt stinger amp. run it off a dual 4 ohm sub wired in parallel (1000 watts at 2 ohms) keeps it cool AND loud.

$159

Amazon product ASIN B0BN2BG2M1
This dual 4 ohm VC sub - 1200 watts RMS: (ebay seller is SonicElectronicx clearance seller).

$150

NVX VCW124 VC-Series 2000W 12" Dual 4-ohm Car Audio Subwoofer without Grille | eBay

12" Dual 4-Ohm VC-Series v2 Car Subwoofer. Triple stacked High Energy Y35 grade ferrite magnet with protective rubber boot. Impedance: Dual 4 ohms. Dual Progressive Roll Bolt-on Spiders with Integrated Flat Braided Tinsel Leads.

www.ebay.com

This or a comparable 1.85 cubic foot box ( i would tune those to around 30 hz:

Amazon product ASIN B084JFYQ3K

If you;re going to build a box, then a box with 1.85 cubic feet internal volume with a 4" round port 19" long, slamming loud, super good. I've taken into account the displacement for the driver and the port area. You may need to use an elbow joint on the port to get it to fit.

4 Gauge amp wiring kit:

$49.99

Amazon product ASIN B0C8V972Z7
LOC for converting channels, didn;t see wher or if you already have one in place. This one is very clean, accepts up to 45 watts from the factory HU and uses the high level HU speaker leads fo signal and and the remote turn-on, no additional remote lead run needed.

$19.99

Amazon product ASIN B00LIAHSM4
Pretty sure we're way under that $800 budget.

That's a pretty good deal. I really like the Stinger Amp, but I would still need a 4ch to go with it. Also, would the single 12 slap harder than 2 10s?



[Old_Slapper]

8" (x3)
π × r² = π × 16 inch² ≈ 50.27 in²
50.27" x 3 = 150.81 sq in


10" (x2)
π × r² = π × 25 inch² ≈ 78.54 in²
78.54" x 157.08 sq in

LOL...
Now you had to go and get all technical on me. You're right! I don't know what I was thinking. 10's also move more than 8's, so that will add to the equation.



[Doxquzme Premium Member]

A nice four channel to accompany that would be the recoil 4 channel. I've used the full bridge Brazilian models like Taramps, not the budget minded models as I'm not fan of basic Brazilian full bridge designs, just my preferences.
This is a nice, 185 x 4 @4, with like 300x4 @2 unit:

DI800.4 Full-Range Class-D 4-Channel Car Audio Amplifier, 1,500 Watts, 2-4 Ohm Stable, MOSFET Power Supply, Bridgeable - Recoil Audio

Features: Class-D 4-Channel Amplifier, 1500 Watts Max Power, RMS 185 Watts x 4@2 Ohm; RMS 125 Watts x 4@4Ohm; RMS (Bridged): 360 Watts x 2@4Ohm; Peak Power: 370 Watts x 4@2Ohm Featuring a high-speed MOSFET power supply, premium grade internal components, as well as 4-way protection circuitry...

www.recoilaudio.com

I provided the internal volume and the port length in the previous post. Round ports are best and with the box being custom, figured it would be the most convenient. that's $200 sub that the CARUDIO is selling for $150. He's the outlet seller for NVX/Sonic electronics and always takes offers to move merch. Offer him like $125 for that sub, he'll probably bite.

With that four channel, I think we are at $500. Have you decided on the Front rear speakers, are you going to go with frt/rear or just fronts? I believe that ranger has openings for 4 6x9s.

That single 12 with that stinger amp will be overkill as it is, VERY LOUD indeed! No need to complicate or compromise here with lesser 10's. This will rattle his teeth!



[Doxquzme Premium Member]

A couple sets of these maybe?

VSP69KIT2F 900W Peak (300W RMS) 6x9" 2-Ohm V-Series 2-Way Component Speakers with 25mm Silk Dome Tweeters

Product Details: 6" x 9" V Series 2-way Component System Car Speakers Power Handling: Peak: 900 watts per set / 450 watts each side RMS: 300 watts per set / 150 watts each side Polypropylene cone material Nitrile Butadiene Rubber NBR speaker surround 1" Silk Dome Tweeters CEA-2031 compliant: Yes...

nvx.com



[Old_Slapper]

A nice four channel to accompany that would be the recoil 4 channel. I've used the full bridge Brazilian models like Taramps, not the budget minded models as I'm not fan of basic Brazilian full bridge designs, just my preferences.
This is a nice, 185 x 4 @4, with like 300x4 @2 unit:

DI800.4 Full-Range Class-D 4-Channel Car Audio Amplifier, 1,500 Watts, 2-4 Ohm Stable, MOSFET Power Supply, Bridgeable - Recoil Audio

Features: Class-D 4-Channel Amplifier, 1500 Watts Max Power, RMS 185 Watts x 4@2 Ohm; RMS 125 Watts x 4@4Ohm; RMS (Bridged): 360 Watts x 2@4Ohm; Peak Power: 370 Watts x 4@2Ohm Featuring a high-speed MOSFET power supply, premium grade internal components, as well as 4-way protection circuitry...

www.recoilaudio.com

I provided the internal volume and the port length in the previous post. Round ports are best and with the box being custom, figured it would be the most convenient. that's $200 sub that the CARUDIO is selling for $150. He's the outlet seller for NVX/Sonic electronics and always takes offers to move merch. Offer him like $125 for that sub, he'll probably bite.

With that four channel, I think we are at $500. Have you decided on the Front rear speakers, are you going to go with frt/rear or just fronts? I believe that ranger has openings for 4 6x9s.

That single 12 with that stinger amp will overkill as it is, VERY LOUD indeed! No need to complicate or compromise here with lesser 10's. This will rattle his teeth!

That is a really nice looking amp. Do they have good sub amp to match? I really love the Stinger, but having a matching amp would be cool. It will be a show style install. Not for car shows, but to be impressive to look at. He's 16 and in high school.

The speakers are 6x8. I will use plates and install 6.5's. It was a thought to install 6x9's in the rear section, but there isn't enough air space to get the bass out of them, so 6.5's will sound better. I'm still tossing around custom door panels.



[spokey9]

REFURBISHED DOWN4SOUND JP95 AMPLIFIER

Buy Car Audio Online the real #1 Source, Fast Free Shipping, EZ Financing, Price Match Guarantee, freebies in every order, Shop Now!

www.down4soundshop.com

It's 900w on the sub channel @ 1 ohm...but with the right subs and box that's plenty for a pair of 10's to get down plus it's an all in one package if space is tight and a bit easier install



[Doxquzme Premium Member]

Well,now that y ou mention it, this may be the answer to your prayers.

RED1800.5 1,800 Watts Class-D Car Audio 5-Channel Amplifier, Mono 1 Ohm Stable, Remote Bass Knob Included - Recoil Audio

Features: Class-D 5-Channel Amplifier, 1,800 Watts Max Power, RMS 1,280 Watts x 1@1 Ohm; RMS 220 Watts x 4@2Ohm + RMS 980 Watts x 1@2Ohm; RMS 140 Watts x 4@4Ohm + RMS 600 Watts x 1@4Ohm. The mono channel is stable down to ONE Ohm, giving you the freedom to put even more subs in your system...

www.recoilaudio.com

- OR -

add this to the 4 channel mentioned:

900 watts at 2 ohms

RED1200.1 2500 Watts Peak Class-D Car Audio Mono-block Subwoofer Amplifier, 1 Ohm Stable w/ Remote Bass Control (Copy) - Recoil Audio

Recoil engineered the RED1200.1 Class D mono-block subwoofer amplifier to be dominant in both power and reliability. The RED1200.1D is 1-ohm stable and utilizes a wide array premium components that make it extremely powerful and reliable - such as its high speed MOSFET power supply and advanced...

www.recoilaudio.com

Any of these solutions with that 12" in the box Suggested will blow his socks off in that little ranger cab, I see no need to go with dual tens, none.



[Doxquzme Premium Member]

As for the 2 ohm 6x9's, not bass that you're shooting for, its that 60 hz and above that they do very well. I would think a couple pairs of these would do the trick. THey do not need a lot of air for that frequency and the bigger cone and 2 ohm impedance are compelling attributes for volume considerations.

Amazon product ASIN B0BZJX816K



[Old_Slapper]

Well,now that y ou mention it, this may be the answer to your prayers.

RED1800.5 1,800 Watts Class-D Car Audio 5-Channel Amplifier, Mono 1 Ohm Stable, Remote Bass Knob Included - Recoil Audio

Features: Class-D 5-Channel Amplifier, 1,800 Watts Max Power, RMS 1,280 Watts x 1@1 Ohm; RMS 220 Watts x 4@2Ohm + RMS 980 Watts x 1@2Ohm; RMS 140 Watts x 4@4Ohm + RMS 600 Watts x 1@4Ohm. The mono channel is stable down to ONE Ohm, giving you the freedom to put even more subs in your system...

www.recoilaudio.com

- OR -

add this to the 4 channel mentioned:

900 watts at 2 ohms

RED1200.1 2500 Watts Peak Class-D Car Audio Mono-block Subwoofer Amplifier, 1 Ohm Stable w/ Remote Bass Control (Copy) - Recoil Audio

Recoil engineered the RED1200.1 Class D mono-block subwoofer amplifier to be dominant in both power and reliability. The RED1200.1D is 1-ohm stable and utilizes a wide array premium components that make it extremely powerful and reliable - such as its high speed MOSFET power supply and advanced...

www.recoilaudio.com

Any of these solutions with that 12" in the box Suggested will blow his socks off in that little ranger cab, I see no need to go with dual tens, none.

I like those amps! I believe I am sold on them. Are the wattage ratings accurate or are they underrated?
