Random Box Pics!


Ridinhi

CarAudio.com Veteran
10+ year member
Aug 8, 2006
4,617
435
Winston-Salem, NC
I'm currently working on 4 12's in a 6th order blow through in my Silverado. The box is designed to take up damn near the whole bed. Front to back, inside of the wheel well to the other. I got a camper shell thinking that I could still put stuff on top of the box if I needed to haul something. I won't be able to fit a big cabinet back there anymore, but at least it'll still be somewhat functional.
Though I've also contemplated getting a different box design that the front port would go through the back window. The box wouldn't be as long, because it would be a lot taller, and it would be easier to replace glass than a chunk of metal.
Just mentioning ideas you two might think about. But yeah, it's hard to cut that hole! I'm dreading it. Once you start, no turning back!
Nice! Really would like to se this.

  • Like
Reactions: Dafaseles

Dafaseles

CarAudio.com Regular
Nov 12, 2020
204
75
510
Nice! Really would like to se this.
I'll post some stuff when I'm done. Or when I get close. I'm currently on try #3 on my doors. First 2 tries where complete failures. Once I'm finally done with the doors, everything else should get done a lot faster. I've never done door pods before, so it's a lot of "nope, that's not going to work" lol


Bobbytwonames

Trigger Man!
5,000+ posts
Aug 28, 2018
7,817
-1,070
Vegas
  • Thread Starter Thread Starter
  • #163

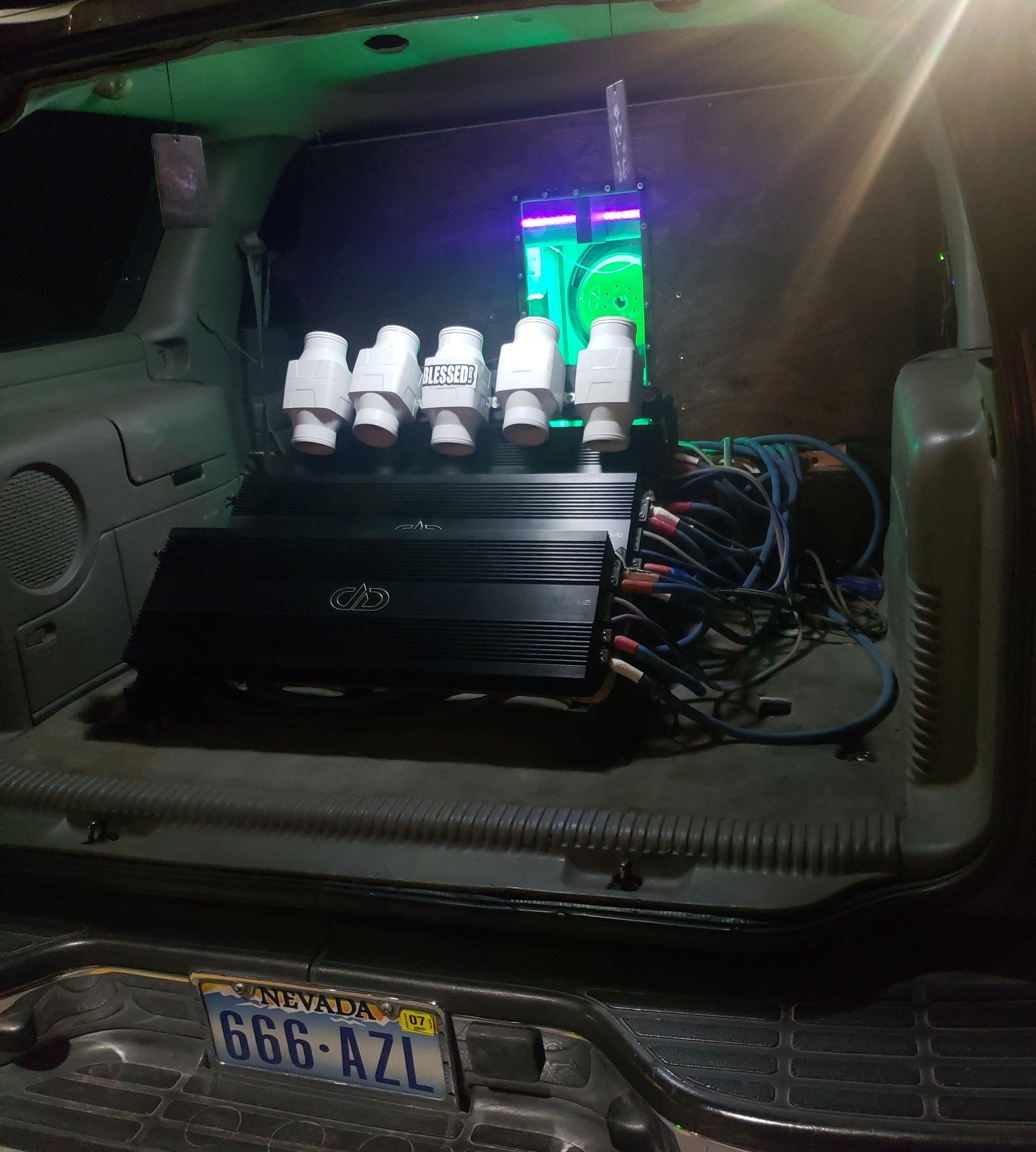

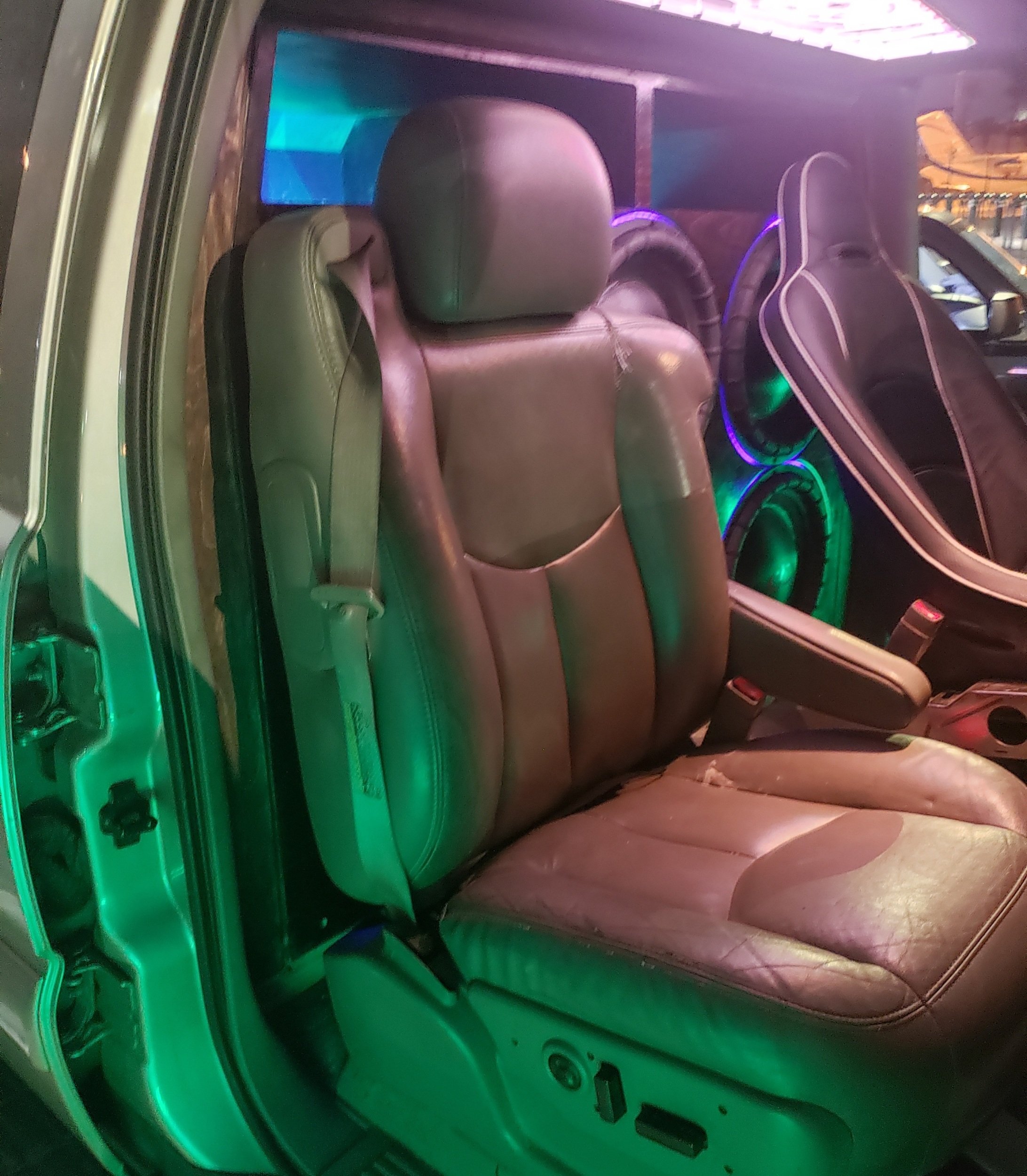

Installed the 6-Fi 15" custom built NEO's in a sixth order in a two door Tahoe. Then we tested them on my SIA3500. They still got pretty windy on a 3,500 watt amp. The next step is installing the 4 Wolfram Arctic Wolf 9K's @ ½ ohm.


Last edited:
  • Like
Reactions: HondaCRV03

SlugButter

CarAudio.com Elite VIP
Nov 5, 2019
2,836
981
arizona
I’m doing a 6th order build for my Dayton reference 10 tomorrow. Should be interesting to find out how it does.

  • Like
Reactions: Buck

Buck

[email protected]
Pro Seller
5,000+ posts
10+ year member
May 19, 2008
26,488
668
Orlando Area, FL
I’m doing a 6th order build for my Dayton reference 10 tomorrow. Should be interesting to find out how it does.
Lmk how that goes. That sounds like fun bro.

  • Like
Reactions: SlugButter

SlugButter

CarAudio.com Elite VIP
Nov 5, 2019
2,836
981
arizona
Lmk how that goes. That sounds like fun bro.
Maybe I will just put a build log up. It will be a quick MDF build first, then I will do one with birch depending on how it sounds. Will make the ports adjustable on the first build.

  • Like
Reactions: Buck

Buck

[email protected]
Pro Seller
5,000+ posts
10+ year member
May 19, 2008
26,488
668
Orlando Area, FL
Maybe I will just put a build log up. It will be a quick MDF build first, then I will do one with birch depending on how it sounds. Will make the ports adjustable on the first build.
That's a good idea. I had an audio friend build the first series 6th order I ever designed for his HDC310 (iirc) back in the day. I definitely messed up the tuning, and I think he wound up separating his spider or something. Series 6th orders are very rewarding when they're done correctly. They can be an absolute pain in the rear to internally lay everything out without any of the ports or sub(s) hitting each each other. It takes some time to be confident with series 6th orders, that's for sure, and there's so many ways you can do them. You can do small or huge front chambers, all sorts of different port areas and box volumes, depending on your aim with the enclosure. I think people should give a musical series 6th's a chance, because they can be designed for bass heavy music and actually play a decent bandwidth.


SlugButter

CarAudio.com Elite VIP
Nov 5, 2019
2,836
981
arizona
That's a good idea. I had an audio friend build the first series 6th order I ever designed for his HDC310 (iirc) back in the day. I definitely messed up the tuning, and I think he wound up separating his spider or something. Series 6th orders are very rewarding when they're done correctly. They can be an absolute pain in the rear to internally lay everything out without any of the ports or sub(s) hitting each each other. It takes some time to be confident with series 6th orders, that's for sure, and there's so many ways you can do them. You can do small or huge front chambers, all sorts of different port areas and box volumes, depending on your aim with the enclosure. I think people should give a musical series 6th's a chance, because they can be designed for bass heavy music and actually play a decent bandwidth.
This one looks good in 1.3 cubes @ 30 HZ and .35 cubes at 58 HZ. Probably keep the port area the same in both chambers if I can make it work. Looks like I will have decent bandwidth from 28-70 hz.


SlugButter

CarAudio.com Elite VIP
Nov 5, 2019
2,836
981
arizona
It was playing 20 hz. with authority. He has a shitt ton of cone area and motor force. I'm guessing that he will easily be 165db+.
I’m more wondering how it sounded on music I guess, is it just loud or does it sound good in music when playing loud also? If it plays down to 20 hz I’m guessing it sounds pretty good.


Buck

[email protected]
Pro Seller
5,000+ posts
10+ year member
May 19, 2008
26,488
668
Orlando Area, FL
This one looks good in 1.3 cubes @ 30 HZ and .35 cubes at 58 HZ. Probably keep the port area the same in both chambers if I can make it work. Looks like I will have decent bandwidth from 28-70 hz.
That’s a small front chamber for a series 6th.


Bobbytwonames

Trigger Man!
5,000+ posts
Aug 28, 2018
7,817
-1,070
Vegas
  • Thread Starter Thread Starter
  • #177
I’m more wondering how it sounded on music I guess, is it just loud or does it sound good in music when playing loud also? If it plays down to 20 hz I’m guessing it sounds pretty good.
Oh we just played the bass in his Tahoe from the amp in my truck. The mids/highs were still playing in my truck. We just ran a positive and negative speaker wire from my truck to his subs. I think it was wired to 1-½ ohms.


Bobbytwonames

Trigger Man!
5,000+ posts
Aug 28, 2018
7,817
-1,070
Vegas
  • Thread Starter Thread Starter
  • #178
A car audio store demo box. It will hold a double din HU, a set of 6-½" components, a set of 6-½" coaxials, 2-10" subs, 2-12" subs, and 1-15" sub. All three sub boxes are tuned to 34 hz.


  • Like
Reactions: Ridinhi

Bobbytwonames

Trigger Man!
5,000+ posts
Aug 28, 2018
7,817
-1,070
Vegas
  • Thread Starter Thread Starter
  • #179
I decided to upgrade the mids/highs in my truck. I'll sell the amp and Infinity Kappa's being removed. Deaf Bonce 6½" Sylvester's and a Crescendo 4 channel. I'm thinking of adding another set of 6-½'s in the rear but they are right next to the sub box. 🤷‍♂️
