    Eclipse Ti 12 ( SW9122)

    Item(s) for Sale:

    OEM Eclipse Ti SW9122 12in subwoofer
    QCA top and motor
    3in / 4 layer alluminum coil
    Dual 4ohm

    Known for sounding great and getting stupid on the lows in like a 2 - 2.5cub @ 28-29hz box.

    Specs copied from scparrish for sale ad:

    Eclipse SW9122 (Series Coils)

    Re = 6.2342 ohms
    Fs = 38.5112 Hz
    Zmax = 98.0958 ohms
    Qes = 0.6023
    Qms = 8.8752
    Qts = 0.5640
    Le = 5.6909 mH (at 1 kHz)
    Diam = 245.7450 mm ( 9.6750 in )
    Sd = .0474m^2( 73.5177 in^2)
    Vas = 20.5683 L ( 0.7264 ft^3)
    BL = 25.7803 N/A
    Mms = 265.3696 g
    Cms = 64.3599 uM/N
    Kms =15537.6152 N/M
    Rms = 7.2350 R mechanical
    Efficiency = 0.1833 %
    Sensitivity= 84.6488 dB @1W/1m

    Item(s) Description/Condition:

    Got back into car audio after a few years off, landed on a pair of these 3hp's and now I'm on the fence about sacrificing enough trunk space to port both. I regret selling my TC motors I had, and so I will not entertain any offers below what I am asking for this 3hp.

    Located in Tampa, FL. I don't want to drive far to meet but am open to discussing it.

    These Ti's are very efficient and will sound amazing on 500w-1000w. I've ran 1500w to some in the past, I don't it's necessary. A solid 1k ish plenty. In all my years of car audio, the 3hp and 4hp based woofers are my favorite daily drivers, hands down.

    Pros:
    Stiff spiders, feels barely broken in. Previous owner had them on like 300w, I don't think he knew the potential of these. Coils read a perfect 3.2ohm each side. Spiders also look amazing, not a single tear. Stitching on the leads looks great, lots of life left in this.

    Cons:
    She's not the prettiest. Couple small dings on the front right of the cone. Couple small very superficial scuff on the surround. Nothing worse than a light scuff, I would not have purchased these to begin with if there was anything resembling a puncture or crack.

    I took a ton of pictures, you get the idea.

    scparrish is selling one right now in about the same/maybe a little better cosmetic condition than mine for cheaper than what I'm asking. Do not care. Go buy his woofer. Free bump for a brother.

    Price:

    $300+ ship. I may not check this daily, best way to reach me is via text. 813-310-1589.

    Shipping and Miscellaneous Item Information:

    USPS Priority, Insured, and packed to survive a soccer game.

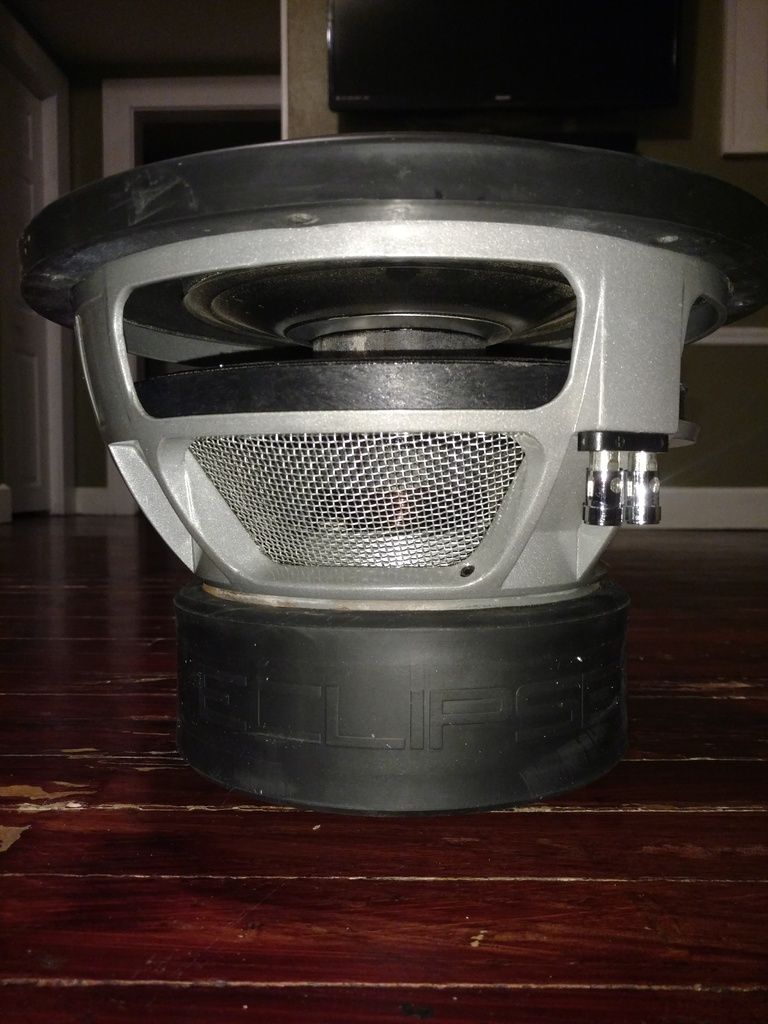

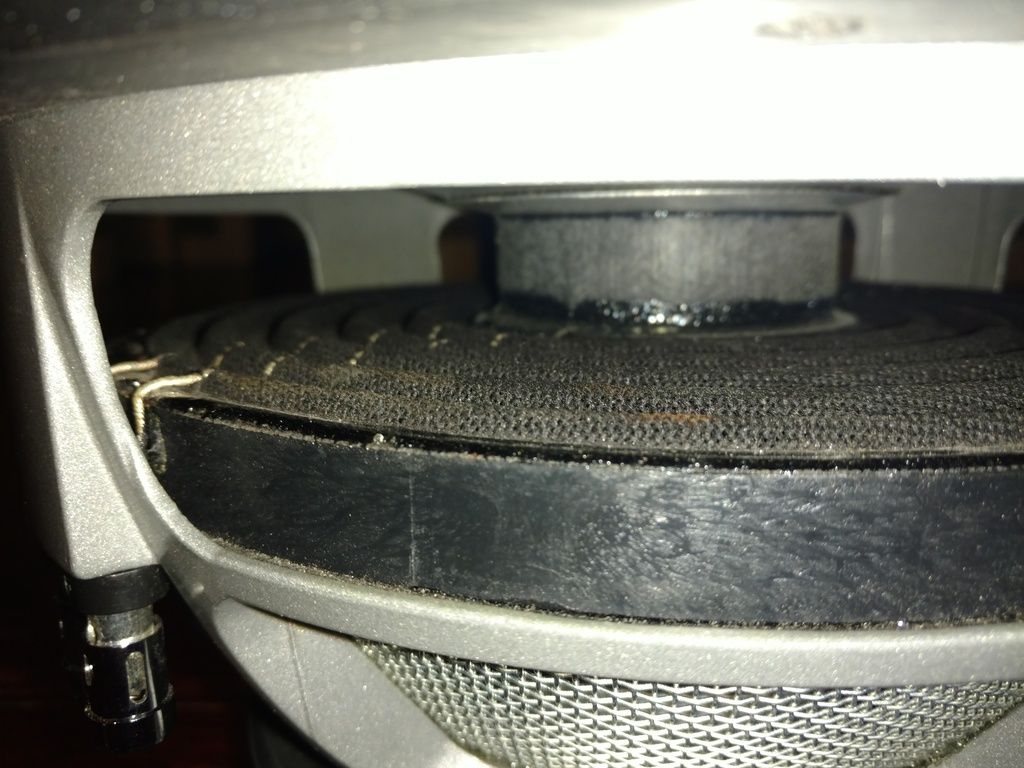

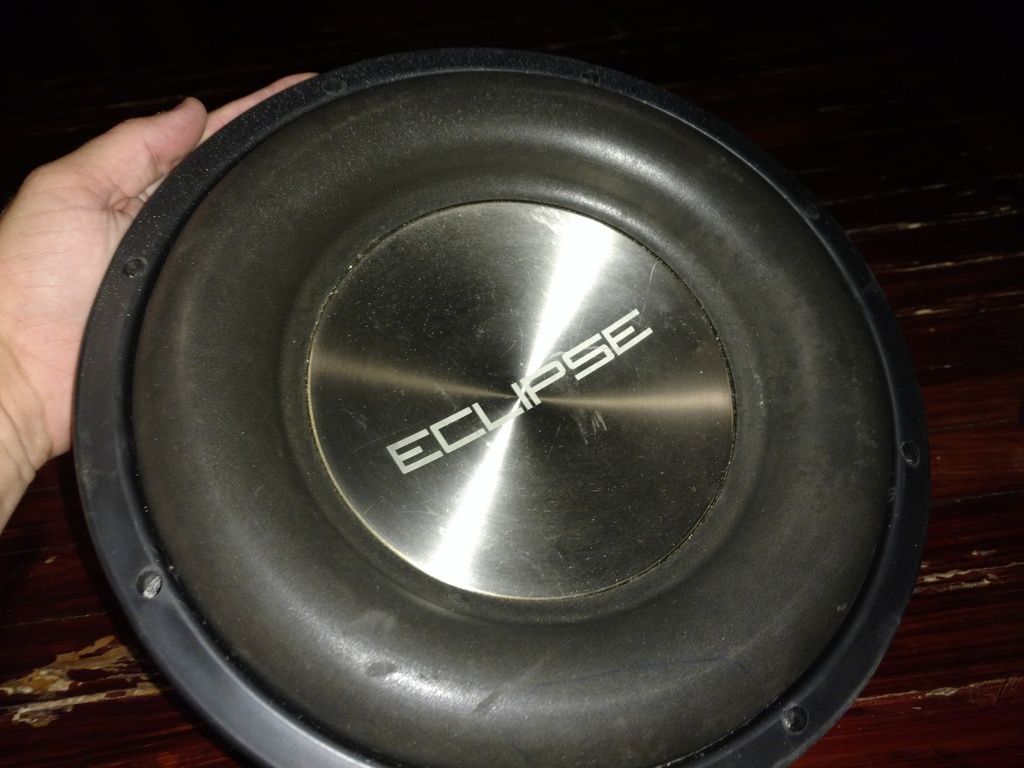

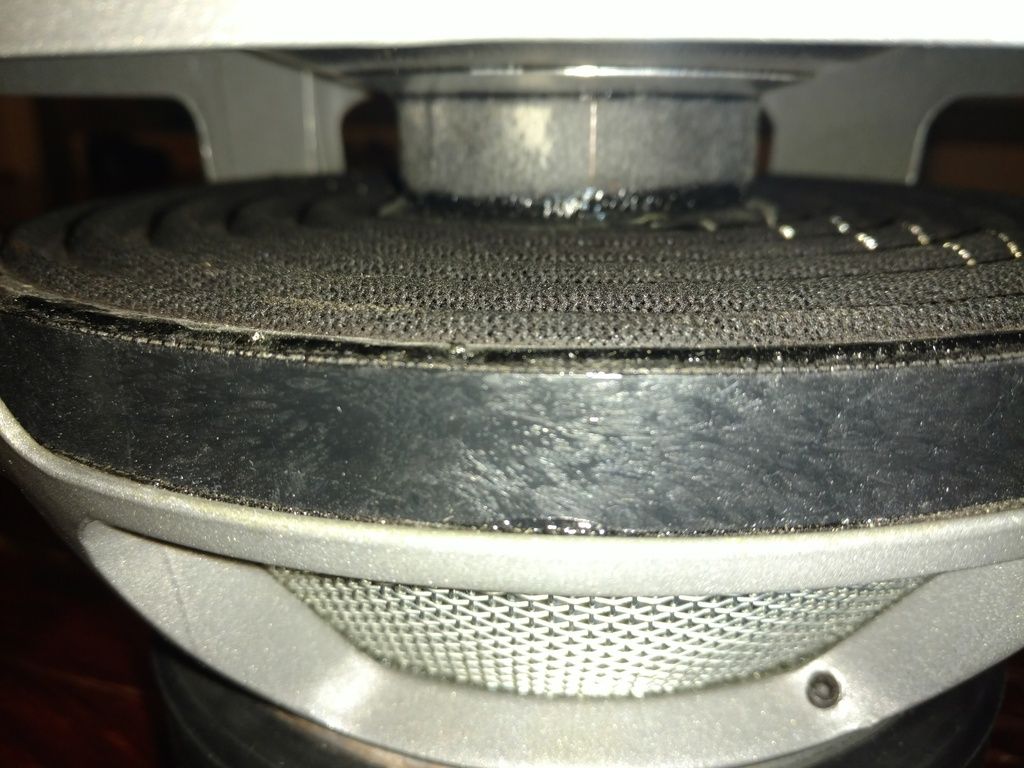

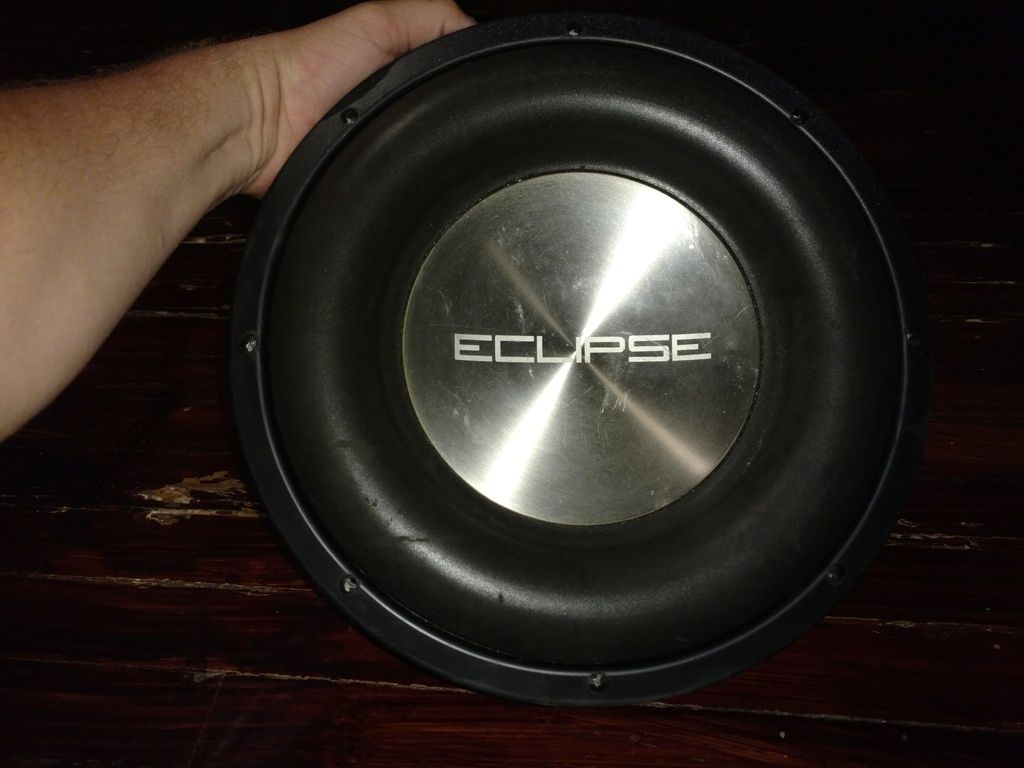

    Item Pictures:













    Past:
    Pioneer Avic N5 Navi + CD-UB100 USB Adapter. Circa '96 PPI Ax606.2 in BLACK with 2 black graphic spacers.
    CDT DRT-25 1'' Silk Dome Tweeters / CDT ES-04 4'' Midranges / RE Audio XXX 6.5'' 2ohm Neo Mids In Glassed Kick Pods
    American Power Systems 240amp H.O. Alty / (2) Deka 8a31, 1/0 front to back.
    Random Prototype 3k @ 1ohm. TRF/PSI 8 layer 4in coil Monster 15 in 3 cubs @ 33Hz / Raammat 40sqft in the trunk.
    NEW SETUP IN THE WORKS
    Quote Originally Posted by Haunz View Post
    You could put 12V to my balls and clamp my dick to get 3kW+.
    Quote Originally Posted by Slayerx View Post
    Glad this got bumped so I could fap to it again.

  2. Likes ciaonzo, The_Grimy_One liked this post



  3. #2
    BassAddictJ's Avatar
    BassAddictJ is offline CarAudio.com Veteran

    Threadstarter


    Join Date
    Apr 2005
    Location
    FL
    Posts
    12,949
    Post Thanks / Like
    Images
    1
    Feedback Score
    37 (100%)
    Mentioned
    1 Post(s)
    Tagged
    1 Thread(s)
    Quoted
    153 Post(s)

    Re: Eclipse Ti 12 ( SW9122)
















    Past:
    Pioneer Avic N5 Navi + CD-UB100 USB Adapter. Circa '96 PPI Ax606.2 in BLACK with 2 black graphic spacers.
    CDT DRT-25 1'' Silk Dome Tweeters / CDT ES-04 4'' Midranges / RE Audio XXX 6.5'' 2ohm Neo Mids In Glassed Kick Pods
    American Power Systems 240amp H.O. Alty / (2) Deka 8a31, 1/0 front to back.
    Random Prototype 3k @ 1ohm. TRF/PSI 8 layer 4in coil Monster 15 in 3 cubs @ 33Hz / Raammat 40sqft in the trunk.
    NEW SETUP IN THE WORKS
    Quote Originally Posted by Haunz View Post
    You could put 12V to my balls and clamp my dick to get 3kW+.
    Quote Originally Posted by Slayerx View Post
    Glad this got bumped so I could fap to it again.

  4. #3
    scparrish's Avatar
    scparrish is offline Senior VIP Member



    Join Date
    Jun 2011
    Location
    texas
    Posts
    163
    Post Thanks / Like
    Feedback Score
    2 (100%)
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    17 Post(s)

    Re: Eclipse Ti 12 ( SW9122)

    I kind of want this. Any interest in a 9152?



    04 F250 Harley
    Components
    Front ID XS-57
    Rear Eclipse SC6500
    crossfire bmf 600.4
    Sub
    sw9122
    crossfire bmf1700

  5. #4
    BassAddictJ's Avatar
    BassAddictJ is offline CarAudio.com Veteran

    Threadstarter


    Join Date
    Apr 2005
    Location
    FL
    Posts
    12,949
    Post Thanks / Like
    Images
    1
    Feedback Score
    37 (100%)
    Mentioned
    1 Post(s)
    Tagged
    1 Thread(s)
    Quoted
    153 Post(s)

    Re: Eclipse Ti 12 ( SW9122)

    Tempting, but I don't have the height in my trunk to make a 15 work.

    I'm looking into a custom ported box build that will allow me to run both my ti 12's ported. If that can be designed and done on a reasonable price I'm keeping both 12's.



    Past:
    Pioneer Avic N5 Navi + CD-UB100 USB Adapter. Circa '96 PPI Ax606.2 in BLACK with 2 black graphic spacers.
    CDT DRT-25 1'' Silk Dome Tweeters / CDT ES-04 4'' Midranges / RE Audio XXX 6.5'' 2ohm Neo Mids In Glassed Kick Pods
    American Power Systems 240amp H.O. Alty / (2) Deka 8a31, 1/0 front to back.
    Random Prototype 3k @ 1ohm. TRF/PSI 8 layer 4in coil Monster 15 in 3 cubs @ 33Hz / Raammat 40sqft in the trunk.
    NEW SETUP IN THE WORKS
    Quote Originally Posted by Haunz View Post
    You could put 12V to my balls and clamp my dick to get 3kW+.
    Quote Originally Posted by Slayerx View Post
    Glad this got bumped so I could fap to it again.

  6. #5
    ciaonzo's Avatar
    ciaonzo is offline TheContinental



    Join Date
    Feb 2009
    Location
    WI
    Age
    42
    Posts
    10,665
    Post Thanks / Like
    Feedback Score
    30 (100%)
    Mentioned
    13 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    1007 Post(s)

    Re: Eclipse Ti 12 ( SW9122)

    Quote Originally Posted by scparrish View Post
    I kind of want this. Any interest in a 9152?
    If OP is not interested in this, would you mind throwing some pics my way via PM? If price and condition are in line, I may grab it.



    Quote Originally Posted by audioholic View Post
    Saying "clipping doesn't kill speakers" is a half-truth at best. Technically no, clipping itself does not hurt the speaker. But in clipping your amp, you can easily create a situation that WILL kill the speaker. Was the squared waveform the DIRECT cause of the failure? No. In the end, the answer is, always has been, and can only be... heat kills speakers. BUT, clipping increases heat generation, sometimes by a drastic amount. So to start a thread simply to state that clipping does not hurt speakers is, again, a half-truth at best.

  7. #6
    hispls's Avatar
    hispls is offline CarAudio.com Veteran



    Join Date
    Sep 2009
    Location
    Cape Cod, Massachusetts
    Posts
    9,376
    Post Thanks / Like
    Images
    15
    Feedback Score
    27 (100%)
    Mentioned
    32 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    3681 Post(s)

    Re: Eclipse Ti 12 ( SW9122)

    3hp will work well in small-ish ported. Issue becomes adequate port length for low tuning. Anyway GLWS, 3hp is a very versatile platform.




  8. #7
    scparrish's Avatar
    scparrish is offline Senior VIP Member



    Join Date
    Jun 2011
    Location
    texas
    Posts
    163
    Post Thanks / Like
    Feedback Score
    2 (100%)
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    17 Post(s)

    Re: Eclipse Ti 12 ( SW9122)

    Quote Originally Posted by BassAddictJ View Post
    Tempting, but I don't have the height in my trunk to make a 15 work.

    I'm looking into a custom ported box build that will allow me to run both my ti 12's ported. If that can be designed and done on a reasonable price I'm keeping both 12's.
    Running 2 12s would be easier for me than the single 15, I am in a similar situation.

    Quote Originally Posted by ciaonzo View Post
    If OP is not interested in this, would you mind throwing some pics my way via PM? If price and condition are in line, I may grab it.
    I am only interested in parting ways with it if I can get a 2nd 12. If that changes I will hit you up.



    04 F250 Harley
    Components
    Front ID XS-57
    Rear Eclipse SC6500
    crossfire bmf 600.4
    Sub
    sw9122
    crossfire bmf1700

  9. #8
    ciaonzo's Avatar
    ciaonzo is offline TheContinental



    Join Date
    Feb 2009
    Location
    WI
    Age
    42
    Posts
    10,665
    Post Thanks / Like
    Feedback Score
    30 (100%)
    Mentioned
    13 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    1007 Post(s)

    Re: Eclipse Ti 12 ( SW9122)

    Quote Originally Posted by scparrish View Post
    I am only interested in parting ways with it if I can get a 2nd 12. If that changes I will hit you up.
    Makes good sense, I appreciate it.



    Quote Originally Posted by audioholic View Post
    Saying "clipping doesn't kill speakers" is a half-truth at best. Technically no, clipping itself does not hurt the speaker. But in clipping your amp, you can easily create a situation that WILL kill the speaker. Was the squared waveform the DIRECT cause of the failure? No. In the end, the answer is, always has been, and can only be... heat kills speakers. BUT, clipping increases heat generation, sometimes by a drastic amount. So to start a thread simply to state that clipping does not hurt speakers is, again, a half-truth at best.

  10. #9
    BassAddictJ's Avatar
    BassAddictJ is offline CarAudio.com Veteran

    Threadstarter


    Join Date
    Apr 2005
    Location
    FL
    Posts
    12,949
    Post Thanks / Like
    Images
    1
    Feedback Score
    37 (100%)
    Mentioned
    1 Post(s)
    Tagged
    1 Thread(s)
    Quoted
    153 Post(s)

    Re: Eclipse Ti 12 ( SW9122)

    Quote Originally Posted by ciaonzo View Post
    Makes good sense, I appreciate it.
    Yeah a pair of these are dope. Hoping to get mine hooked up and blasting off my mmats 1400 soon.



    Past:
    Pioneer Avic N5 Navi + CD-UB100 USB Adapter. Circa '96 PPI Ax606.2 in BLACK with 2 black graphic spacers.
    CDT DRT-25 1'' Silk Dome Tweeters / CDT ES-04 4'' Midranges / RE Audio XXX 6.5'' 2ohm Neo Mids In Glassed Kick Pods
    American Power Systems 240amp H.O. Alty / (2) Deka 8a31, 1/0 front to back.
    Random Prototype 3k @ 1ohm. TRF/PSI 8 layer 4in coil Monster 15 in 3 cubs @ 33Hz / Raammat 40sqft in the trunk.
    NEW SETUP IN THE WORKS
    Quote Originally Posted by Haunz View Post
    You could put 12V to my balls and clamp my dick to get 3kW+.
    Quote Originally Posted by Slayerx View Post
    Glad this got bumped so I could fap to it again.

  11. Likes ciaonzo liked this post
  12. #10
    BassAddictJ's Avatar
    BassAddictJ is offline CarAudio.com Veteran

    Threadstarter


    Join Date
    Apr 2005
    Location
    FL
    Posts
    12,949
    Post Thanks / Like
    Images
    1
    Feedback Score
    37 (100%)
    Mentioned
    1 Post(s)
    Tagged
    1 Thread(s)
    Quoted
    153 Post(s)

    Re: Eclipse Ti 12 ( SW9122)

    Sold



    Past:
    Pioneer Avic N5 Navi + CD-UB100 USB Adapter. Circa '96 PPI Ax606.2 in BLACK with 2 black graphic spacers.
    CDT DRT-25 1'' Silk Dome Tweeters / CDT ES-04 4'' Midranges / RE Audio XXX 6.5'' 2ohm Neo Mids In Glassed Kick Pods
    American Power Systems 240amp H.O. Alty / (2) Deka 8a31, 1/0 front to back.
    Random Prototype 3k @ 1ohm. TRF/PSI 8 layer 4in coil Monster 15 in 3 cubs @ 33Hz / Raammat 40sqft in the trunk.
    NEW SETUP IN THE WORKS
    Quote Originally Posted by Haunz View Post
    You could put 12V to my balls and clamp my dick to get 3kW+.
    Quote Originally Posted by Slayerx View Post
    Glad this got bumped so I could fap to it again.

  13. #11
    scparrish's Avatar
    scparrish is offline Senior VIP Member



    Join Date
    Jun 2011
    Location
    texas
    Posts
    163
    Post Thanks / Like
    Feedback Score
    2 (100%)
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    17 Post(s)

    Re: Eclipse Ti 12 ( SW9122)

    Dang. Congrats on the sale wish I had the dollars laying around for that one.



    04 F250 Harley
    Components
    Front ID XS-57
    Rear Eclipse SC6500
    crossfire bmf 600.4
    Sub
    sw9122
    crossfire bmf1700
