Closed Thread
Results 1 to 11 of 11

Reload Thread: Check my Box Design?

  1. #1
    Disarmer's Avatar
    Disarmer is offline Member



    Join Date
    May 2009
    Location
    Mexia
    Posts
    123
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    12 Post(s)

    Check my Box Design?

    Howdy,
    This will be my first box and I would just like someone knowledgeable here to check and make sure this design will work/sound good. Any opinions welcome.

    Sorry if this post is a bit hard to read, just trying to provide as many details as possible.

    Vehicle : Jeep Wrangler
    Location in the vehicle: Behind rear seat
    Space available (Length x Width x Height): 28"L x 12"W1(bot depth),9"W2(top depth) x 16"H
    Subwoofer make and model: Sundown SA8v.2
    Subwoofer Size: 8"
    Number of Subwoofers: 2
    Type of Port (Kerfed, Slot, Aero, etc.): Slot
    What type of music do you like?: Rap, Country, Hard Rock
    Is your goal SPL or Everyday Music?: Everyday music
    Tuning Freq (Hz): 33.66Hz
    Volume : 1.54 cu/ft net, 2.06 gross



    This is an angled box to fit in a small area (the angled side is facing the back seat (front of vehicle), the straight side is facing the rear door. Subwoofers up, port exits to the driver side (there will be about 8" between the port and the side wall). Other side of the subwoofer box will be against the passenger wall.

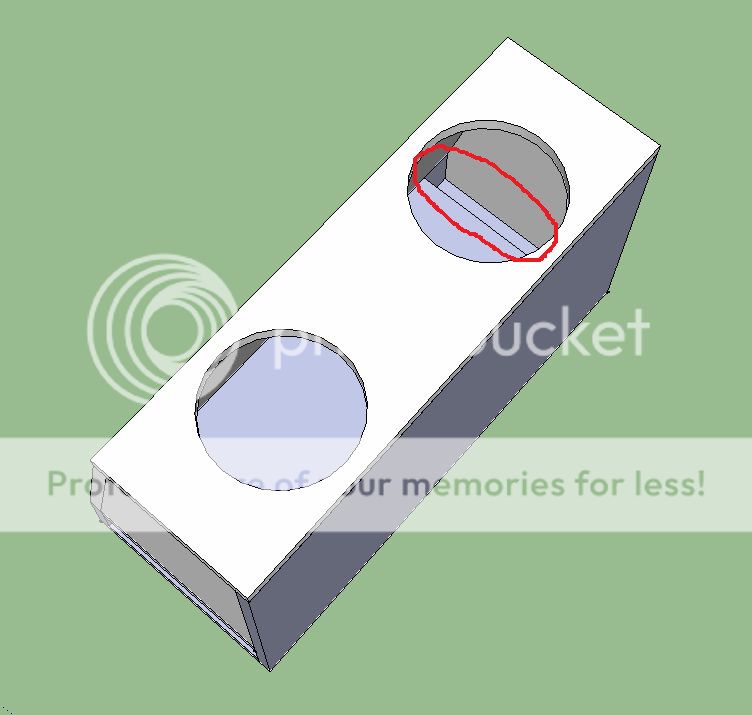

    Here's where my real question lies. In this picture, you can see where my port ends (no turn).

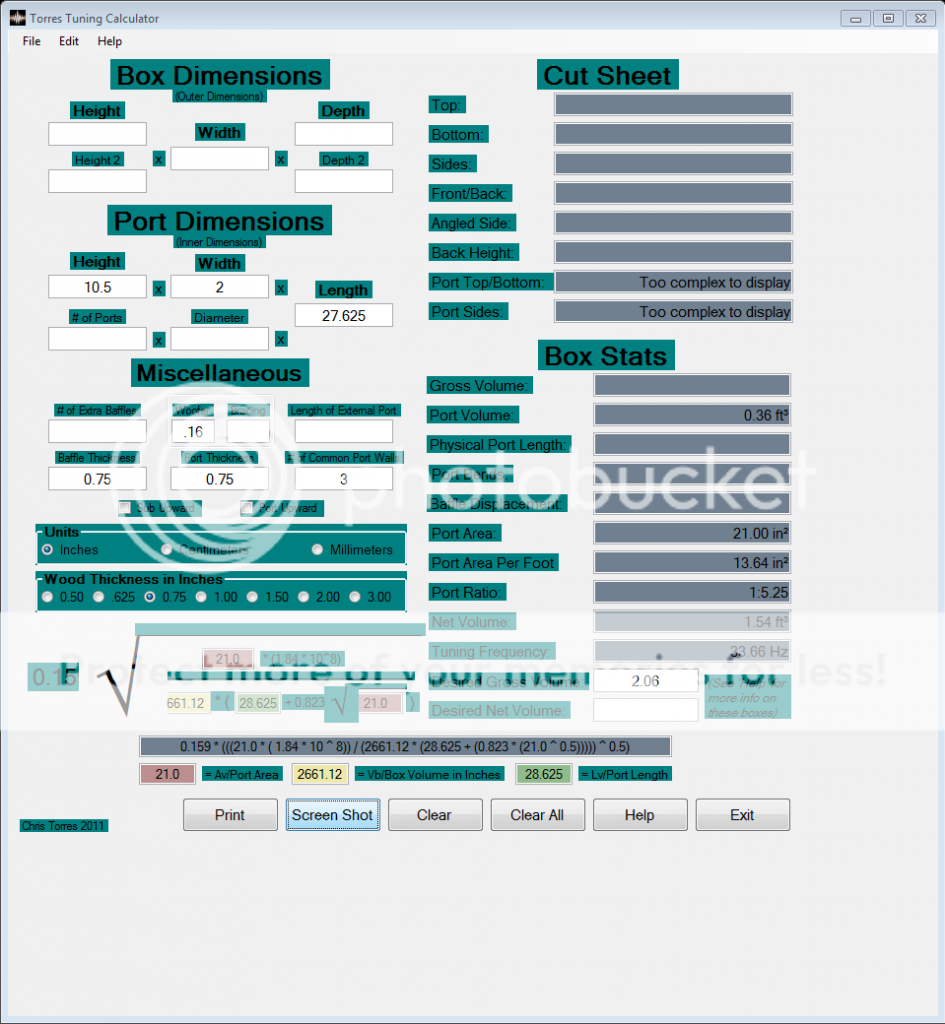

    It runs right back into a wall, but doesn't need more length to turn. In the Torres picture, I've tuned it to the point where the port wall terminates exactly 2" from the side wall (in order to continue the 2" port around the corner just a bit).

    The port wall itself (from the outside edge of the box) is 25.25". When measuring around in Sketchup, I believe that makes my overall port length to be 27.625" (which is what I used in Torres to find the current tuning). Can anyone confirm that this is correct? (If you need more clarification here, just ask)

    Any other opinions/suggestions/thoughts on the box?

    Thanks for any help
    Last edited by Disarmer; 12-08-2012 at 01:39 AM.



    Bought from UMWDawg92, Dpc69ss.




  2. #2
    mklett33's Avatar
    mklett33 is offline Mark -CarAudioFabrication



    Join Date
    Nov 2008
    Location
    MI
    Posts
    370
    Post Thanks / Like
    Images
    1
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    54 Post(s)

    Re: Check my Box Design?

    Looks good, hard to tell exactly what you mean without seeing the dimensions on the drawing but I think if you are saying that the centerline of the port measures 27.625 inches you should be good. If you have a roundover bit and a router roundover the end of the port so it is nice and smooth.

    Thanks for using the format from my thread! Much more useful information here!



    -Mark @caraudiofab

    http://www.youtube.com/caraudiofabrication
    ^Learn to design, fiberglass, install, and more!^

    >>> www.caraudiofabrication.com <<<

  3. Thanks Disarmer thanked for this post
  4. #3
    Disarmer's Avatar
    Disarmer is offline Member

    Threadstarter


    Join Date
    May 2009
    Location
    Mexia
    Posts
    123
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    12 Post(s)

    Re: Check my Box Design?

    Yeah, I believe the centerline of the port measures 27.625 inches. I don't have a router, but I think I might can borrow one for a bit so we shall see how it goes.

    Thanks!



    Bought from UMWDawg92, Dpc69ss.

  5. #4
    mklett33's Avatar
    mklett33 is offline Mark -CarAudioFabrication



    Join Date
    Nov 2008
    Location
    MI
    Posts
    370
    Post Thanks / Like
    Images
    1
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    54 Post(s)

    Re: Check my Box Design?

    Quote Originally Posted by Disarmer View Post
    Yeah, I believe the centerline of the port measures 27.625 inches. I don't have a router, but I think I might can borrow one for a bit so we shall see how it goes.

    Thanks!
    You can use it to make all the corners nice and smooth, and if you have a flush trim bit you can even make sure that all sides of the box are dead on accurate.



    -Mark @caraudiofab

    http://www.youtube.com/caraudiofabrication
    ^Learn to design, fiberglass, install, and more!^

    >>> www.caraudiofabrication.com <<<

  6. Thanks Disarmer thanked for this post
  7. #5
    Disarmer's Avatar
    Disarmer is offline Member

    Threadstarter


    Join Date
    May 2009
    Location
    Mexia
    Posts
    123
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    12 Post(s)

    Re: Check my Box Design?

    Thanks. One last question... will placement of subwoofers affect the sound very much?

    i.e. Should I keep them equally spread like they are, or put them both towards one side? If the latter, then which side?



    Bought from UMWDawg92, Dpc69ss.

  8. #6
    mylows10's Avatar
    mylows10 is offline Dc,tantric,singer,phd rep mylows10 is a Supporting Member of the forum!

    mylows10 is a Supporting Vendor of the forum!

    Join Date
    Sep 2009
    Location
    monterey , ca
    Age
    51
    Posts
    19,419
    Post Thanks / Like
    Images
    9
    Mentioned
    7 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    5112 Post(s)

    Re: Check my Box Design?

    yes it can ,because displacement makes the inside of the box smaller




    pioneer avhx 5500 dvd, gzpa 1.4000 x 2
    ab vfl 350.4 ,7 pc 2150 and a 150 ah power ware agm ,275 amp singer alt , 2nd one coming soon
    cdt 6.5 es 6 mids,cdt es 010 tweets,es 03 Mids ,mx1000 3 way x overs , sky high and stinger hpm o gauge wires ,also 2 tantric hdd 15's in a 9.5. ^3 ported no wall box 11.5 octo port.
    NOR CAL DB DRAG JUDGE
    http://www.dcsoundlab.com

  9. #7
    Disarmer's Avatar
    Disarmer is offline Member

    Threadstarter


    Join Date
    May 2009
    Location
    Mexia
    Posts
    123
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    12 Post(s)

    Re: Check my Box Design?

    Not displacement. I have accounted for subwoofer displacement in my design. I'm simply talking about the placement of the subwoofers on top of the box. Would it be best to keep them evenly spaced like they are in my pictures, or should I place them tightly together on one side of this box?



    Bought from UMWDawg92, Dpc69ss.

  10. #8
    mylows10's Avatar
    mylows10 is offline Dc,tantric,singer,phd rep mylows10 is a Supporting Member of the forum!

    mylows10 is a Supporting Vendor of the forum!

    Join Date
    Sep 2009
    Location
    monterey , ca
    Age
    51
    Posts
    19,419
    Post Thanks / Like
    Images
    9
    Mentioned
    7 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    5112 Post(s)

    Re: Check my Box Design?

    really doesn't matter .un less you want a higher spl sound then place them over the port exit




    pioneer avhx 5500 dvd, gzpa 1.4000 x 2
    ab vfl 350.4 ,7 pc 2150 and a 150 ah power ware agm ,275 amp singer alt , 2nd one coming soon
    cdt 6.5 es 6 mids,cdt es 010 tweets,es 03 Mids ,mx1000 3 way x overs , sky high and stinger hpm o gauge wires ,also 2 tantric hdd 15's in a 9.5. ^3 ported no wall box 11.5 octo port.
    NOR CAL DB DRAG JUDGE
    http://www.dcsoundlab.com

  11. Thanks Disarmer thanked for this post
  12. #9
    mlstrass's Avatar
    mlstrass is offline Shaggy DOA



    Join Date
    Jul 2006
    Location
    Illinois
    Posts
    10,527
    Post Thanks / Like
    Mentioned
    1 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    1164 Post(s)

    Re: Check my Box Design?

    I would move the one that seems to be right over the port opening. Put it closer to the other sub, so the backwave isn't partially hit port wall and partially going right into port opening.

    At least it looks that way in the drawing...




  13. Thanks Disarmer thanked for this post
  14. #10
    Disarmer's Avatar
    Disarmer is offline Member

    Threadstarter


    Join Date
    May 2009
    Location
    Mexia
    Posts
    123
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    12 Post(s)

    Re: Check my Box Design?

    It's pretty close. I'll move that one over a bit. Thanks guys



    Bought from UMWDawg92, Dpc69ss.

  15. #11
    mylows10's Avatar
    mylows10 is offline Dc,tantric,singer,phd rep mylows10 is a Supporting Member of the forum!

    mylows10 is a Supporting Vendor of the forum!

    Join Date
    Sep 2009
    Location
    monterey , ca
    Age
    51
    Posts
    19,419
    Post Thanks / Like
    Images
    9
    Mentioned
    7 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    5112 Post(s)

    Re: Check my Box Design?

    put the one sub over the port exit hole and the other as close as you can get it the the first sub ,then a 45 under the subs to direct the air flow
    like these ,the longer one would be the best tho




    pioneer avhx 5500 dvd, gzpa 1.4000 x 2
    ab vfl 350.4 ,7 pc 2150 and a 150 ah power ware agm ,275 amp singer alt , 2nd one coming soon
    cdt 6.5 es 6 mids,cdt es 010 tweets,es 03 Mids ,mx1000 3 way x overs , sky high and stinger hpm o gauge wires ,also 2 tantric hdd 15's in a 9.5. ^3 ported no wall box 11.5 octo port.
    NOR CAL DB DRAG JUDGE
    http://www.dcsoundlab.com

Closed Thread

Similar Threads

  1. Double Check My Box Design
    By muskyhunter567 in forum Enclosure Design & Construction Help
    Replies: 2
    Last Post: 10-09-2008, 02:09 PM
  2. check my box design (10" RE SE)
    By mustangowner in forum Enclosure Design & Construction Help
    Replies: 19
    Last Post: 08-20-2007, 02:22 PM
  3. Someone check my box design? Make sure it works
    By billabongcr in forum Enclosure Design & Construction Help
    Replies: 4
    Last Post: 03-04-2007, 08:01 AM
  4. Check my box design out
    By GI JOEY in forum Enclosure Design & Construction Help
    Replies: 2
    Last Post: 05-08-2006, 02:09 PM
  5. who wants to check my box design?
    By cardinalsfan in forum Enclosure Design & Construction Help
    Replies: 6
    Last Post: 12-12-2005, 09:41 AM

User Tag List

Posting Permissions

  • You may not post new threads
  • You may post replies
  • You may post attachments
  • You may edit your posts
1e2 Forum
