    question on this port/enclosure design

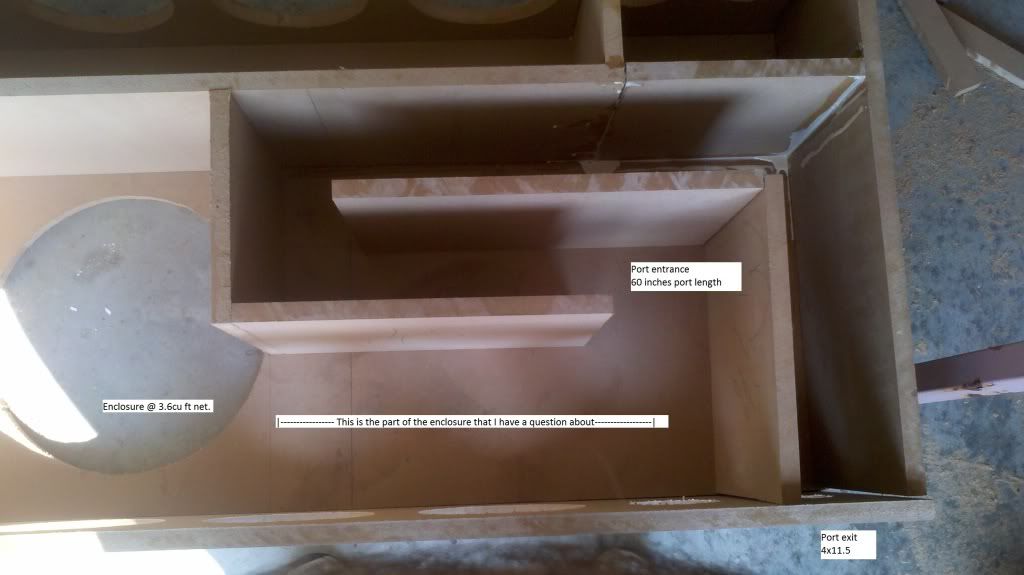

    Ok, I am building some home speakers with a ported 15 inch sub in the side. It is seperated from all the other drivers by an internal baffle. When you look at the below pic, you will see the port entrance. Due to the port length that I want, I have to do a turnaround. The entrance for the port will be approx 6.5 inches from the back wall of the main box. My question is, will the upper part of the enclosure act as a port, or will it act as enclosure dut to it being larger than the port itself?


    Thanks for any help



    '08 Dodge Dakota Crew Cab
    Head: Clarion VZ401
    Mids: Diamond D9-71 component set
    Subs: Team PSI platform 2 18"d4 in 4 cu.ft
    Amps: Soundstream REF 4.760, Hifonics BXI2610d @ 2ohms(1700 rms)
    refs-here: Spooney, mj-tc, Cleansoundz, rc10mike, kmanian, cozce, Spy, ewoevo, stylez12321, stirfri4202,nihl8ion
    ssa: sundownz, mike@ssa, BKOLFO4
    DIYMA: lashlee, nigel1977, Ibizonacid
    CACO: snyderd758




  2. #2
    surreal's Avatar
    surreal is offline On my katy perry sht



    Join Date
    Jan 2010
    Location
    OK
    Posts
    615
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    8 Post(s)

    Re: question on this port/enclosure design

    Could essentially act as a port. Most people would consider it chamber and the performance balance may be relatively close though measurable. Should have just zigzagged it up and down.
