    Build Log for 4Nine: 2x 12's Ported (Dual Kerfed Ports)

    Well i started a build for a local around me that a friend was going to take care of and he passed him off to me. Old School guy, wanted a box that would be cosmetically appealing, flat response, able to play all genres of music, from old school rap to rock, and everything in between.

    Each 12" Re Se subwoofer is placed in a 2.3 ft^3 (net) chamber tuned to 29hz. The box is a top firing / port back enclosure design for a tahoe. The Dual slot ports are kerfed. Box will have angle bracing as well. Subs will be flush mounted, and the box is going to have legs to let wiring pass under it. for a huge display rack that we will be building when he comes to pick up the box. (for his amps, crossovers, distros, fuse blocks, and battery.

    I believe hes running 2 x600.1 PG AMPs, and a 300.4 for his mids. which are PG RSD's.

    Anyway. On to the pictures of some progress.

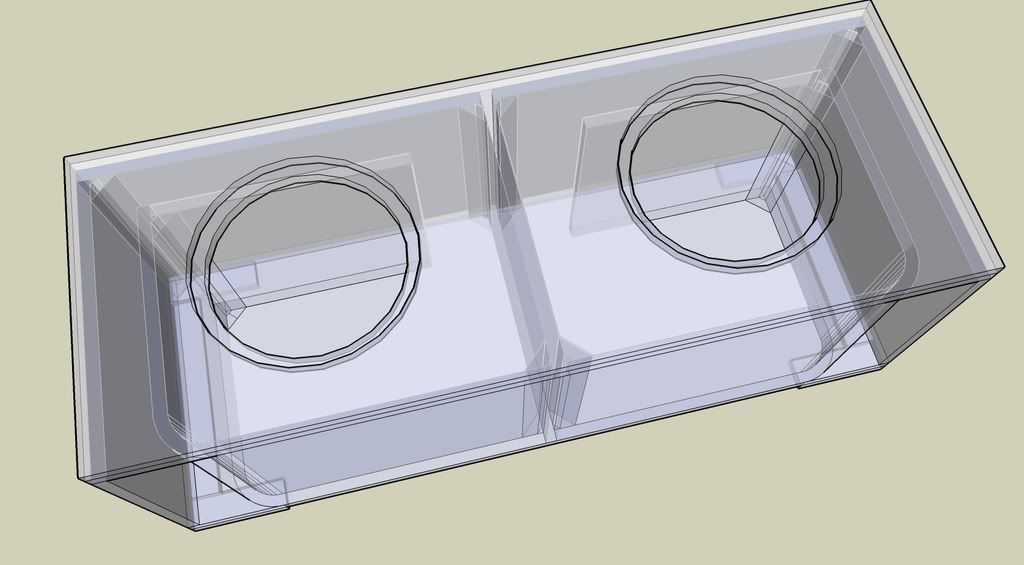

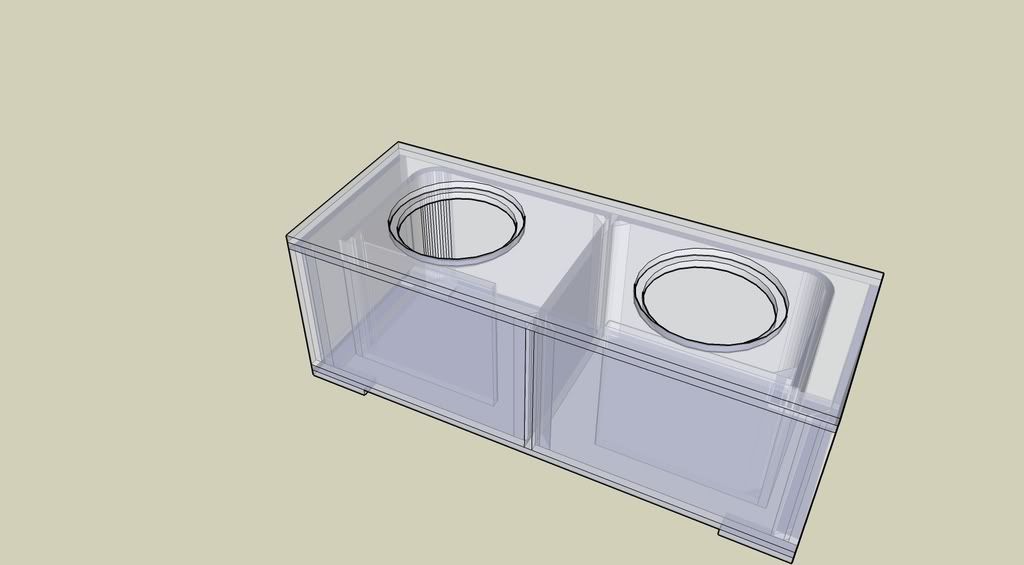

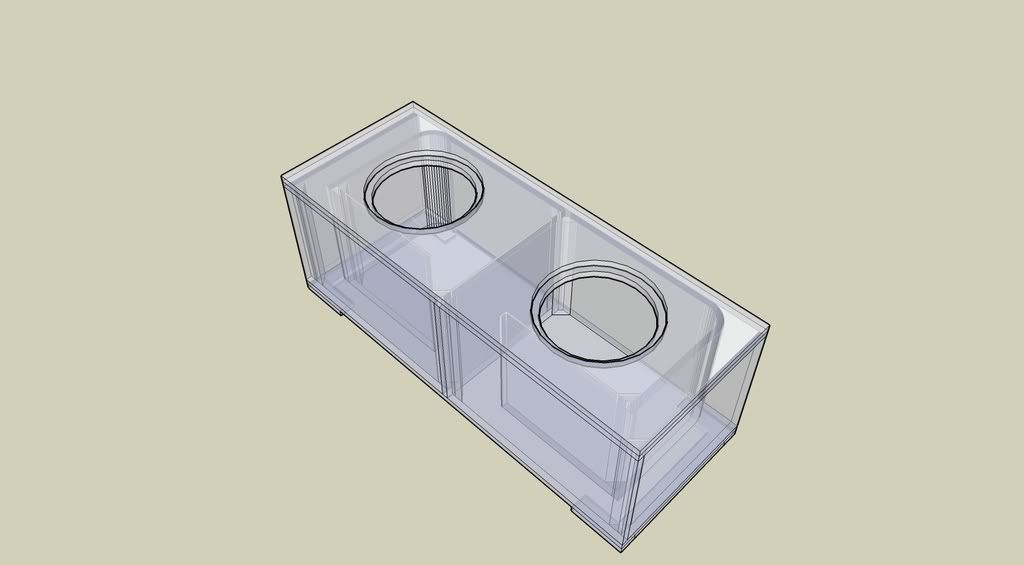

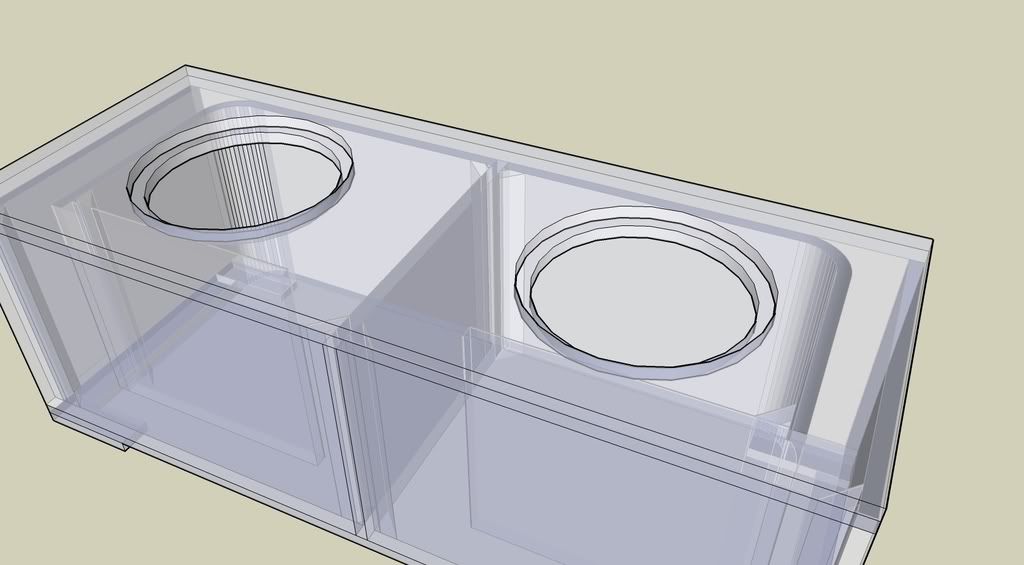

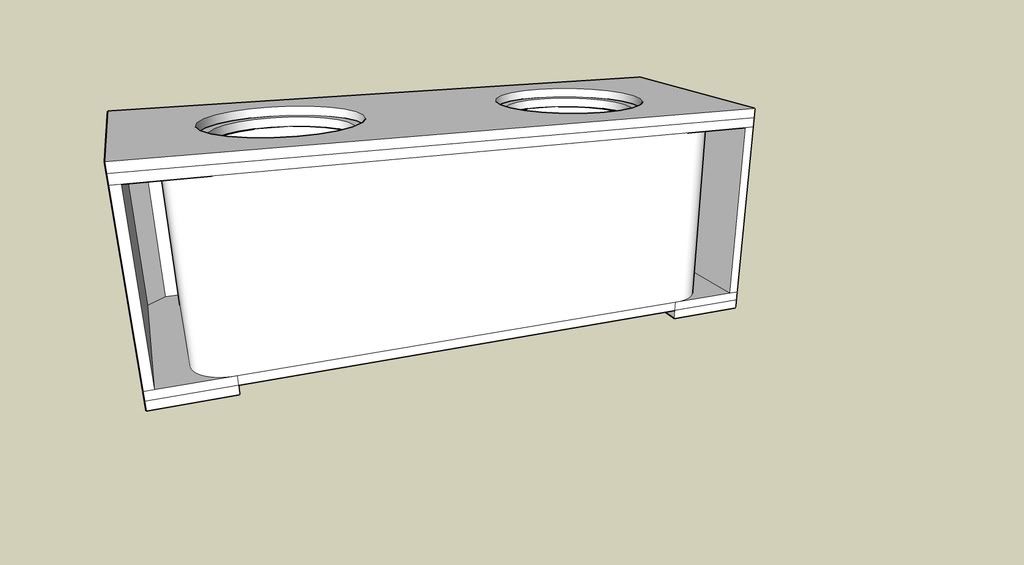

    Design (Dimensions Ext: 47.5W x 17H (without legs and Double Baffle) x 18D) Each Port is 2.25 x 15.5"

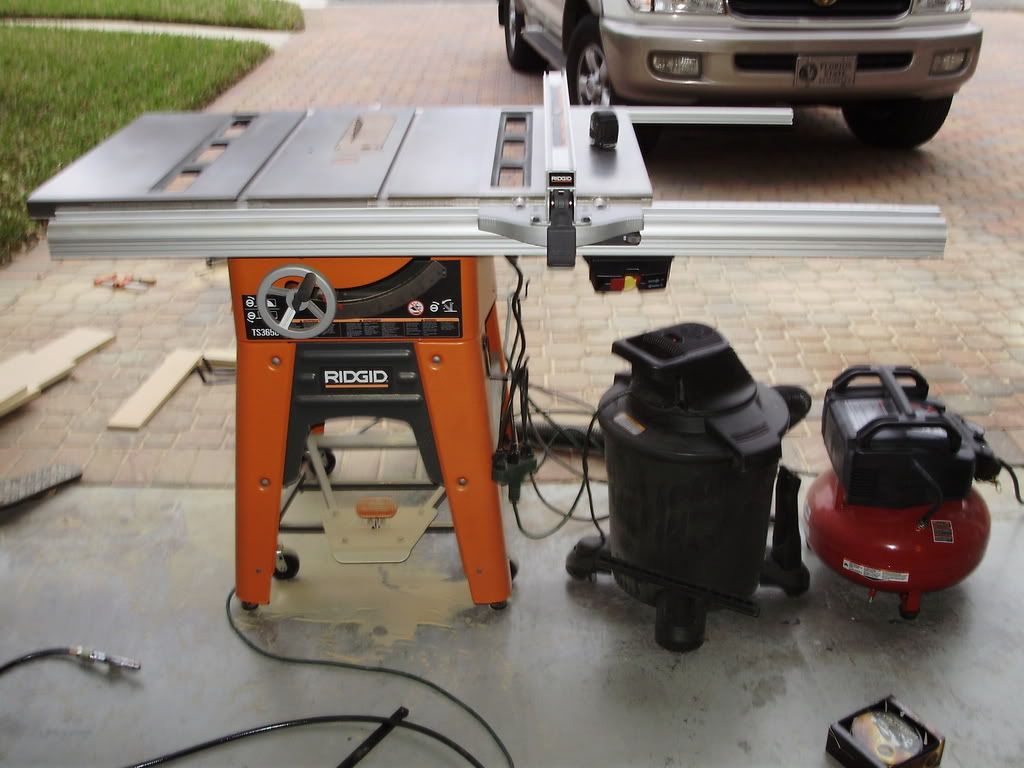

    Setup (Rigid Contractor Saw TS-3660 (with zero cleareance insert, Porter compressor / nailer.)



    Cuts Lined Up

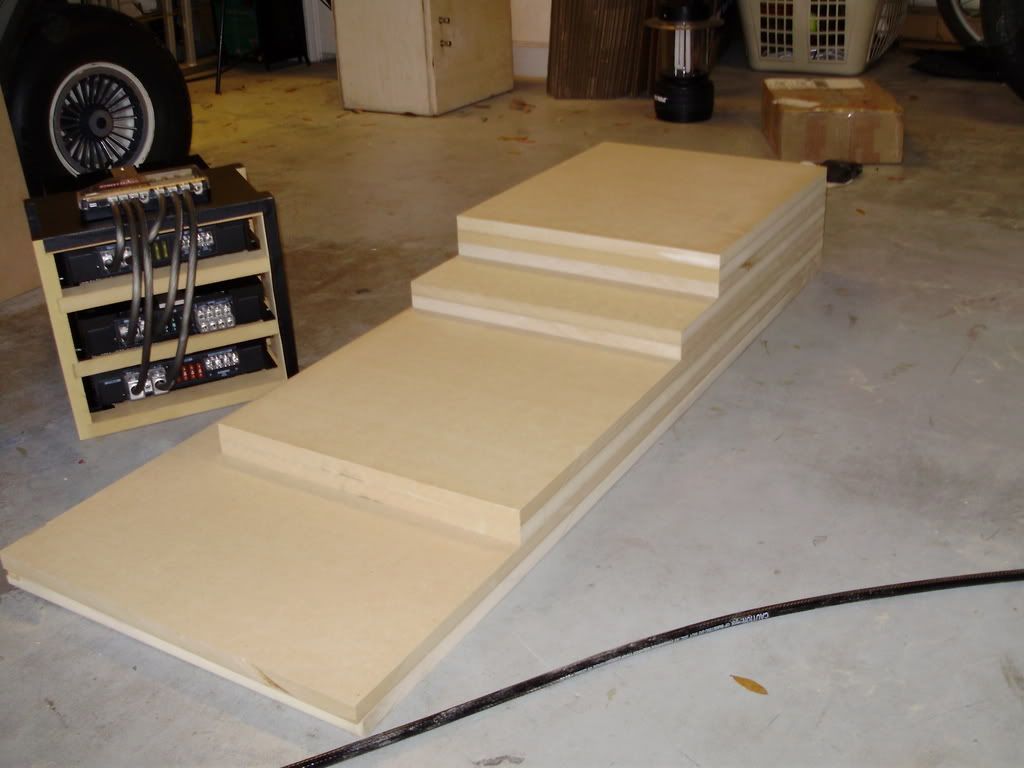

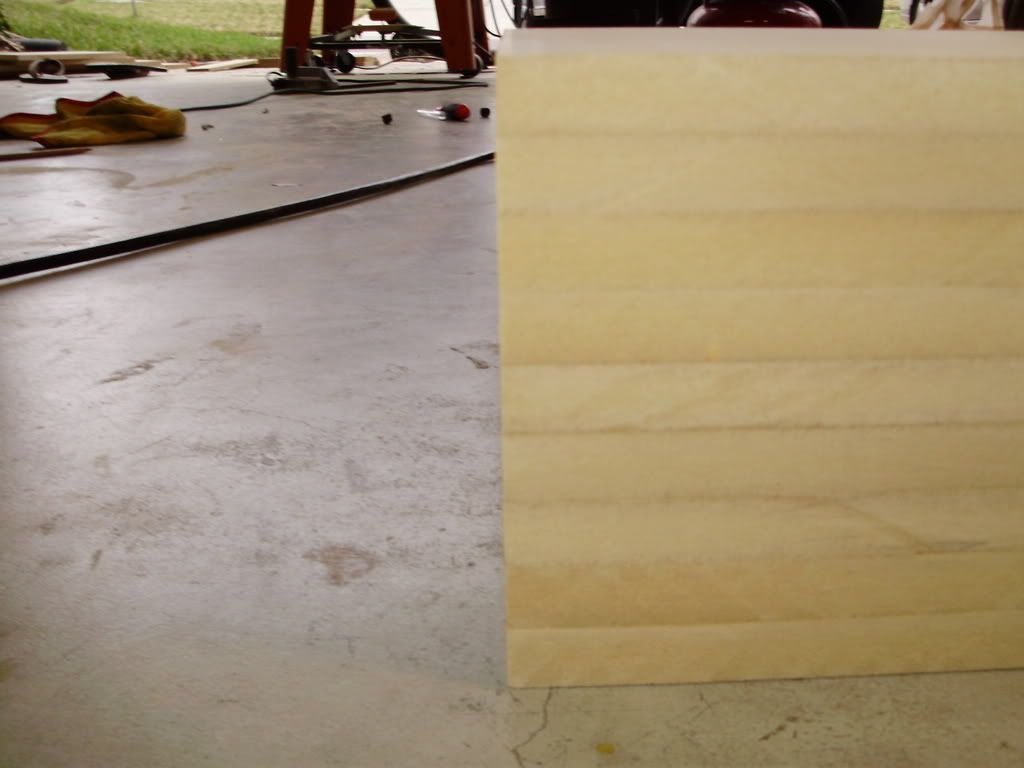

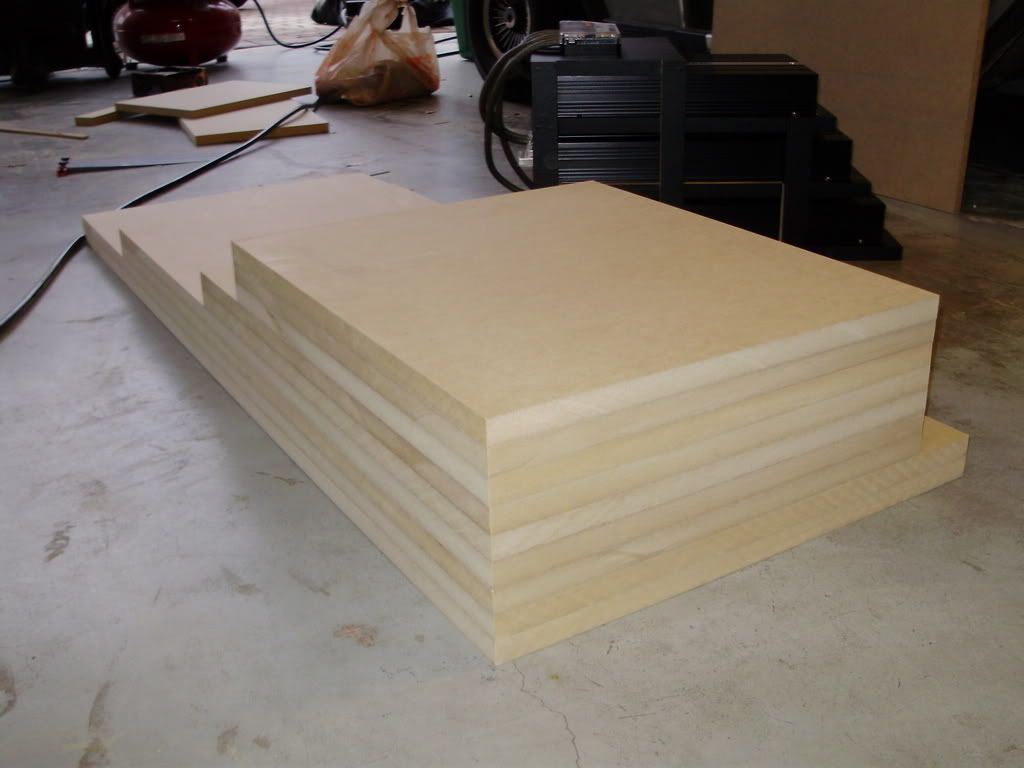

    Lined Up. so straight. Table Saw > circular saw and sanding


    Last edited by theothermike; 02-19-2009 at 08:49 AM.
