Reload Thread: My first design/sketchup. Need opinions.

  1. #1
    Atimm693's Avatar
    Atimm693 is offline Shadetree Mechanic



    Join Date
    Nov 2006
    Location
    Up the down escalator
    Posts
    2,569
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    15 Post(s)

    My first design/sketchup. Need opinions.

    This is the first design ive done by myself, before i used REs calculator or something similar. This time i used WiniSD to calculate the port length and a calculator for the ft^3. This is also the first sketchup ive done. It took me awhile but i think ive figured it out.

    The box is supposed to be 2.1 cubes before displacements tuned to 25 htz for HT. Its for one ED EHQS 8. One question i have is how to get the port length i have, i just took the width of the box (11") and doubled plus 8 inches for the slot under it.The port is 1.5 inches wide and supposed to be 30 inches long. If im right ill probably start the build tomorrow or possibly tonight.

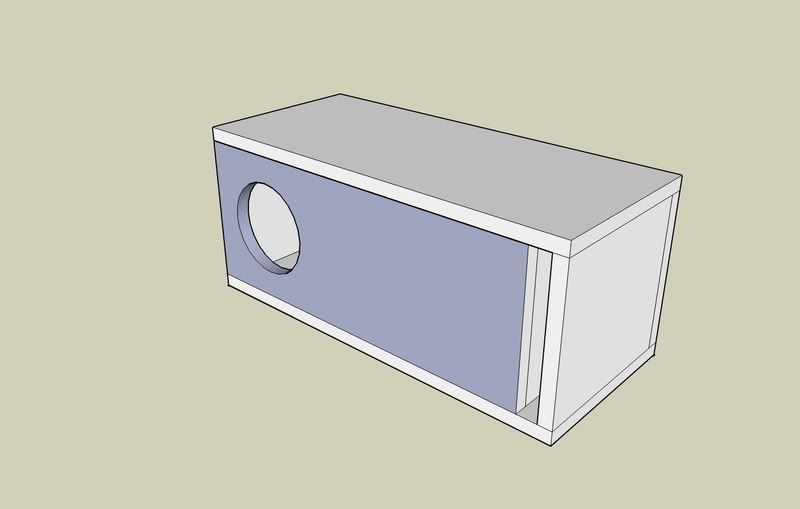

    Sketchup:




    EDIT: The box is 11x11x28 internal dimensions, the wood is 1" thick.



    1994 Toyota Camry
    Pioneer DEHP6400BT
    Rockford Fosgate 1050S
    12" DD 3512C
    2.5 cuft, 35hz
    1050wrms@4ohms




  2. #2
    BrianChia's Avatar
    BrianChia is offline CarAudio.com Elite



    Join Date
    May 2007
    Location
    Knoxville/Nashville TN
    Posts
    1,292
    Post Thanks / Like
    Images
    1
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    0 Post(s)

    Re: My first design/sketchup. Need opinions.

    You don't want to fold the port like that. You'll get better results if you make it with as few turns as possible (ie. go straight up along the back wall; this gives only (1) 90 deg. turn instead of (4) 90 deg. turns/(2) 180 deg. turns).

    As far as measuring the port, the port length should be measured straight down the center of the port as shown below (measured by the black line going down the center). The internal "mouth" of the port is usually measured along a 45 deg. angle to the cutoff of the slot opening, as an "end correction" since the effective length of the port extends slightly past the wall. This is really just an estimate and often makes a negligible difference since many other factors can affect the effective length of the port such as width/length ratio, turns, etc. Tuning will never be exact as calculated by forumla but but will vary slightly due to many other factors. As long as you're close there should be no audible difference.





  3. #3
    Atimm693's Avatar
    Atimm693 is offline Shadetree Mechanic

    Threadstarter


    Join Date
    Nov 2006
    Location
    Up the down escalator
    Posts
    2,569
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    15 Post(s)

    Re: My first design/sketchup. Need opinions.

    Heres another one i made, with the port like you said.



    Any better?



    1994 Toyota Camry
    Pioneer DEHP6400BT
    Rockford Fosgate 1050S
    12" DD 3512C
    2.5 cuft, 35hz
    1050wrms@4ohms

  4. #4
    BrianChia's Avatar
    BrianChia is offline CarAudio.com Elite



    Join Date
    May 2007
    Location
    Knoxville/Nashville TN
    Posts
    1,292
    Post Thanks / Like
    Images
    1
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    0 Post(s)

    Re: My first design/sketchup. Need opinions.

    Yes, I like that design better. What are you powering it with?




  5. #5
    Atimm693's Avatar
    Atimm693 is offline Shadetree Mechanic

    Threadstarter


    Join Date
    Nov 2006
    Location
    Up the down escalator
    Posts
    2,569
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    15 Post(s)

    Re: My first design/sketchup. Need opinions.

    For now an RCA HTIB that IIRC does 100 RMS off the sub channel.



    1994 Toyota Camry
    Pioneer DEHP6400BT
    Rockford Fosgate 1050S
    12" DD 3512C
    2.5 cuft, 35hz
    1050wrms@4ohms

  6. #6
    mobeious's Avatar
    mobeious is offline what does 0hz feel like?



    Join Date
    May 2004
    Location
    Bartow, FL
    Posts
    4,839
    Post Thanks / Like
    Images
    26
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    2 Post(s)

    Re: My first design/sketchup. Need opinions.

    if i were u i would make the box longer so the port didnt have to L and shoot it strait out the side of the port and move ur sub to the other end of the box



    Alpine CDA-9833
    (2)sets Cresendo ccx65


    Box Engineer for

  7. #7
    Atimm693's Avatar
    Atimm693 is offline Shadetree Mechanic

    Threadstarter


    Join Date
    Nov 2006
    Location
    Up the down escalator
    Posts
    2,569
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    15 Post(s)

    Re: My first design/sketchup. Need opinions.

    Quote Originally Posted by mobeious View Post
    if i were u i would make the box longer so the port didnt have to L and shoot it strait out the side of the port and move ur sub to the other end of the box
    The wood i have laying around isnt the right size for that.

    Does anyone know how to show the dimensions on sketchup?



    1994 Toyota Camry
    Pioneer DEHP6400BT
    Rockford Fosgate 1050S
    12" DD 3512C
    2.5 cuft, 35hz
    1050wrms@4ohms

  8. #8
    BuckyBoy's Avatar
    BuckyBoy is offline Box Designer/Builder



    Join Date
    Oct 2007
    Location
    Northeast GA
    Age
    25
    Posts
    922
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    0 Post(s)

    Re: My first design/sketchup. Need opinions.

    There is a tape measure on the toolbar. Click it and then click the line you want to know the dimensions of and drag it.




    www.smith-customs.com
    Find Smith Customs on Facebook!

    References: Vexter 0944, Lingerfelt, riddla, Exploder 97, dillinja666, king ranch, chopsu3i, bonesninja, sxkicker89, djessenz, hl26, btdickey99, JLMaster, jbirrd15, bones22, belbo, 99grandprixGT, woody89, viebotls, garrettpf, SPL140.2, alex5857, Pickler, simpsonbuck, Rickikaye69, Bettr n' Revrse, swollen_cu


  9. #9
    Atimm693's Avatar
    Atimm693 is offline Shadetree Mechanic

    Threadstarter


    Join Date
    Nov 2006
    Location
    Up the down escalator
    Posts
    2,569
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    15 Post(s)

    Re: My first design/sketchup. Need opinions.

    Quote Originally Posted by BuckyBoy View Post
    There is a tape measure on the toolbar. Click it and then click the line you want to know the dimensions of and drag it.
    I know that but how do i get it to display them on all the panels.



    1994 Toyota Camry
    Pioneer DEHP6400BT
    Rockford Fosgate 1050S
    12" DD 3512C
    2.5 cuft, 35hz
    1050wrms@4ohms

  10. #10
    BrianChia's Avatar
    BrianChia is offline CarAudio.com Elite



    Join Date
    May 2007
    Location
    Knoxville/Nashville TN
    Posts
    1,292
    Post Thanks / Like
    Images
    1
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    0 Post(s)

    Re: My first design/sketchup. Need opinions.

    The Dimensions button isn't on the standard toolset. You need to go to View -> Toolbars -> "Large Tool Set". Then click on the dimensions button which is right next to the tape measure. Then you can get a dimension on any two points in the model.
