    05 Acura TL, DD 9518, M2a, ported rear deck

    Hey guys, thought I would share my new build here.

    05 Acura TL

    Pioneer avh-4800bs

    Vifa XT19 tweets

    Silver flute 8's

    Rockford T400-4 bridged

    DD 9518g

    DD M2a

    7 cubes net, 32hz, 2 6" ports through rear deck. Diy flared

    2/0 Lincoln Electric welding cable



    Started out with 1 stereo integrity HT18 infinite baffle on a jbl bp600.1

    Loved how clean and smooth it was, could hit any note. Played 10hz test tone effortlessly. Just not enough output for me. Also had to angle the baffle back quite a bit to fit it.

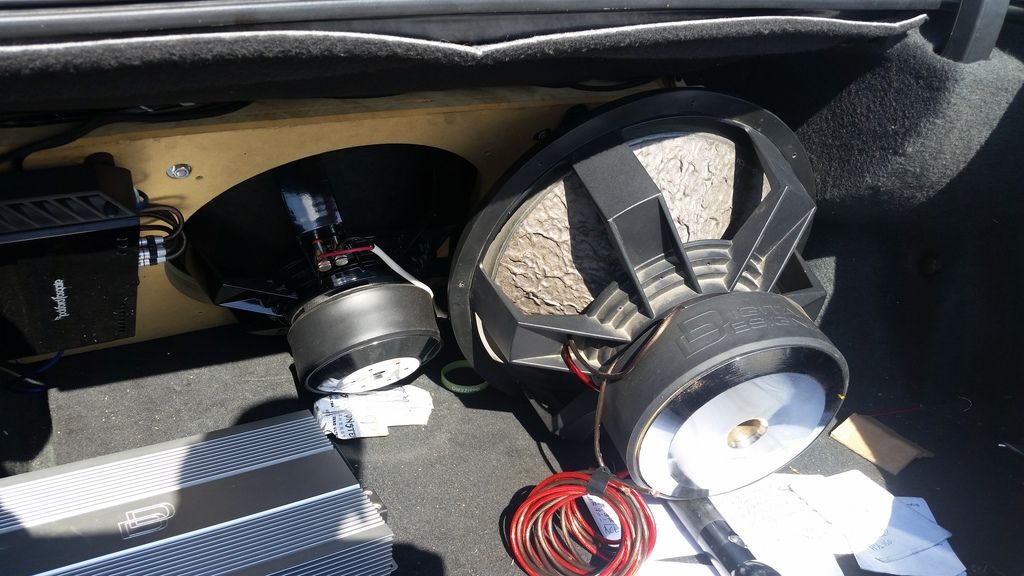

    So I caught a good deal on the DD sub and amp from a buddy, and proceeded to make it fit. Had to cut some metal out. And since my back seat doesn't fold, just the arm rest. I decided to port through the rear deck. Had to build the box in 2 parts to fit it in the trunk. Ended up reusing my baffle from my IB setup. 2 layers with a 3rd flushed.*

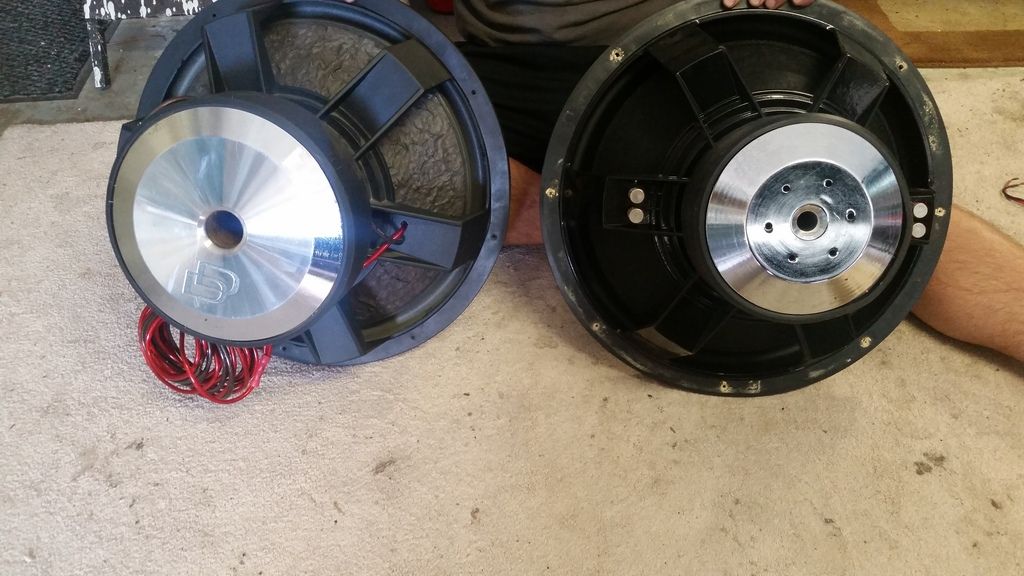

    The DD next to the SI

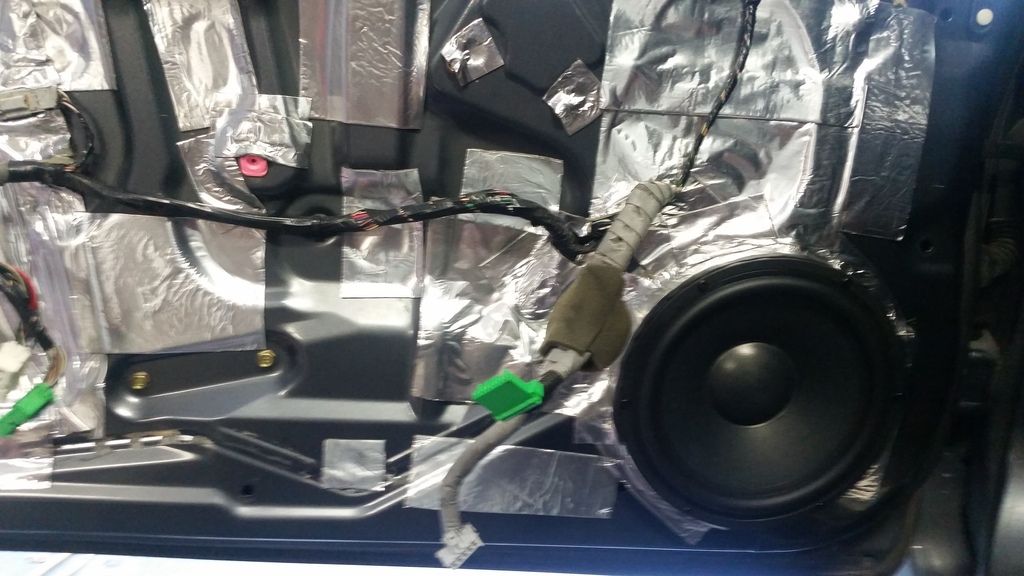

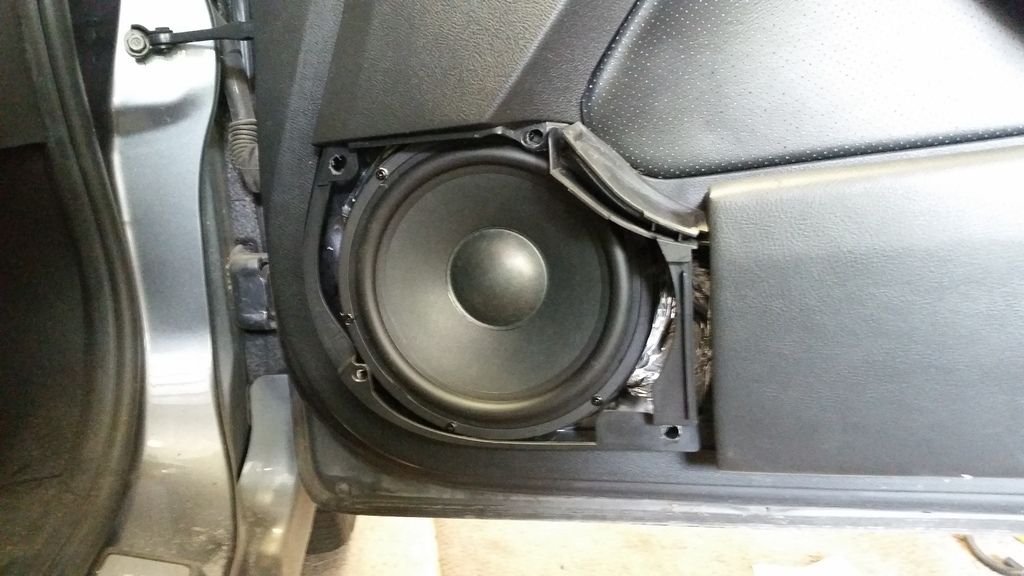

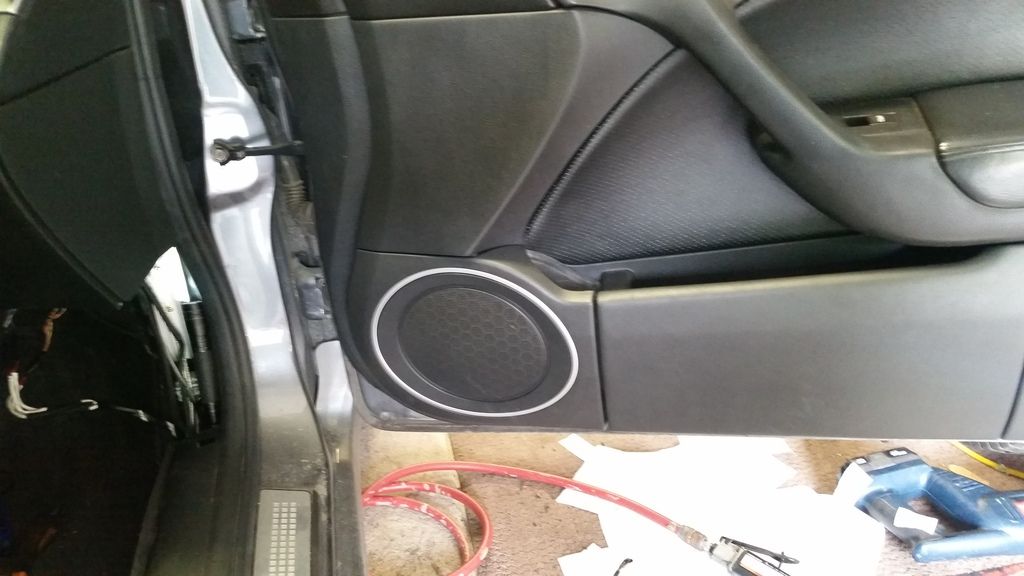

    The 8s in the doors. Pain in the rear!!

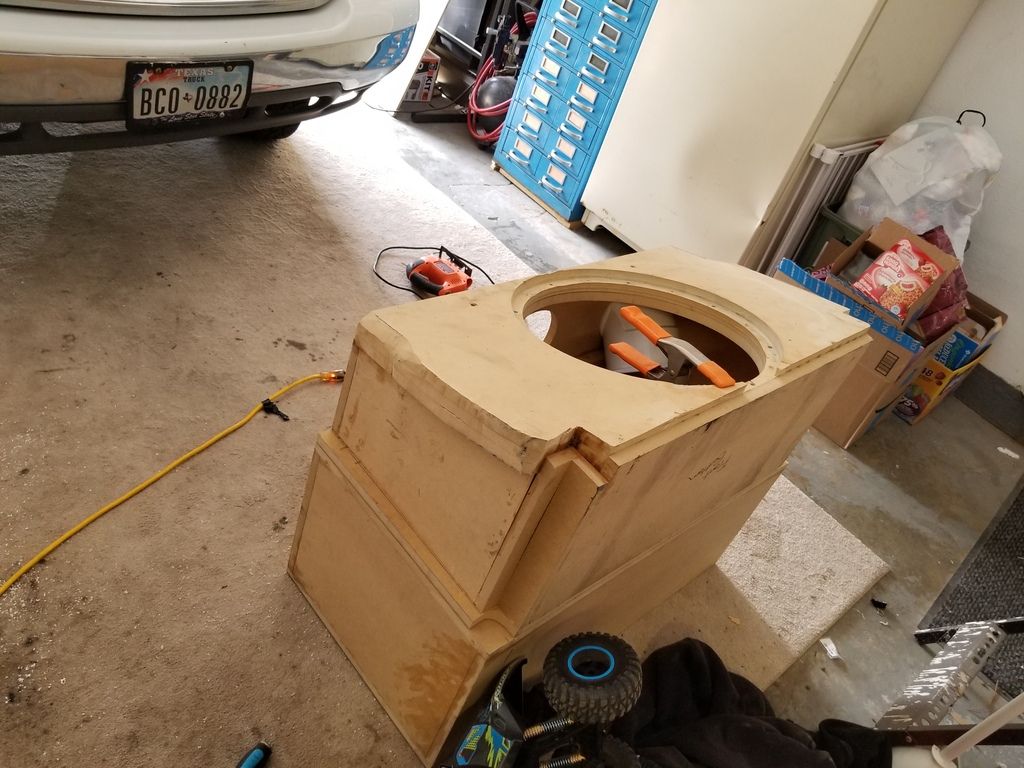

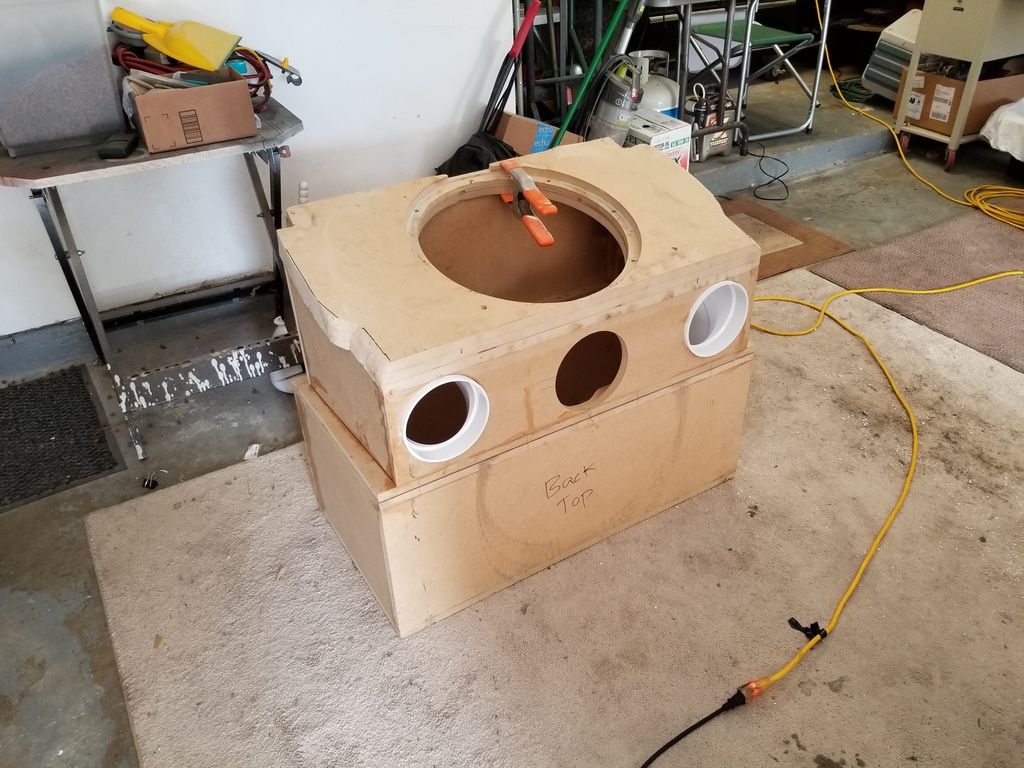

    The box. 7 cubes net. 32hz. 2 6" flared ports. Tried for a 3rd, couldn't get it to clear the magnet... Might try again later.










  2. #2
    YukonXL04's Avatar
    YukonXL04 is offline Member

    Threadstarter


    Join Date
    Apr 2017
    Location
    Arlington,TX
    Posts
    117
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    52 Post(s)

    Re: 05 Acura TL, DD 9518, M2a, ported rear deck

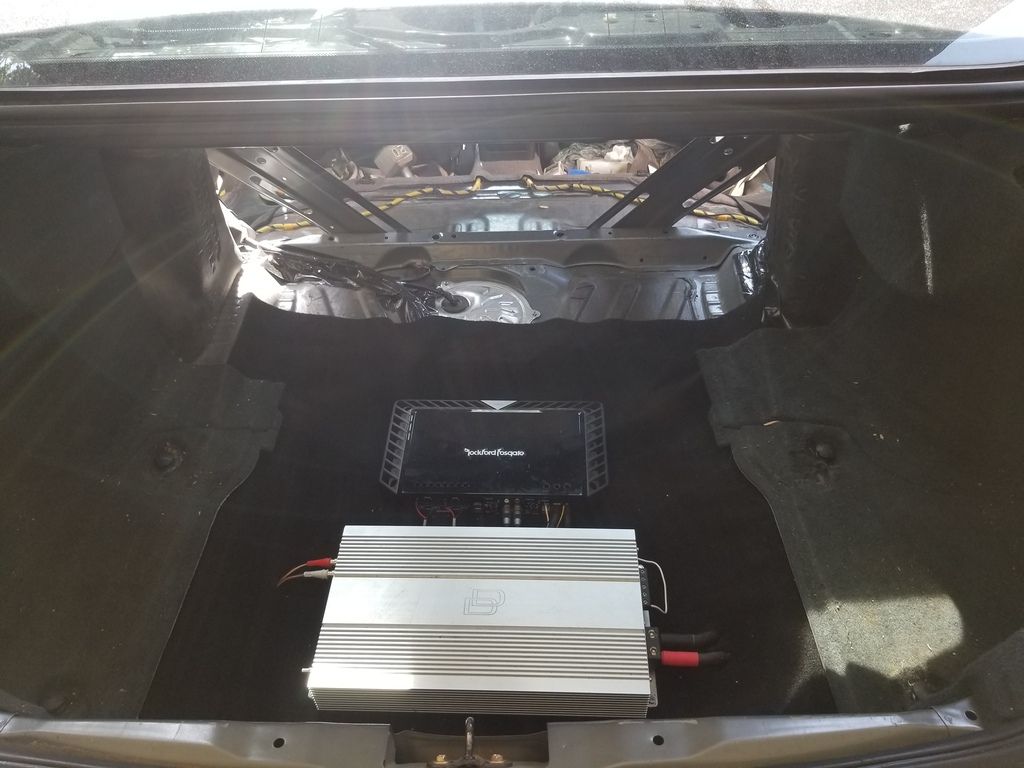

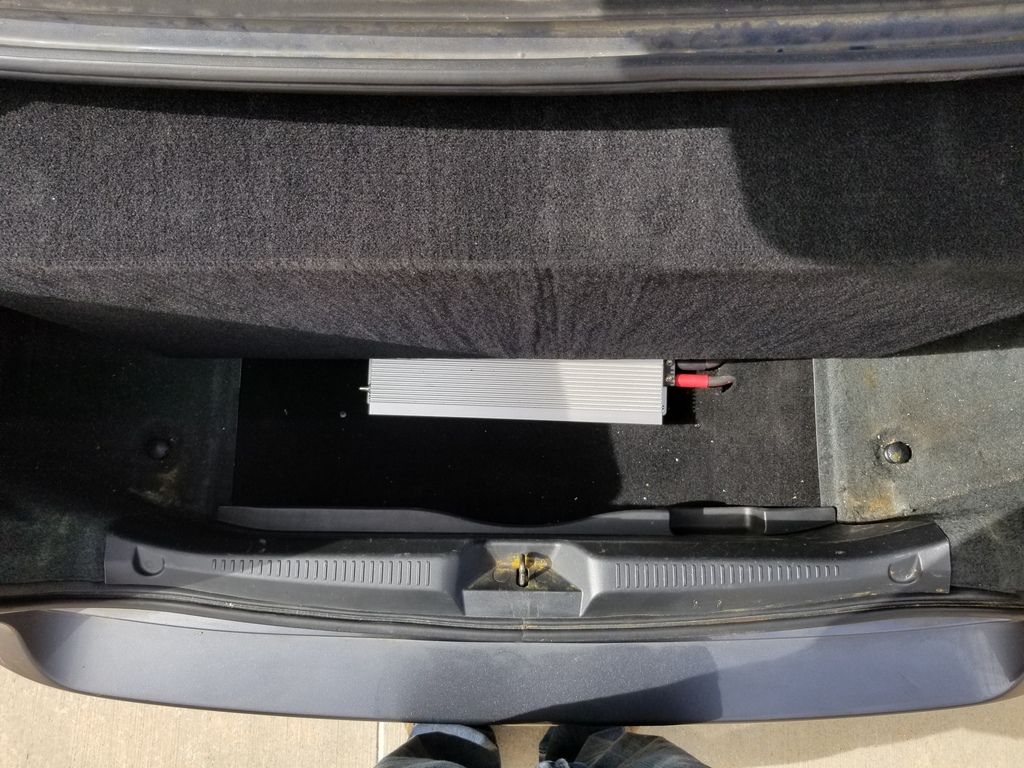

    And here is the sub and amp rack

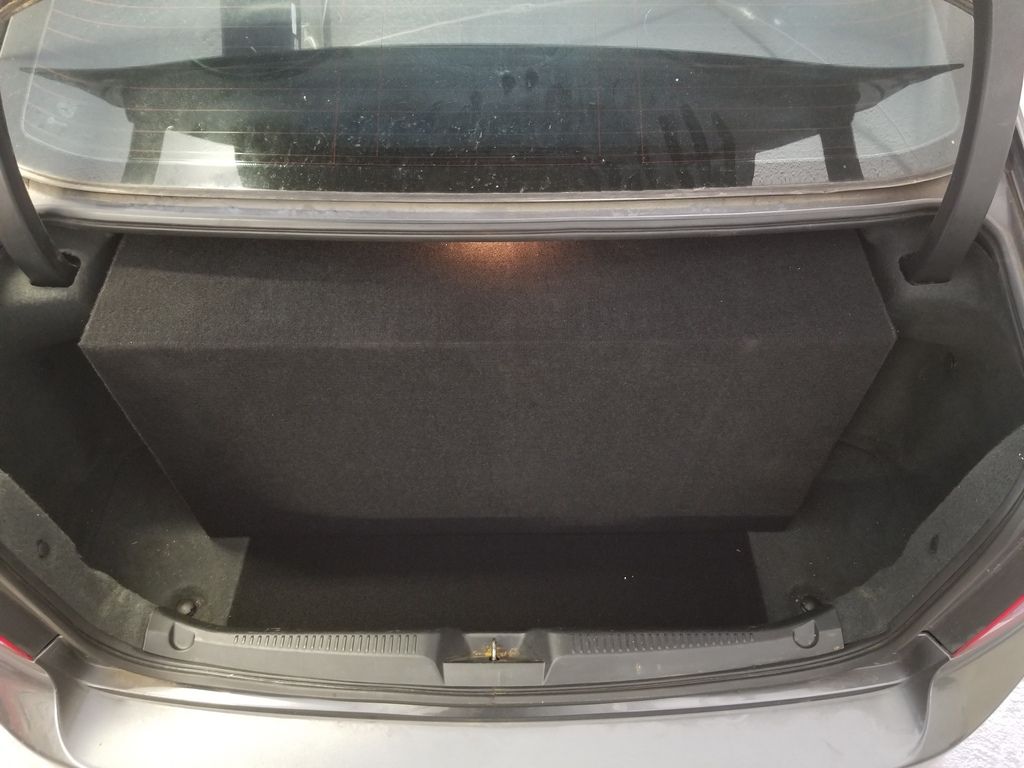

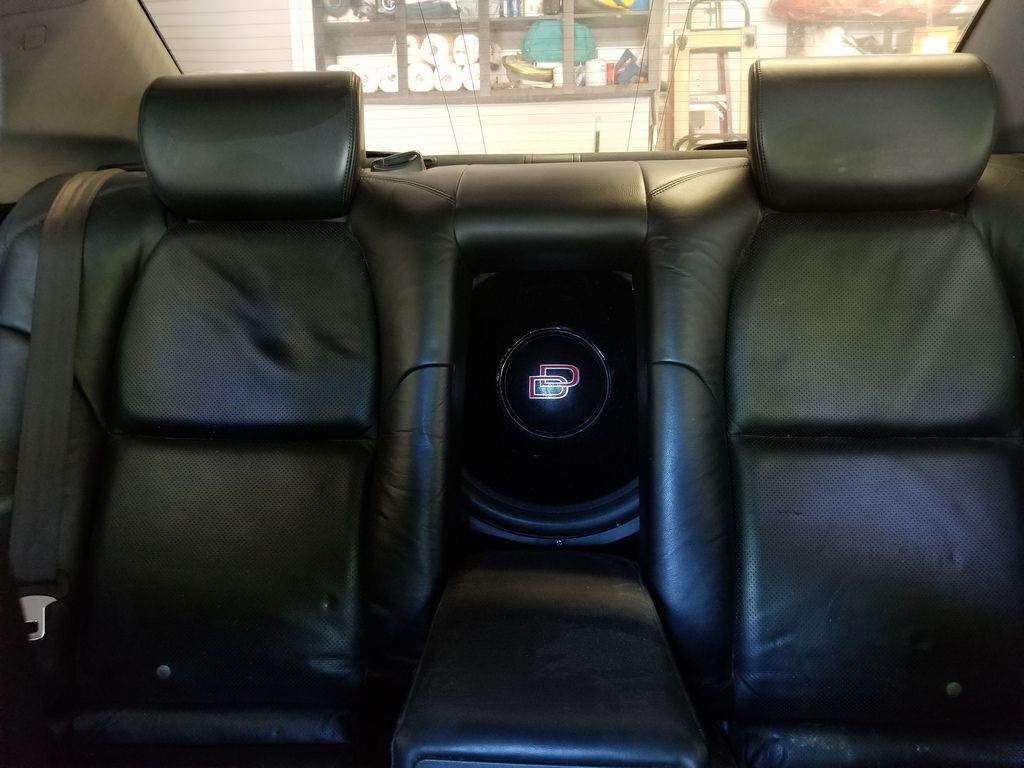

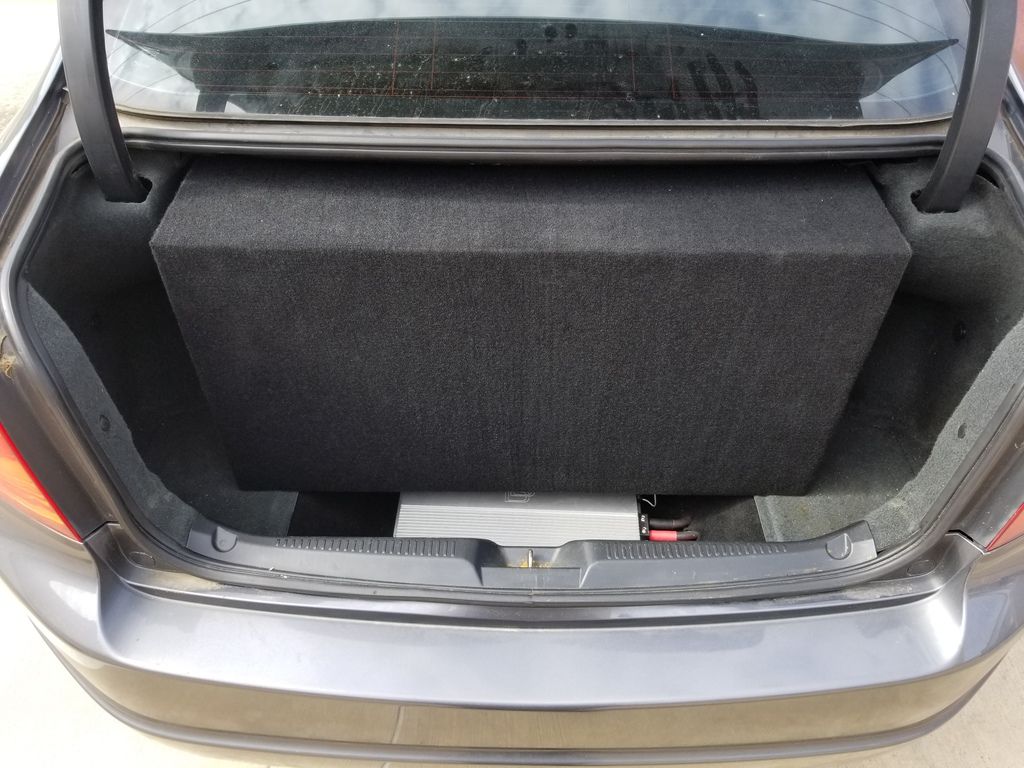

    Backseat and amp cover in



    I forgot pics of sealing the box off with foam. Sealed the deck off with ram mat.

    Overall I am very happy with it so far.




  3. Likes hispls liked this post
  4. #3
    wew lad's Avatar
    wew lad is offline wew lad inc



    Join Date
    Mar 2015
    Location
    Des Moines, IA
    Posts
    4,424
    Post Thanks / Like
    Mentioned
    42 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    2266 Post(s)

    Re: 05 Acura TL, DD 9518, M2a, ported rear deck

    very nice, hows the output?

    you have the box bolted down?



    Quote Originally Posted by Loudz View Post
    Pretty sure everyone on this site hates you (@JohnKuthe) more then me and that's very hard to accomplish.

  5. #4
    YukonXL04's Avatar
    YukonXL04 is offline Member

    Threadstarter


    Join Date
    Apr 2017
    Location
    Arlington,TX
    Posts
    117
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    52 Post(s)

    Re: 05 Acura TL, DD 9518, M2a, ported rear deck

    Thanks. The output is great! Sounds like a solid 145ish sub, but I know trunks can meter funky... plan on getting it metered soon. Would like to hit a few comps in the area but haven't done it in 10 years, don't have a clue what's out there

    Yea the box is lag bolted to the front cross braces. But it was a very tight fit. It would take some work to get it to move lol




  6. #5
    YukonXL04's Avatar
    YukonXL04 is offline Member

    Threadstarter


    Join Date
    Apr 2017
    Location
    Arlington,TX
    Posts
    117
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    52 Post(s)

    Re: 05 Acura TL, DD 9518, M2a, ported rear deck

    Well I finally have some deadener coming for the roof. Gotta figure out a way to keep my mirror on. Crap Acura design




  7. #6
    hispls's Avatar
    hispls is offline CarAudio.com Veteran



    Join Date
    Sep 2009
    Location
    Cape Cod, Massachusetts
    Posts
    9,156
    Post Thanks / Like
    Images
    15
    Mentioned
    29 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    3578 Post(s)

    Re: 05 Acura TL, DD 9518, M2a, ported rear deck

    That looks great!




  8. #7
    MrFoca's Avatar
    MrFoca is offline CarAudio.com Veteran



    Join Date
    Nov 2013
    Location
    MD
    Posts
    2,715
    Post Thanks / Like
    Images
    2
    Mentioned
    9 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    1115 Post(s)

    Re: 05 Acura TL, DD 9518, M2a, ported rear deck

    Nice.




  9. #8
    YukonXL04's Avatar
    YukonXL04 is offline Member

    Threadstarter


    Join Date
    Apr 2017
    Location
    Arlington,TX
    Posts
    117
    Post Thanks / Like
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    52 Post(s)

    Re: 05 Acura TL, DD 9518, M2a, ported rear deck

    Thanks a lot. It still has a long way to go

    Here's a couple vids

    https://youtu.be/eUmSXUZIArI
    https://youtu.be/CpJ0d6FjkAc




  10. #9
    GPcarAudio.com's Avatar
    GPcarAudio.com is offline Supporting Vendor GPcarAudio.com is a Supporting Member of the forum!

    GPcarAudio.com is a Supporting Vendor of the forum!

    Join Date
    Jun 2012
    Location
    Missouri
    Posts
    910
    Post Thanks / Like
    Mentioned
    15 Post(s)
    Tagged
    0 Thread(s)
    Quoted
    213 Post(s)

    Re: 05 Acura TL, DD 9518, M2a, ported rear deck

    looks real nice and clean, great work!
