    Icon14 Joseph's SQ Build Log

    This is my SQ build attempt. I haven't really explored the mass amounts of information involved in SQ till recently. I have always been a SPL type guy, so I am really new to this. This build is gonna include Cadence Acoustics equipment coupled with a Mobile Enclosures sub enclosure design and lots and lots of hard work from me. I plan on competing when I have finished everything.

    This is a build by me, which isn't terribly easy for me. I love Car Audio. It's a passion that no amount of disability has yet been able to extinguish. I am not rich, I only have basic tools, no specialty tools, and the will to accomplish something that can make my family proud.

    On to the Pics!!

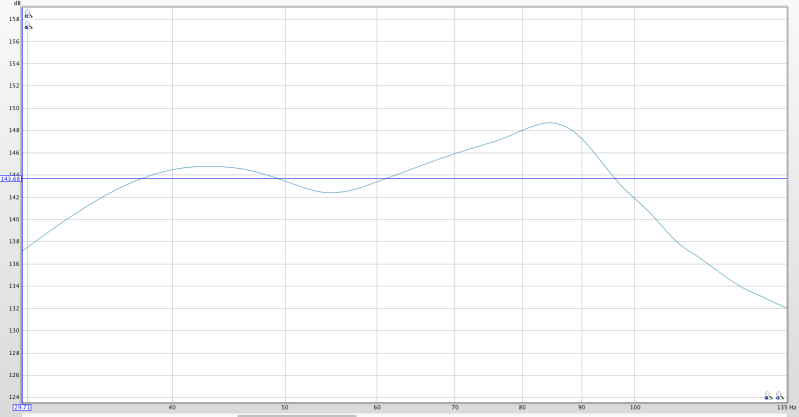

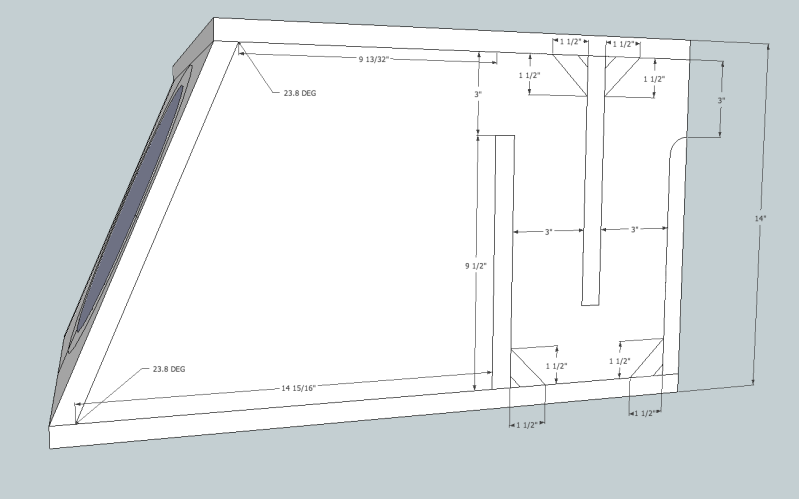

    This is the sub enclosure design and response characteristics.









    I picked the location in my truck because it helps me get the sub as far forward as possible, and it doesn't take up room from my family because it was already unused space.

    This is how most of us have to build enclosures vv

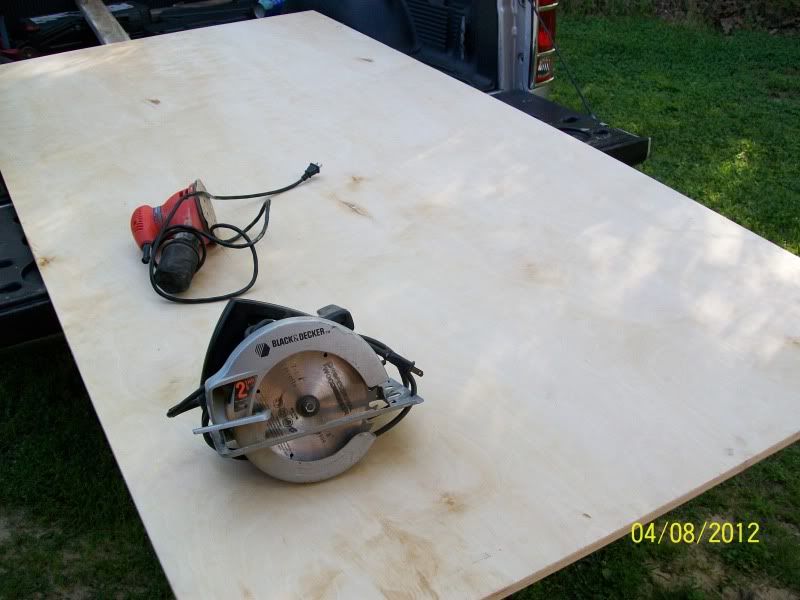

    Just the back of my truck, a circular saw and jig saw (which I didn't have last build) and a palm sander.

    The cuts will be rough, there will be mistakes, but those can be fixed. This build log will include the enclosure, amp mountings, and any other ideas i come up with to enhance SQ in the truck. I will add some tweeter spheres to the dash or A pillar's as soon as I can decide on a final speaker to run.

    If you have any questions or suggestions, let me know, I want everyone to be included in this build.



    Alpine 9833
    Boston Accoustics Front & Rear
    Cadence United Series Vegas 4 Channel
    Cadence S2W12-D2
    Cadence United Series Dakota Mono Amp
    Duralast 1,000 amp battery, X-Static 2,000 Amp Battery
    Rockford Foagate 1/0 wire, and interconnects
    Cadence shielded RCA wire
    Dynamat sound deadening, Fatmat sound deadening

  2. Likes CADENCE SOUND liked this post



  3. #2
    Falcons's Avatar
    Falcons is offline that **** i dont like



    Join Date
    Jan 2011
    Location
    Albion, New York, United States
    Posts
    5,224
    Post Thanks / Like
    Mentioned
    19 Post(s)

    Re: Joseph's SQ Build Log

    Tht response curve is insane!



    Things to look forward to:
    (2) 10" or 12" imperium audio designs subs
    set of PHD MF 6.5" comps
    Completely seal off and deaden my doors
    aquire a 2k amp
    aquire a 2 channel amp for front stage

  4. #3
    Joseph7195's Avatar
    Joseph7195 is offline Can't Walk, I still F*ck

    Threadstarter


    Join Date
    May 2011
    Location
    Saltillo, Mississippi, United States
    Age
    34
    Posts
    1,217
    Post Thanks / Like
    Images
    10
    Mentioned
    9 Post(s)

    Re: Joseph's SQ Build Log

    I know! Almost to 90hz before the drop off. It's really gonna help to hide the location of the mids in the doors and help the sub blend in with them. I have been having a really hard time with midbass staging, so i am hoping this is gonna help. It's so hard because the rules of the competing organizations prevent moving the midbass's from the door, so i have to try and get them to play higher (location and frequency wise). I think I am gonna have a lot of tuning, but fortunately I have more processing than any man on earth should have, lol



    Alpine 9833
    Boston Accoustics Front & Rear
    Cadence United Series Vegas 4 Channel
    Cadence S2W12-D2
    Cadence United Series Dakota Mono Amp
    Duralast 1,000 amp battery, X-Static 2,000 Amp Battery
    Rockford Foagate 1/0 wire, and interconnects
    Cadence shielded RCA wire
    Dynamat sound deadening, Fatmat sound deadening

  5. #4
    Falcons's Avatar
    Falcons is offline that **** i dont like



    Join Date
    Jan 2011
    Location
    Albion, New York, United States
    Posts
    5,224
    Post Thanks / Like
    Mentioned
    19 Post(s)

    Re: Joseph's SQ Build Log

    Quote Originally Posted by Joseph7195 View Post
    I know! Almost to 90hz before the drop off. It's really gonna help to hide the location of the mids in the doors and help the sub blend in with them. I have been having a really hard time with midbass staging, so i am hoping this is gonna help. It's so hard because the rules of the competing organizations prevent moving the midbass's from the door, so i have to try and get them to play higher (location and frequency wise). I think I am gonna have a lot of tuning, but fortunately I have more processing than any man on earth should have, lol
    Lol that curve itself is making me want to do an sq build in my gf's car haha



    Things to look forward to:
    (2) 10" or 12" imperium audio designs subs
    set of PHD MF 6.5" comps
    Completely seal off and deaden my doors
    aquire a 2k amp
    aquire a 2 channel amp for front stage

  6. #5
    kushy_dreams's Avatar
    kushy_dreams is offline The resident hippie



    Join Date
    Sep 2009
    Location
    twenty past four
    Posts
    4,091
    Post Thanks / Like
    Mentioned
    25 Post(s)

    Re: Joseph's SQ Build Log

    I like builds with limited tools. It shows who the real men are, the ones with the real skills and motivation.

    In for results



    13 Dodge Dart Rallye 1.4T


    http://mobileaudioforum.com/forum/forum.php<

    BOYCOTT SKAR AUDIO! SHADY BUSINESS PRACTICES SHOULD NEVER BE ENCOURAGED!

  7. #6
    Joseph7195's Avatar
    Joseph7195 is offline Can't Walk, I still F*ck

    Threadstarter


    Join Date
    May 2011
    Location
    Saltillo, Mississippi, United States
    Age
    34
    Posts
    1,217
    Post Thanks / Like
    Images
    10
    Mentioned
    9 Post(s)

    Re: Joseph's SQ Build Log

    Ah yes, the Gf's car, or as I know it, "The Forbidden Zone". Lol, I have wasted much time trying to talk my old lady into a system.



    Alpine 9833
    Boston Accoustics Front & Rear
    Cadence United Series Vegas 4 Channel
    Cadence S2W12-D2
    Cadence United Series Dakota Mono Amp
    Duralast 1,000 amp battery, X-Static 2,000 Amp Battery
    Rockford Foagate 1/0 wire, and interconnects
    Cadence shielded RCA wire
    Dynamat sound deadening, Fatmat sound deadening

  8. Likes Falcons liked this post
  9. #7
    Joseph7195's Avatar
    Joseph7195 is offline Can't Walk, I still F*ck

    Threadstarter


    Join Date
    May 2011
    Location
    Saltillo, Mississippi, United States
    Age
    34
    Posts
    1,217
    Post Thanks / Like
    Images
    10
    Mentioned
    9 Post(s)

    Re: Joseph's SQ Build Log

    Quote Originally Posted by kushy_dreams View Post
    I like builds with limited tools. It shows who the real men are, the ones with the real skills and motivation.

    In for results
    I am really excited, I am still on the fence about the enclosure covering. Not sure if I am gonna do a painted design type thing, carpet or vinyl. Carpet and vinyl I would have to take to someone and pay them to do it, which is why I think I am gonna do a gloss black paint and orange (Cadence colors) paint on it. Not sure of the design yet though. Maybe just all black with some strategically place orange lines here and there.



    Alpine 9833
    Boston Accoustics Front & Rear
    Cadence United Series Vegas 4 Channel
    Cadence S2W12-D2
    Cadence United Series Dakota Mono Amp
    Duralast 1,000 amp battery, X-Static 2,000 Amp Battery
    Rockford Foagate 1/0 wire, and interconnects
    Cadence shielded RCA wire
    Dynamat sound deadening, Fatmat sound deadening

  10. #8
    Falcons's Avatar
    Falcons is offline that **** i dont like



    Join Date
    Jan 2011
    Location
    Albion, New York, United States
    Posts
    5,224
    Post Thanks / Like
    Mentioned
    19 Post(s)

    Re: Joseph's SQ Build Log

    Quote Originally Posted by Joseph7195 View Post
    Ah yes, the Gf's car, or as I know it, "The Forbidden Zone". Lol, I have wasted much time trying to talk my old lady into a system.
    haha it took a lot of convincing trust me. i had to pretty much beg her haha.



    Things to look forward to:
    (2) 10" or 12" imperium audio designs subs
    set of PHD MF 6.5" comps
    Completely seal off and deaden my doors
    aquire a 2k amp
    aquire a 2 channel amp for front stage

  11. #9
    Flex68's Avatar
    Flex68 is offline dilligaf



    Join Date
    Jan 2012
    Location
    The Backroads
    Posts
    1,613
    Post Thanks / Like
    Images
    1
    Mentioned
    21 Post(s)

    Re: Joseph's SQ Build Log

    Quote Originally Posted by Joseph7195 View Post
    I think I am gonna do a gloss black paint and orange (Cadence colors) paint on it. Not sure of the design yet though. Maybe just all black with some strategically place orange lines here and there.
    Just a thot, here, but do you know anyone who is decent at drawing? Maybe someone could free-hand you a Cadence logo, or something similar.
    Either that or find someone who can 'upsize' it on a computer and/or plotting printer so you could transfer it to the enclosure yourself before painting it in....
    I figure you'd prefer not to go through a clean SQ build---- with plans on maybe competing---- and just have it be black with org lines.



    Quote Originally Posted by Spider Monkey View Post
    Romney will [fornicate] me less than Obama already has and WAY less than what Obama has planned.
    Refs: adamtwo4, basscort2009, burzendowski, clanassa, cthedinger, ikoolguy, its_bacon12, Jew_Bagel, jr711, kreapin, kowboy, Rudy, TheRealDefman, Winter_C

    HU:Eclipse CD7200 MkII
    Subs: Fack Skar Audio
    Front comps: HAT Clarus C61-2 off Sony ES 7547
    Electrical: C&D batt, Big 3 with 1/0, 4ga to amps, Stinger RCA’s
    Damping: 60mil FG panels over holes, full worx from SDS

  12. #10
    Joseph7195's Avatar
    Joseph7195 is offline Can't Walk, I still F*ck

    Threadstarter


    Join Date
    May 2011
    Location
    Saltillo, Mississippi, United States
    Age
    34
    Posts
    1,217
    Post Thanks / Like
    Images
    10
    Mentioned
    9 Post(s)

    Re: Joseph's SQ Build Log

    Quote Originally Posted by Flex68 View Post
    Just a thot, here, but do you know anyone who is decent at drawing? Maybe someone could free-hand you a Cadence logo, or something similar.
    Either that or find someone who can 'upsize' it on a computer and/or plotting printer so you could transfer it to the enclosure yourself before painting it in....
    I figure you'd prefer not to go through a clean SQ build---- with plans on maybe competing---- and just have it be black with org lines.
    Good point, I really don't think I can free hand anything worthwhile. And you're right, it is gonna have to be clean. I may just attempt some type of design and if all goes terribly wrong, I will just have it carpeted, lol. I may try to get some people to do some free designs for me



    Alpine 9833
    Boston Accoustics Front & Rear
    Cadence United Series Vegas 4 Channel
    Cadence S2W12-D2
    Cadence United Series Dakota Mono Amp
    Duralast 1,000 amp battery, X-Static 2,000 Amp Battery
    Rockford Foagate 1/0 wire, and interconnects
    Cadence shielded RCA wire
    Dynamat sound deadening, Fatmat sound deadening

  13. #11
    Why So Cereal?'s Avatar
    Why So Cereal? is offline Invisible Cereal



    Join Date
    Sep 2010
    Location
    Drowning in milk
    Posts
    7,403
    Post Thanks / Like
    Mentioned
    74 Post(s)

    Re: Joseph's SQ Build Log





  14. Likes martiandancer31 liked this post
  15. #12
    Joseph7195's Avatar
    Joseph7195 is offline Can't Walk, I still F*ck

    Threadstarter


    Join Date
    May 2011
    Location
    Saltillo, Mississippi, United States
    Age
    34
    Posts
    1,217
    Post Thanks / Like
    Images
    10
    Mentioned
    9 Post(s)

    Re: Joseph's SQ Build Log

    Okay fella's, here are the box shots. I really tried my best, and it turned out so much better than I had thought (at least I think). I have always used 1" MDF for all my SPL builds. I had a vendor that could get it for $65 a sheet and I just never bought anything else. Well I used the 3/4" Birch this time and I didn't realize how much lighter it is and it's rigidity is awesome! The box has to be 30-40% lighter than MDF, anyways, here are the pics!


    The 45's for the corner's were tricky as heck with a circular saw, but they turned out okay






    All panels were test fitted and sanded down to make sure everything was a tight fit (kinda, lol)






    I always make a mess with the sealant/glue. No matter how much I try Ha ha



    Alpine 9833
    Boston Accoustics Front & Rear
    Cadence United Series Vegas 4 Channel
    Cadence S2W12-D2
    Cadence United Series Dakota Mono Amp
    Duralast 1,000 amp battery, X-Static 2,000 Amp Battery
    Rockford Foagate 1/0 wire, and interconnects
    Cadence shielded RCA wire
    Dynamat sound deadening, Fatmat sound deadening

  16. #13
    Joseph7195's Avatar
    Joseph7195 is offline Can't Walk, I still F*ck

    Threadstarter


    Join Date
    May 2011
    Location
    Saltillo, Mississippi, United States
    Age
    34
    Posts
    1,217
    Post Thanks / Like
    Images
    10
    Mentioned
    9 Post(s)

    Re: Joseph's SQ Build Log











    I decided to go ahead and paint the port black even though I haven't decided on a color scheme yet, but i thought I might as well do it while I have the chance!





    I am going to use the excess wood to build the amp racks tomorrow, and try to get the rear area in my truck situated. I have to take the old lady to dinner and a movie, so I will be back later! Thanks for being tuned in!!

    (My old lady held me up so I could make a couple of the cuts, so I owe her)



    Alpine 9833
    Boston Accoustics Front & Rear
    Cadence United Series Vegas 4 Channel
    Cadence S2W12-D2
    Cadence United Series Dakota Mono Amp
    Duralast 1,000 amp battery, X-Static 2,000 Amp Battery
    Rockford Foagate 1/0 wire, and interconnects
    Cadence shielded RCA wire
    Dynamat sound deadening, Fatmat sound deadening

  17. #14
    Falcons's Avatar
    Falcons is offline that **** i dont like



    Join Date
    Jan 2011
    Location
    Albion, New York, United States
    Posts
    5,224
    Post Thanks / Like
    Mentioned
    19 Post(s)

    Re: Joseph's SQ Build Log

    its beautiful *tear*



    Things to look forward to:
    (2) 10" or 12" imperium audio designs subs
    set of PHD MF 6.5" comps
    Completely seal off and deaden my doors
    aquire a 2k amp
    aquire a 2 channel amp for front stage

  18. #15
    SourDeez's Avatar
    SourDeez is offline CarAudio.com Veteran



    Join Date
    Apr 2007
    Location
    Fuqy u
    Posts
    4,128
    Post Thanks / Like
    Mentioned
    64 Post(s)

    Re: Joseph's SQ Build Log

    So you cant walk but you can do all this? Makes me feel really lazy... I had someone else build my box. Mainly because I dont have the tools, but still

    Good job it looks clean



    Headunit - Stock cassette player - Pioneer P9400
    Front Stage - Pyle 8 inch subs (1000 watt peak!!) - Polk DB6.5 (about to be CDT 6.5s)
    Rear stage - Deleted (stolen) - Deleted
    Sub stage - custom built 15 inch sony xplod (5k watt peak!!!) (huge box) - Two SA12's built by Corey
    Sub amp - Pyle 8000w peak!! (spl edition) - AQ2200
    Electircal - 35 amp alt from ford festiva upgrade, stolen battery, 28 gauge solder coil for my cable - Dual D34 Yellows, 1/0 trystar OFC, 135amp alt

Closed Thread
Page 1 of 7 1 2 3 4 5 6 7 LastLast

Similar Threads

  1. 2005 Scion tC SQ Hertz Audison Pioneer Build Log
    By keep_hope_alive in forum Car Audio Build Logs - Cars/Trucks/SUVs
    Replies: 114
    Last Post: 05-17-2013, 04:20 PM
  2. 1995 Dakar Yellow M3 Coupe SQ Install Build Log
    By MrFriskles in forum General Discussion
    Replies: 8
    Last Post: 05-02-2011, 09:13 PM
  3. FierceTimbo's SQ Build Log
    By Fiercetimbo17 in forum Car Audio Build Logs - Cars/Trucks/SUVs
    Replies: 51
    Last Post: 03-08-2009, 03:18 PM
  4. New sq system build log!! Pics
    By asaner85 in forum General Discussion
    Replies: 10
    Last Post: 02-29-2008, 09:28 PM
  5. LS2's SQ Build Log *56k beware*
    By ls2poweredgoat in forum General Discussion
    Replies: 30
    Last Post: 01-07-2008, 06:56 PM

Posting Permissions

  • You may not post new threads
  • You may post replies
  • You may not post attachments
  • You may edit your posts
1e2 Forum
