    1994 Geo Tracker Build, a rather EXTREME one at that..

    It's been awhile since anyone's tried this(or so i've seen), and i just happened to have finished mine. behold, my project, or, as i've called it, The Last Laugh!
    I planned to model this system after DC Comics' The Joker, one of my all time favorite supervillians. The Tracker is green with those stupid purple decals, so it made sense. you will see.

    I started planning this thing in June 2010, which is when i first kind of figured out i was going to be buying it. It was my girlfriend's family's sort of beater, whenever one of their cars got fucked, they'd start driving this thing. So it was in a bit of disrepair.

    Anyway we'll get to that. here's where i started:
    Firstly, I already had the subs i'd use, from an old system i had ripped out of my old car, a 1990 Toyota Celica AWD. i dig old cars. anyway, the POS Pyle amp fired, so i had the subs laying around for literally years while i figured out what to do with them.(i still have the enclosure for sale if anyone's interested).

    ANYWAY, here they are, twin 12 inch MTX Thunder subwoofers, each rated at 1000w peak.


    I loved these things, and since i knew they still worked, it saved me a bit of cash(though i had thoughts of buying rockfos punch/power 12s or MTX Jackhammers if needed).

    Secondly, i needed new speakers, the crappy little pioneer 4 inchers in this thing would NOT cut it. So i got to work. Days later, along came these two little packages..
    First came the brand new RockFos Punch 6x8 speakers, each rated @ 120w peak.


    then came the front speakers which i would mount on the front doors.
    twin RockFos 6.5 inch speakers, at 100w peak:


    Now that the speaker hunting was done, i needed a new amp. I'm not much for the new, sleek designs. I had an old RF amp when i did my first build in my Civic, so i knew i'd stick with what works. The old RF amps are MUCH more powerful than what they're rated at, so i knew exactly what i wanted, and it came days later:

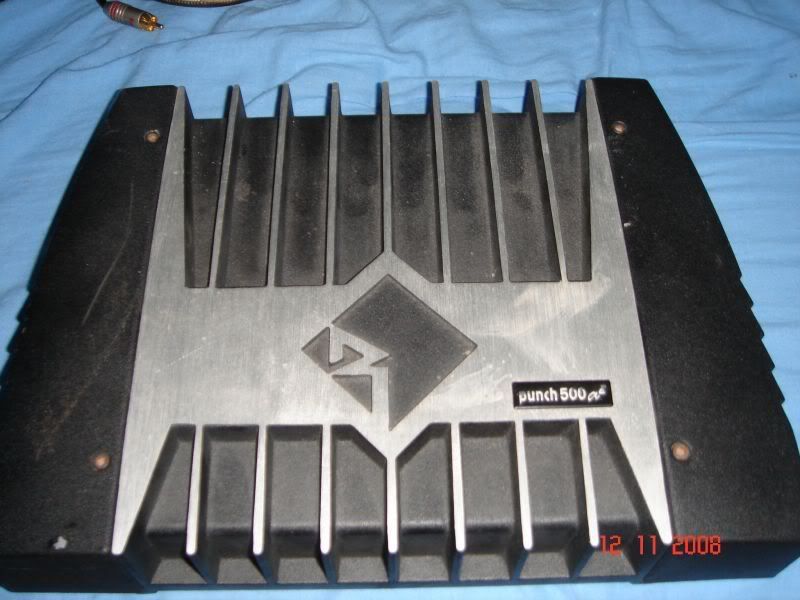

    a shiny Rockford Fosgate Punch 500a2.

    a bit on the shy side as far as power goes, but then, i'm not driving a monte carlo or something with a huge trunk, so all that power won't be needed! This thing, let loose, will be MORE than enough for a Geo Tracker, which, at the floor, only has 12x41.18 inches of space to play with!

    then came the deck. Since i didn't have a whole lot of space to play with- or any, for that matter, i knew i needed a deck that came powerful straight out of the box, which a noticable difference to, like, a pioneer deck.
    Most decks you find in stores, you won't find one with more than MAYBE 50 or 54 watts per channel. behold, a no- name deck that is performing the **** out of the power players!

    Little known, but powerful as hell. 80 watts per channel, which at RMS upped my stuff to 40w per. touchscreen, bluetooth, ipod dock, SD card reader, USB, 1/8 inch jack, this is their top of the line single DIN receiver.
    f-in ******.


    i masked the amp, because i knew i'd be painting it.

    "*GASP!* WHAT," you ask? yes. Painting an amp. i checked. the old RF amps basically operated as one big heat sink, so painting it won't hurt at all.

    First things first: wiring had to get done before i put anything in, or at least the primary wiring, so i got to work.

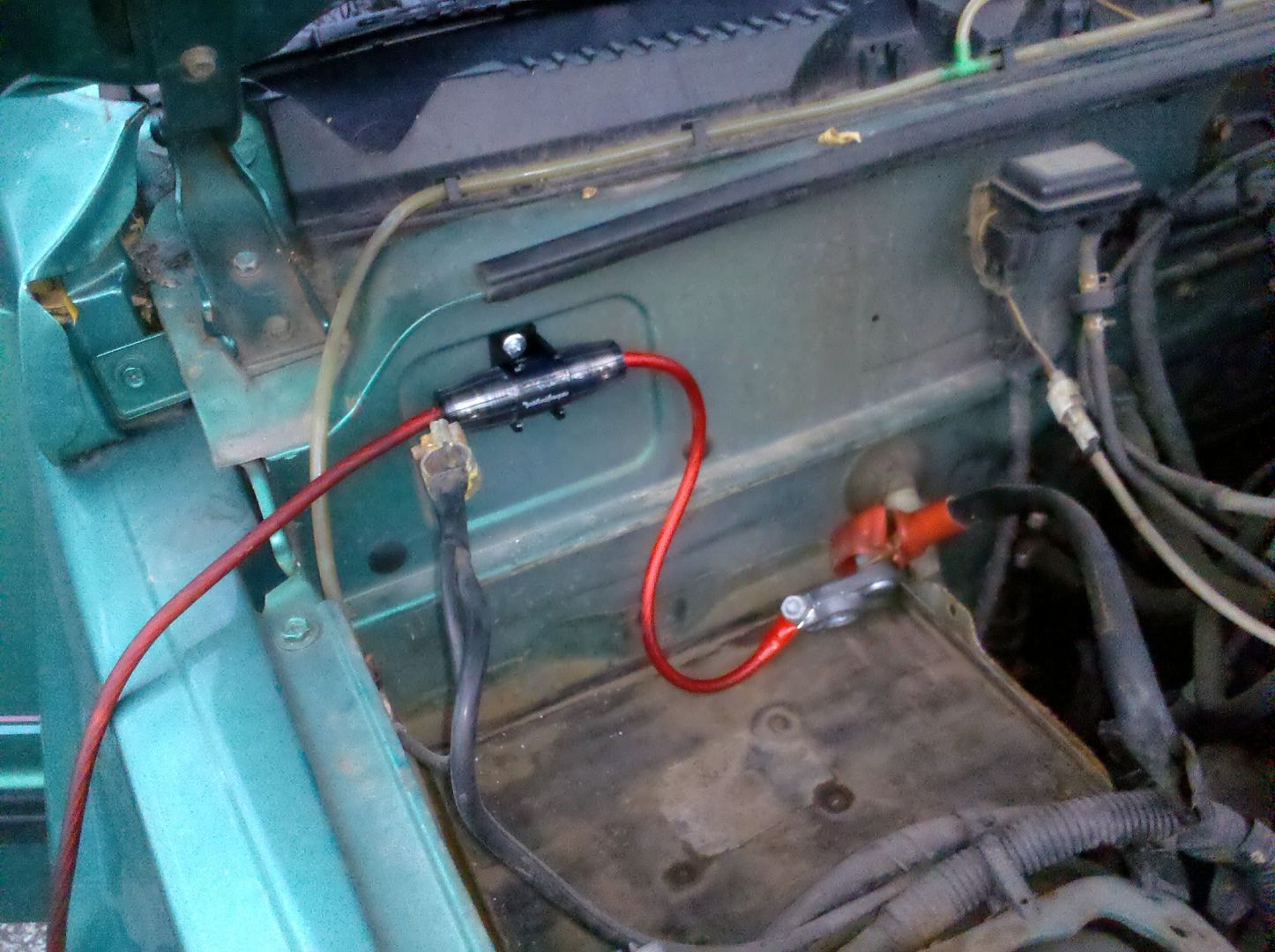

    power wire...

    ground wire...

    i've always been bad with doing my own grounding, so i played this one safe, and consulted a pro on how to do it- thankfully i got it right on the first try; self tapping screw into the body, under the back seat, which is small AS HELL.
    Last edited by Hobbes Caltous; 11-23-2010 at 09:54 AM. Reason: wrong link

  2. #2
    Annnarbor84's Avatar
    Annnarbor84 is offline Banned



    Join Date
    Nov 2008
    Location
    Live with your girl!!!
    Age
    32
    Posts
    8,623
    Post Thanks / Like
    Mentioned
    0 Post(s)

    Re: 1994 Geo Tracker Build, a rather EXTREME one at that..

    Quote Originally Posted by Hobbes Caltous View Post
    It's been awhile since anyone's tried this(or so i've seen), and i just happened to have finished mine. behold, my project, or, as i've called it, The Last Laugh!
    I planned to model this system after DC Comics' The Joker, one of my all time favorite supervillians. The Tracker is green with those stupid purple decals, so it made sense. you will see.

    I started planning this thing in June 2010, which is when i first kind of figured out i was going to be buying it. It was my girlfriend's family's sort of beater, whenever one of their cars got fucked, they'd start driving this thing. So it was in a bit of disrepair.

    Anyway we'll get to that. here's where i started:
    Firstly, I already had the subs i'd use, from an old system i had ripped out of my old car, a 1990 Toyota Celica AWD. i dig old cars. anyway, the POS Pyle amp fired, so i had the subs laying around for literally years while i figured out what to do with them.(i still have the enclosure for sale if anyone's interested).

    ANYWAY, here they are, twin 12 inch MTX Thunder subwoofers, each rated at 1000w peak.


    I loved these things, and since i knew they still worked, it saved me a bit of cash(though i had thoughts of buying rockfos punch/power 12s or MTX Jackhammers if needed).

    Secondly, i needed new speakers, the crappy little pioneer 4 inchers in this thing would NOT cut it. So i got to work. Days later, along came these two little packages..
    First came the brand new RockFos Punch 6x8 speakers, each rated @ 120w peak.


    then came the front speakers which i would mount on the front doors.
    twin RockFos 6.5 inch speakers, at 100w peak:


    Now that the speaker hunting was done, i needed a new amp. I'm not much for the new, sleek designs. I had an old RF amp when i did my first build in my Civic, so i knew i'd stick with what works. The old RF amps are MUCH more powerful than what they're rated at, so i knew exactly what i wanted, and it came days later:
    a shiny Rockford Fosgate Punch 500a2.

    a bit on the shy side as far as power goes, but then, i'm not driving a monte carlo or something with a huge trunk, so all that power won't be needed! This thing, let loose, will be MORE than enough for a Geo Tracker, which, at the floor, only has 12x41.18 inches of space to play with!

    then came the deck. Since i didn't have a whole lot of space to play with- or any, for that matter, i knew i needed a deck that came powerful straight out of the box, which a noticable difference to, like, a pioneer deck.
    Most decks you find in stores, you won't find one with more than MAYBE 50 or 54 watts per channel. behold, a no- name deck that is performing the **** out of the power players!

    Little known, but powerful as hell. 80 watts per channel, which at RMS upped my stuff to 40w per. touchscreen, bluetooth, ipod dock, SD card reader, USB, 1/8 inch jack, this is their top of the line single DIN receiver.
    f-in ******.


    i masked the amp, because i knew i'd be painting it.
    http://i20.photobucket.com/albums/b2...eoproject7.jpg
    "*GASP!* WHAT," you ask? yes. Painting an amp. i checked. the old RF amps basically operated as one big heat sink, so painting it won't hurt at all.

    First things first: wiring had to get done before i put anything in, or at least the primary wiring, so i got to work.
    power wire...

    ground wire...

    i've always been bad with doing my own grounding, so i played this one safe, and consulted a pro on how to do it- thankfully i got it right on the first try; self tapping screw into the body, under the back seat, which is small AS HELL.
    Thats a terrible place to ground Ground on amp to ground on front batt




  3. #3
    Donnie W's Avatar
    Donnie W is offline Junior Member



    Join Date
    Nov 2010
    Location
    Ontario
    Posts
    18
    Post Thanks / Like
    Mentioned
    0 Post(s)

    Re: 1994 Geo Tracker Build, a rather EXTREME one at that..

    Seatbelt bolt works for ground IMHO.




  4. #4
    the727kid's Avatar
    the727kid is offline CarAudio.com Veteran



    Join Date
    Jul 2006
    Location
    St. Pete, FL
    Posts
    2,941
    Post Thanks / Like
    Mentioned
    0 Post(s)

    Re: 1994 Geo Tracker Build, a rather EXTREME one at that..

    Ground should be a solid piece of sheet metal, that is on the main body of the car. (Not a piece that has been welded on). Also I would sand down the area around it to shiny bare metal.

    Anyways you will never get 40rms per channel out of that guy with a clean signal, 20 if your lucky. Noticed you stated most things by Peak.. bad way to go.



    Alarm: Viper 5902
    HU: Stock
    Front Stage:
    Tweeters: Image Dynamics CD1-Pro Mini Horns
    Mids: Sundown Neo Pro 8"
    Subs: (2) 15" Dayton HF ran IB
    Amps: (2) Kicker IX 500.4 (1) Kicker IX 1000.1
    Processor: JBL MS-8

  5. #5
    Buck's Avatar
    Buck is offline always low Buck is a Supporting Member of the forum!



    Join Date
    May 2008
    Location
    Nashville
    Posts
    18,378
    Post Thanks / Like
    Mentioned
    252 Post(s)

    Re: 1994 Geo Tracker Build, a rather EXTREME one at that..

    I'd run a piece of wire to the front battery. Might as well. That tiny wire you're using couldn't have cost too much



    Alpine - ASE (local) - Batcap - C&D Tech - CT Sounds - DC - eD - Excessive Amperage - Rainbow

  6. #6
    Hobbes Caltous's Avatar
    Hobbes Caltous is offline Junior Member

    Threadstarter


    Join Date
    Nov 2010
    Location
    Milwaukee, Wisconsin, United States
    Posts
    11
    Post Thanks / Like
    Mentioned
    0 Post(s)

    Re: 1994 Geo Tracker Build, a rather EXTREME one at that..

    next, on to construction. cutting all the wood was a *****, because it's such a small space. 12 inches by 41.18 inches on the floor, which rises up to 9 inches at the top of the back seat. VERY small.
    ...cutting the wood.


    here is what would become the front speaker mounts and sub mounts. I have to cut mounting rings for the front speakers, because the doors are so thin, the windshield won't be able to roll all the way down without it.

    here is the cradle, which i cut to be mounted on a bracket, above the sub cases, under the rear speaker arm and lip.

    it was right about here that i discovered a giant hole in my vision. i had not taken into account, how THICK the amp and cradle would be, and thus did not see that, when mounted, the amp would cut into the rear arm lip-- i DID NOT want that, i had big plans and so so plan changing was in order.

    so i though about it and would cut a NEW cradle to mount the amp BETWEEN the subs, like this:

    you'll notice the LCD lights on top, there.

    anyway, so i got back to cutting and did a mock-up in the "trunk," and it looked pretty good!


    my happiest moment in this, everything fit. this thing was gonna be bulky as hell, but it would fit!

    so i got to gluing. i had at my disposal, a "biscuit cutter," which i think goes unused for a lot of builders. if you can find one, GET IT. it basically cuts long, thin, football shaped dowel slits into your wood, which greatly increases the tensile strength when glued.
    rear speaker arm


    arm joined with lip


    then i got to work on the sub cases.


    i can't say it enough, the biscuit cutter really helped. no screws, nails, nothin. just glue and these biscuits!

    that done, i began applying felt to the inside of the sub cases, cuz those had to get closed up before i could proceed.


    next came the *ahem* green shag fur. yup, i said it. green shag fur. i guarantee nobody's done this, cuz this stuff is pretty darned hard to find. observe:





  7. #7
    Hobbes Caltous's Avatar
    Hobbes Caltous is offline Junior Member

    Threadstarter


    Join Date
    Nov 2010
    Location
    Milwaukee, Wisconsin, United States
    Posts
    11
    Post Thanks / Like
    Mentioned
    0 Post(s)

    Re: 1994 Geo Tracker Build, a rather EXTREME one at that..

    then the purple, quarter inch shag fur..


    can you see it yet?
    here is a side view of the top of the sub cases and the rear speaker arm:

    here it is again, with the speaker holes cut, and the LCD lights added:


    ran to walmart to pick up 3 pounds of THIS stuff, cuz i'm not playing around; this is a SERIOUSLY small space, and i want to make it sound bigger. if you don't use polyfill for your smaller, SEALED enclosures, yer an idiot. for the record, people who use this stuff on ported box, you're doing it wrong. it's mathematically redundant.


    covered the wires and plugged the hole, ha.


    ladies and gentlemen, it's starting to come together.


    i found this great patterned patent leather at Joann's, on sale for 15 bucks a yard. great stuff. i covered the front of the whole case with this stuff, cemented it down, and then rivet-tacked it into place, all cool like, and mounted the rear speakers:


    next i got to work, painting the amp. a little Hotrod Red and Starbright White? oooh yeah.


    while it dried, i finished the new cradle, complete with 12 volt cooling fan, which will **** hot air out and blow it out underneath the cradle into open air:


    see?




  8. #8
    Hobbes Caltous's Avatar
    Hobbes Caltous is offline Junior Member

    Threadstarter


    Join Date
    Nov 2010
    Location
    Milwaukee, Wisconsin, United States
    Posts
    11
    Post Thanks / Like
    Mentioned
    0 Post(s)

    Re: 1994 Geo Tracker Build, a rather EXTREME one at that..

    i also cut new wire covers out of 1/4 inch plexiglass, i had two GIANT sheets just laying around- no sh__! here it is all pretty n stuff:



    i run the the wires to a switch, so i can control whether it runs or now. winters in wisconsin make a cooling fan pretty redundant, so i won't run it in the winter time.


    finally came installation. the good news is, it fit like a glove. the bad news is, the rear arm snapped while i was trying to inch the whole thing backward, so it was flapping freely under the fabric, even after all glue and screws.


    [NOTE: this was the ONLY piece i didnt use biscuits on- more's the pity]. this probably would've happened sooner or later, from bumps and stuff, so i'm glad it happened as i was putting it in.

    THANKFULLY i had a few steel brackets in the garage, which i hammered into a 20 degree angle, painted purple, and screwed in. i only needed one, but three do nicely. i'll have a pic of it later on.

    you'll also notice, the amp sits on an angle. this helps the fan cool it from underneath, and it also provides space to hide wires. the neat thing is, i hooked up a linear actuator on a button switch and a hinge, so, if i need to get in there to do maintanance, all i have to do is push a button and it opens up.

    anyway, getting it in was the main point, so i fixed it, and got to work on the wires. that required a LOT of skeletonizing the interior:

    considering the space, it actually wasn't too bad!

    one thing about old RF amps, is, they don't have the parallel potentiometers, and there's only one company that makes em 3rd party, so i searched one out and found it. this one plugs into the RCA cables! pretty nifty!


    since i mostly worked on this thing at night, i don't have any day shots yet, but i will, of its completion. for now, i welcome your thoughts and comments.

    you'll now realize how i modelled it after the joker!




  9. #9
    Hobbes Caltous's Avatar
    Hobbes Caltous is offline Junior Member

    Threadstarter


    Join Date
    Nov 2010
    Location
    Milwaukee, Wisconsin, United States
    Posts
    11
    Post Thanks / Like
    Mentioned
    0 Post(s)

    Re: 1994 Geo Tracker Build, a rather EXTREME one at that..

    Quote Originally Posted by B Hussein O View Post
    Thats a terrible place to ground Ground on amp to ground on front batt
    you're not supposed to use ground wires that long.




  10. #10
    Annnarbor84's Avatar
    Annnarbor84 is offline Banned



    Join Date
    Nov 2008
    Location
    Live with your girl!!!
    Age
    32
    Posts
    8,623
    Post Thanks / Like
    Mentioned
    0 Post(s)

    Re: 1994 Geo Tracker Build, a rather EXTREME one at that..

    Quote Originally Posted by Hobbes Caltous View Post
    you're not supposed to use ground wires that long.
    What are you talking about??? Thats the best ground you can get in a vehicle. If the "pro" that did your ground told you that, he is full of shit. Nice build, but I will have to strongly disagree in regards to the ground




  11. #11
    Hobbes Caltous's Avatar
    Hobbes Caltous is offline Junior Member

    Threadstarter


    Join Date
    Nov 2010
    Location
    Milwaukee, Wisconsin, United States
    Posts
    11
    Post Thanks / Like
    Mentioned
    0 Post(s)

    Re: 1994 Geo Tracker Build, a rather EXTREME one at that..

    Quote Originally Posted by the727kid View Post
    Ground should be a solid piece of sheet metal, that is on the main body of the car. (Not a piece that has been welded on). Also I would sand down the area around it to shiny bare metal.

    Anyways you will never get 40rms per channel out of that guy with a clean signal, 20 if your lucky. Noticed you stated most things by Peak.. bad way to go.
    quite right. i ground around the area i drilled into, cleaned it off and made sure there was no rust, dirt, or paint. you're right though, 40 watts per channel is pushing it, but then, i don't need a whole lot of power on this system. with everything hooked up, i barely have to turn it up halfway. the system wasn't built to be powerful, really. i don't listen to a lot of music with ultra low end, mostly heavy metal, so all i really need is that added attack, which i get in droves. like i said, i barely have to turn this up half way.
    thanks though! keep em coming!




  12. #12
    Hobbes Caltous's Avatar
    Hobbes Caltous is offline Junior Member

    Threadstarter


    Join Date
    Nov 2010
    Location
    Milwaukee, Wisconsin, United States
    Posts
    11
    Post Thanks / Like
    Mentioned
    0 Post(s)

    Re: 1994 Geo Tracker Build, a rather EXTREME one at that..

    Quote Originally Posted by B Hussein O View Post
    What are you talking about??? Thats the best ground you can get in a vehicle. If the "pro" that did your ground told you that, he is full of shit. Nice build, but I will have to strongly disagree in regards to the ground
    i was told if you use a ground longer than 18 inches long you run a big risk.




  13. #13
    the727kid's Avatar
    the727kid is offline CarAudio.com Veteran



    Join Date
    Jul 2006
    Location
    St. Pete, FL
    Posts
    2,941
    Post Thanks / Like
    Mentioned
    0 Post(s)

    Re: 1994 Geo Tracker Build, a rather EXTREME one at that..

    Quote Originally Posted by Hobbes Caltous View Post
    you're not supposed to use ground wires that long.
    That rule doesn't matter when you go straight to the source. Take a look at SPL vehicles, 17ft runs of grounds.



    Alarm: Viper 5902
    HU: Stock
    Front Stage:
    Tweeters: Image Dynamics CD1-Pro Mini Horns
    Mids: Sundown Neo Pro 8"
    Subs: (2) 15" Dayton HF ran IB
    Amps: (2) Kicker IX 500.4 (1) Kicker IX 1000.1
    Processor: JBL MS-8

  14. #14
    Annnarbor84's Avatar
    Annnarbor84 is offline Banned



    Join Date
    Nov 2008
    Location
    Live with your girl!!!
    Age
    32
    Posts
    8,623
    Post Thanks / Like
    Mentioned
    0 Post(s)

    Re: 1994 Geo Tracker Build, a rather EXTREME one at that..

    Quote Originally Posted by Hobbes Caltous View Post
    i was told if you use a ground longer than 18 inches long you run a big risk.
    Very wrong information right there.......




  15. #15
    Hobbes Caltous's Avatar
    Hobbes Caltous is offline Junior Member

    Threadstarter


    Join Date
    Nov 2010
    Location
    Milwaukee, Wisconsin, United States
    Posts
    11
    Post Thanks / Like
    Mentioned
    0 Post(s)

    Re: 1994 Geo Tracker Build, a rather EXTREME one at that..

    Quote Originally Posted by the727kid View Post
    That rule doesn't matter when you go straight to the source. Take a look at SPL vehicles, 17ft runs of grounds.
    that's interesting. very interesting actually, i'll have to give that some thought. thankfully replacing the ground shouldn't be too big a thing, since it's not under the rig itself, it's under the back seat.
    so, you're saying, if i run, a 4Ga wire aaaaaaall the way to the battery it'll make a BETTER ground than what i have now?
